6082-T6 Roof Lighting Aluminium Stage Truss System for Sale Spigot Truss

Brief introduction
520x760 mm is kind of heavy duty truss segment for medium and big events. It usually combined with 400x400mm box truss as pillars to construct the heavy duty roof or box truss system.

About the520x760x1000mm aluminum spigot truss segment

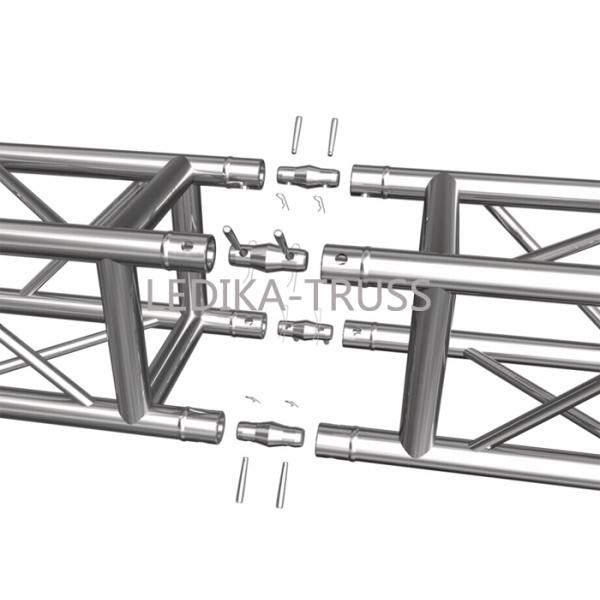

The 520 mm X 760 mm aluminum spigot truss is constructed with conical coupler connection and supply with the light-duty or medium duty truss as pillars to support the roof and box truss system.

Technical specification table

Remarks:

Loading capacity table

1. Loading figures only valid for static loads and spans with two supporting points
2. Spans must be supported at each end
3. If dynamic loads or wind loads are involved, or more supporting points are applied, contact a structural engineer or ITSC truss
4. Loading figures are based on German DIN standards
5. The self-weight of the trusses has already been taken into account
6. For spans longer than indicated and with a different loading set-up use kilo program
7. Loading tables triangle trusses only valid for apex-up or apex-down

Standard length
1m / 2m / 3m/ 4m/ (Other length custom-made)

Advantages
Compact, strength, versatility, low unit weight and easy to assembly with the box corner system, quick to install.

What can we do with this aluminum spigot truss?

Options

1. According to the loading capacity, it includes the light duty truss series whose sizes are of 230mm *230mm, 290mm*290mm, 390mm*390mm; The medium duty truss series are of 400mm*400mm, 500mm*500mm, 520mm*520mm, 500mm*600mm; The heavy duty truss series are of 670mm*670mm, 520mm*760mm,and 1100mm*600mm.
2. Normally the spigot truss length is 0.5-3M for each piece, the main tube is ¢ 50*3mm, the diagonals tube is 25*2mm, But if the square truss is 520*520mm, you can chose the main tube of 50*4mm with the diagonals of 30*2mm.
3. A variety kinds of truss series in our company is available according to the shape of the products, there are linear truss (Step truss), Triangle truss (Trio truss), Square truss (quatro truss) and Arc truss. Our aluminum truss thickness includes 4mm, 3mm, 2mm, 1.6 mm. All above are our normal sizes, and other sizes are available on request

Size Details:

Connection Way:
