Waterproof 210 - 225lm 5054 LED Module Lights With Lens IP68 CE ROHS Approved
Waterproof 210 - 225lm 5054 LED Module Lights With Lens IP68 CE ROHS Approved
Waterproof 210 - 225lm 5054 LED Module Lights With Lens IP68 CE ROHS Approved
Waterproof 210 - 225lm 5054 LED Module Lights With Lens IP68 CE ROHS Approved
Waterproof 210 - 225lm 5054 LED Module Lights With Lens IP68 CE ROHS Approved
Waterproof 210 - 225lm 5054 LED Module Lights With Lens IP68 CE ROHS Approved
Specifications
Brand Name :
Phenson
Model Number :
PS-5054U-3LED
Certification :
CE,ROHS
Place of Origin :
Shenzhen,China
MOQ :
1000pcs
Price :
Negotiable
Supply Ability :
5000,000pcs/month
Delivery Time :
5- 8days
Packaging Details :
200pcs/bag, 15bags/carton ,3000pcs/carton
Brightness :
210 - 225LM
IP rate :
IP68
Size :
66 * 19mm
Power :
1.5W
Viewing Angle(°) :
160
CRI :
80
Chip Material :
Epistar
Working voltage :
DC12V
Description

Waterproof IP68 Outdoor SMD 12V IP68 CE ROHS Korea Design 5054 Injection Led Light Module With Lens

Quick Details :

Type: LED Modules

Model Number:PS-5054U-3LED

Chip Material: AlGaInP

Emitting Color: Color RGB /Warm white/Cold white/red/green/blue/yellow/pink

Luminous Intensity: High Bright

Luminous Flux(lm): 210-225lm

Optical Attenuation(%): 2%

Power: 1.5W

Power Dissipation: 1.5W

Viewing Angle(°): 160

Color Rendering Index(Ra): 80

Color Temperature: 2700-20000K

Operating Temperature(℃):-40 - 60

Storage Temperature(℃):0 - 30

Place of Origin: Guangdong, China (Mainland)

Brand Name: Phenson

Certification: CE, RoHS,

Product name: PS-5054U-3LED

Color: White, red, blue, green, yellow, pink

Size:66*19mm

Voltage: DC 12V

IP Grade: Waterproof IP68

LED Type:5054

LED QTY:3Led

Application: Channel Letter

Lifespan:50000h

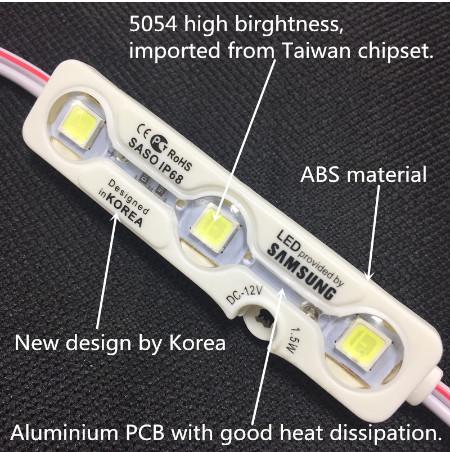

Feature :

1. High quality import chip, Top-encapsulation ,high brightness, small lighting failure.

2. High light effective; No light decay after working 1000Hrs;

3. better heat dissipation, low-power, long-life, maintenance-free;

4. Waterproof with ABS housing & Epoxy sealed;

Parameter :

Model No.
 PS-5054U-LED MODULE
Light sources 5054 SMD 3 pieces
Chip material AlGaInP
Input voltage DC 12V
Lumen 210-225LM
Power consumption 1.5W
IP rank IP68
Certification CE,RoHS

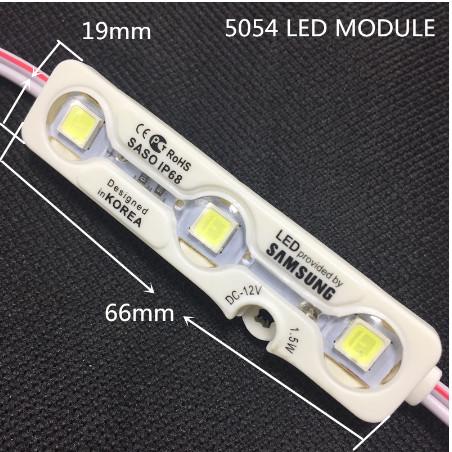

Dimension 66*19mm
Lifespan over 50000 hours
Color Warm white/cool white/red/green/bule/yellow
View Angle 120°
Operating temperature —40-60℃
Color temperature 2700-20000K
Optical attenuation 1000H≥1%
Color rendering index 80Ra
Warranty 3 years

Packaging & Delivery :

Packaging Details 200pcs/bag, 15bags/carton ,3000pcs/carton ;
Notice: Anti-static bag and carton package, also can be customized. And logo can be printed on carton.
Delivery Time 3-7days for normal order, can extra worker for your urgently order

Application :

Waterproof 210 - 225lm 5054 LED Module Lights With Lens IP68 CE ROHS Approved
