60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light
60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light
60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light
60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light
60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light
60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light
60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light
60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light
Specifications
Brand Name :
Phenson
Model Number :
PS-RL5730W60
Certification :
CE Rohs
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiable
Supply Ability :
50000pcs/month
Packaging Details :
10pcs per package
led qty :
60pcs 5730
Ic qty :
20pcs NU501 Constant current
Dimmension :
1000*17*12.5mm
Warranty :
3 years
Voltage :
DC12V/24V
Power :
14.4W
Description

60PCS Each Meter Waterproof 5730 LED Aluminum Light Bar , Rigid LED Strip Light

Description :

led qty:60pcs5730

input voltage:DC12V

power:14.4w

Ic qty:20pcs NU501 Constant current

Luminous:1100L(6000-6500K)

Dimension:1000*17*12.5mm

Product features:

This aluminum stripe lights divided into two kinds. One kind is single color constant current that this light adopts booster of

constant current IC integrated circuit. It has no pressure drop, no color difference, high brightness, low attenuation, good

heat dissipation, etc features than regular constant voltage LED stripes which greatly improve the quality of life and use.

Parameter :

Mode PS-RL5730W60
Input voltage DC12V DC24V
LED quantity 60PCS5730 60PCS5730
power 14.4W 14.4W
IC quantity 20PCS 20PCS
Luminous(6000-6500K) 1100LM 1100LM
Dimension(L*W*H) 1000*17*12.5mm 1000*17*12.5mm
IC mode NU501,Constant current D501,Constant current
IP Rank IP65
Working temperature -10°C~ 40°C

60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light

Dimensions:(uit:mm)

60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light

Constant current single color stripe connect pictures:

60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light

Multicolor aluminum light,input:DC12V, if length is 0.5meters,n=16PCS ,if length is 1meter,n=8PCS .

Attachment specification:1PCS stripe attaches two buckle.

Note:

1. Degree of cable thickness decides the largest real work electricity, light power and power loss.

2. When 2PCS SMD hard led stripes connect together,please do waterproof work with connecting parts.

3. When working, please don’t take electrostatic touch and maintenance.

4. When connecting stripes,can’t excess the largest quantity of connect led stripes

5. Please use qualified power to drive led light bars.

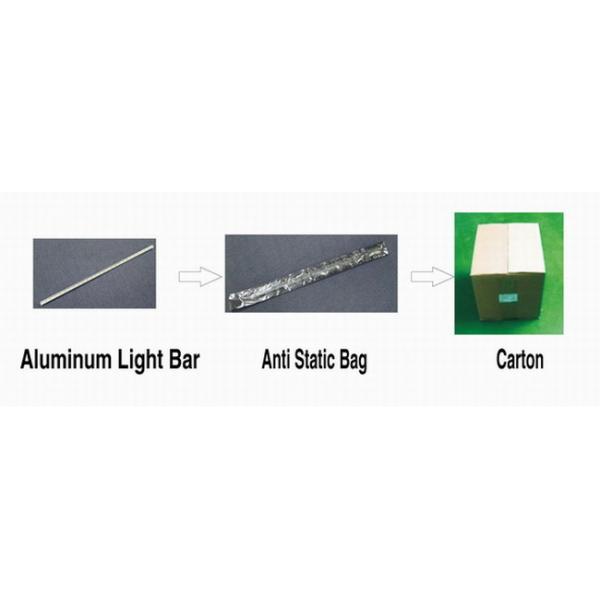

Packing diagram:

60 Led / M Waterproof 5730 Linear LED Light Bar , Rigid LED Strip Light
