Specifications
Brand Name :
phenson
Model Number :
15W COB LED Gimbal Downlight
Certification :
UL/TUV/SAA/CB/CE
Place of Origin :
china
MOQ :
5pcs
Price :
negotialble
Supply Ability :
20000pcs/month
Packaging Details :
20pcs per carton
View angle :
Horizontal 360º & Vertical 90º Directional
driver :
Lifud
Housing :
ADC12 Aluminum Housing , With reflector
dimmer :
Non-dim, Dali dim, 0-10v Dim, Triac dim are optional. Dimmer can be provided.
Lighting efficency :
80lm/w or 90lm/w
Certificate :
UL/TUV/SAA/CB/CE approved
warranty :
5 years
Brand :
Phenson
Description

4inch 15w 330 Degree Recessed Adjustable View Angle Gimbal Cree COB LED Ceiling Downlights

Feature :

15W COB LED Gimbal Downlight (360degree +90degree adjustable, Adjust different angle for different position)

1.Horizontal 360º & Vertical 90º Directional,

2.Driver: Lifud Driver

3.Housing: ADC12 Aluminum Housing , With reflector,

4.Non-dim, Dali dim, 0-10v Dim, Triac dim are optional. Dimmer can be provided.

5.AC200-240V or AC100-277V Voltage,

6.80 LM/Watt, 90LM/WATT.

7.Exact CCT , 2700K, 3000K, 4000K, 5000K,

8.High CRI>80,CRI>90,

9.5 Years Quality Warranty,

10.UL/TUV/SAA/CB/CE Certificate,

11.White and Black finish color.

Parameter:

Model LED Lumen Power Input Voltage (V) Beam Angle Size (mm) Cut Hole (mm)
PS-CA0103-6 COB CREE CXA1304 420lm 6W AC200-240V/AC100-277V 24° D85*H78 D78(3.07")
PS-CA0105-15 COB CREE CXA1512 1050lm 15W AC200-240V/AC100-277V 24° D130*H115 D120(4.72")
PS-CA0106-30 COB CREE CXA2520 2400lm 30W AC200-240V/AC100-277V 24/38/60° D165*H143 D157(6.18")
PS-CA0107-40 COB CREE CXA2530 3200lm 40W AC200-240V/AC100-277V 24/38/60° D190*H155 D175(6.89")

FAQ

1.Do LED Gimbal Downlight produce any heat?

LED Gimbal Downlight produce very little heat, yes, they get warm but you can run these LED Downlights for hours and still touch the fittings.
Halogen downlight in comparison produce a lot of heat and get very hot, a major point is that so much energy is wasted as halogen downlights loose a lot of energy in just the heat they produce where as LED Downlights nearly all the power used is turned in to useable light.

2.Are 15W LED Gimbal Downlights expensive to run?

In these times of energy bills getting higher LED Downlights are the most cost effective way to light an area.
The power draw compare to halogen, metal halide and even compact fluorescent types is a huge amount smaller.

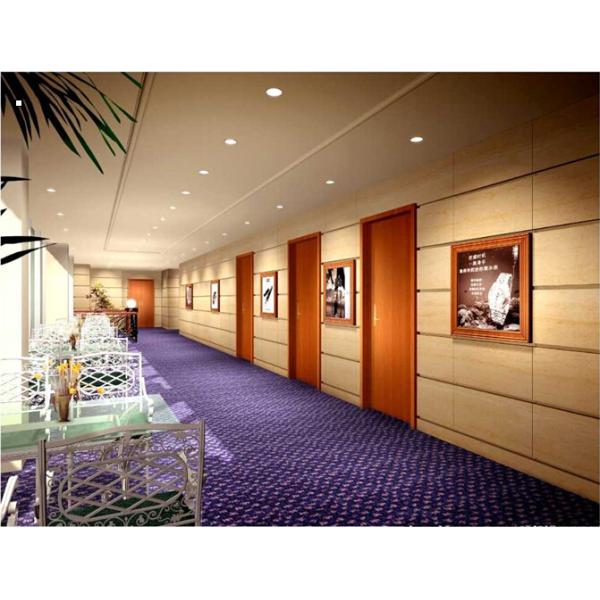

Application:

4 Inch 15w LED Illumination Lights

4 Inch 15w LED Illumination Lights
