Addressable Screen Display LED Pixel Panel / Ws2813 Digital Full Color LED Panel
Addressable Screen Display LED Pixel Panel / Ws2813 Digital Full Color LED Panel
Addressable Screen Display LED Pixel Panel / Ws2813 Digital Full Color LED Panel
Addressable Screen Display LED Pixel Panel / Ws2813 Digital Full Color LED Panel
Addressable Screen Display LED Pixel Panel / Ws2813 Digital Full Color LED Panel
Addressable Screen Display LED Pixel Panel / Ws2813 Digital Full Color LED Panel
Specifications
Brand Name :
Phenson
Model Number :
Digital flexible led screen display 8 * 8 cm
Certification :
CE Rohs
Place of Origin :
Shenzhen China
MOQ :
5m
Price :
negotiable
Supply Ability :
1000000m/month
Delivery Time :
8-15 days
Packaging Details :
20pcs/carton
IC type :
WS2813 IC built in
Power :
19.2W /M
LED chip :
Epistar
LED Type :
5050
Voltage :
DC 5V
Color :
Full dream rgb colors
Description

Ws2813 Addressable Pixel Flexible SMD 5050 Flex Screen Display - Digital Full Color LED Panel

Feature :

1. ws2813 led strip, breakpoint continue, one led broken, no affect other the behind led work.

2. One WS2813 IC control ONE LED Chip;

3. Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color;

4. With 4pin LED lamps for the digital strip

5. Controller: we usually select SD controller, you also could use DMX controller, DMX decoder, This product can achieve effects and animations by controller , for example RGB seven colors gradual change, jumping change, Fading , flashing, color chasing, color sliding, Fading, Dimming mode etc.

6. This is the highest resolution for the moment

7. Controller, Power supply are available

8. The product is widely used in building outline lights, entertainment quasi-decorative lighting, advertisement decorative lighting and so on.

9. Low voltage DC power supply safety, Convenience.

Digital Full color LED Panel WS2813 Addressable 8*8 LED Panel description :

1. WS2813 4 Pin LED installed .8*8Pixel.

2. Only Black PCB Color, flexible PCB that can be gently bent and curved surface.

3. DC5V inputted, do not exceed DC6V or short circuit, no polarity product.

4. 4Pin JST sm connector soldered 2 extra wire for powering

5. Nowaterproof IP62

6. Controller:SD controller, micro controller

7. being able to individually control each LED.

Parameter :

Model No. Pixel rgb screen panel 8cmx8cm
Control type: External control (by controllers)
LEDs 68pcs SMD5050 RGB LEDs
IC 64pcs WS2813 IC built in SMD5050 RGB LED
Color Full dream rgb colors
Power 19.2W/ meter max
Voltage DC 5V input

Application :

Indoor display and outdoor display

Advertisment

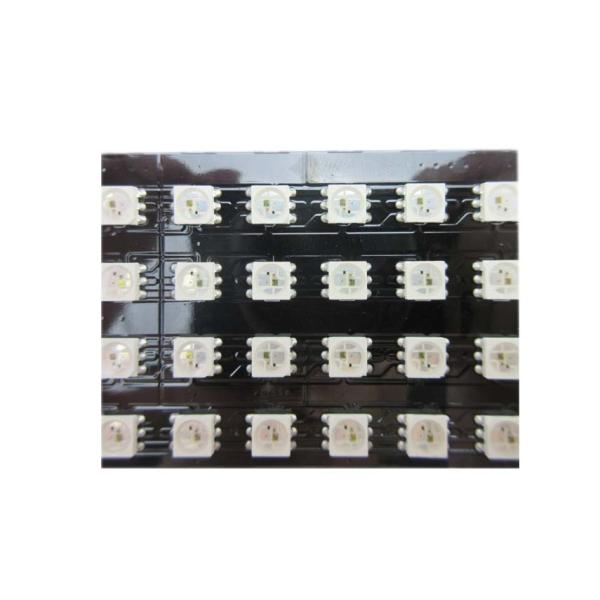

Picture :

Addressable Screen Display LED Pixel Panel / Ws2813 Digital Full Color LED Panel
