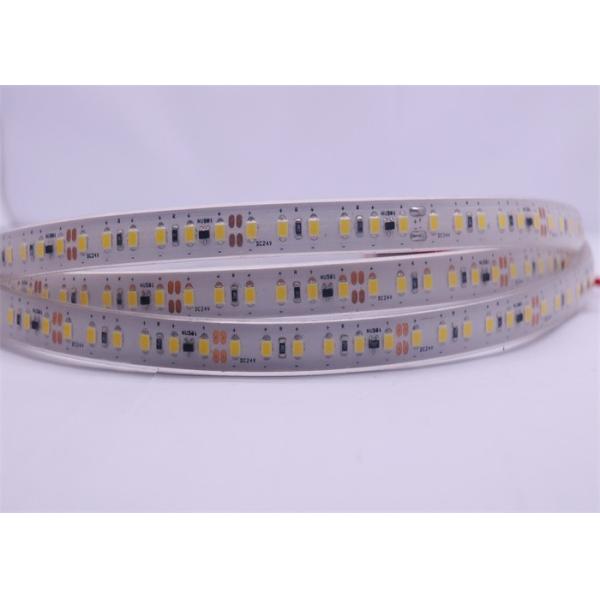

Constant Current 2835 LED Flex Strip Rope Light 120 LED / M 20m / Reel MAX
Constant Current 2835 LED Flex Strip Rope Light 120 LED / M 20m / Reel MAX
Constant Current 2835 LED Flex Strip Rope Light 120 LED / M 20m / Reel MAX
Constant Current 2835 LED Flex Strip Rope Light 120 LED / M 20m / Reel MAX
Specifications
Brand Name :
Phenson
Model Number :
PS28CW024120-CC
Certification :
CE,ROHS
Place of Origin :
Shenzhen Guangdong China
MOQ :
5meters
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10,0000m
Delivery Time :
7~10 days
Packaging Details :
5m/roll, 500m/carton GW 15kg
Brand name :
Phenson lighting
Power consumation :
25W/m
Color :
WW CW NW
Lighting source :
SMD 2835
LED type :
Epistar2835 25-27LM
PCB width :
10mm and 3ounce
Warranty :
3 years
Working voltage :
24VDC
CRI :
80+ or 90 available
Light source :
Epistar chip
PCB color :
white and 10mm
IP class :
IP20 /IP65/IP67/IP68
Description

Constant Current 2835 120LED/M Rope light strip IP20 and IP68 20m/reel MAX

Product Description

1, IC driver used on this constand current led strip, no voltage drop, and max length can be 20m/reel .better performance on light effects and color consistency .

2, Our SMD LED use copper base and gold wire which provide good heat dispersion, long life span and low Luminous Decay

3, Our flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.

4, We always require same bin number SMD LEDs for different production batches for the same customer.

5, We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch. Normally 5 MacAdam LED is +/-100K

6 We can produce 3 MacAdam LED Strip/tape as customer request.

Product Specification

Ordering Code Colors Available LED features LED
Q’ty/m		 Typ Lum. intensity (lm/m) PCB Voltage
(VDC)		 Max Power
(W/m)		 Waterproof Grade available (IP)
PS28CW024120-CC Cool white 6000K~6500K (CCT) 120 2500lm White color
width 10 mm 3ounce		 24VDC 24 IP20
/(IP65/IP67/IP68)
PS28WW024120-CC Neutral white 4000K~4500K (CCT) 2500lm
PS28NW024120-CC Warm white 3000K~3500K (CCT) 2500lm

Picture Show

Constant Current 2835 LED Flex Strip Rope Light 120 LED / M 20m / Reel MAX

Waterproof Grade

IP20:Non-waterproof, available indoor.

Ip65:silicone glue or epoxy resin, can prevent the splashing water invade, available indoor.

IP67:Silicone tube, hollow, can prevent the big wave water invade; available indoor and outdoor.

IP68:Silicone tube +silicone gel or silicone extrusion molding, completely prevent dust and water invade; available indoor,outdoor and water

Constant Current 2835 LED Flex Strip Rope Light 120 LED / M 20m / Reel MAX

Accessories

Constant Current 2835 LED Flex Strip Rope Light 120 LED / M 20m / Reel MAX

Constant Current 2835 LED Flex Strip Rope Light 120 LED / M 20m / Reel MAX

Constant Current 2835 LED Flex Strip Rope Light 120 LED / M 20m / Reel MAX
