0.72W Diameter 26mm LED Pixel Lamp UCS1903 With Frosted Cover Housing
0.72W Diameter 26mm LED Pixel Lamp UCS1903 With Frosted Cover Housing
0.72W Diameter 26mm LED Pixel Lamp UCS1903 With Frosted Cover Housing
0.72W Diameter 26mm LED Pixel Lamp UCS1903 With Frosted Cover Housing
0.72W Diameter 26mm LED Pixel Lamp UCS1903 With Frosted Cover Housing
0.72W Diameter 26mm LED Pixel Lamp UCS1903 With Frosted Cover Housing
Specifications
Brand Name :
Phenson
Model Number :
26mm diameter UCS1903 IC LED Pixel Module
Certification :
CE Rohs
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Supply Ability :
50kk/month
Packaging Details :
0.8kg per batch
IC type :
UCS1903
Voltage :
DC12V
Color :
Full Color
IP grade :
IP68
Power :
0.72W
Diameter :
26mm
Description

0.72W Diameter 26mm UCS1903 LED Pixel Module With Frosted Cover

Quick Detail :

Type: 26mm diameter UCS1903 IC LED Pixel Module

Model Number: PS-26mm-UCS1903-F-12V

Chip Material: AlGaInP

Emitting Color: Tri-Color(Red-Blue-Green)

Luminous Intensity: R(4200)G(9600)B(4000) MCD

Luminous Flux(lm): 120 lm

Optical Attenuation(%): 5

Power: 0.72w

Power Dissipation: 0.72W

Viewing Angle(°): 120

Color Rendering Index(Ra): 80

Color Temperature: RGB

Operating Temperature(℃): -20 - 60

Storage Temperature(℃): -20 - 60

Place of Origin: Guangdong, China (Mainland)

Certification: CE, RoHS

Features and Benefits :
1. Adopts high quality SMD5050 LED as lighting source.

2. With good protection level. can achieve IP68.

3. each module as one pixel, takes 3 DMX channels, RGB full color, can be controlled individually,

4. It is easy installation, screw fixed.

5; good looking, made with the injection machine.

6; using the transparent cable, with good cold resistance ability

Parameter :

Part No PS-26mm-UCS1903-F-12V
Color full rgb color(UCS1903 IC),24bit,256 gray scale
LED Qty 3pcs 5050 SMD RGB LED
Input Volt DC12V
Max current 120MA
Max Power 0.72w
Driver method Constant current circuit
Dimension 26mm diameter(open hole)
Viewing angle 100-120degree
Protection Level IP68
Certification CE and RoHS
Standard connection each pixel with a 3pin JST male input and female output
Standard wire length 100mm
Housing frosted cover
Fixed way 26mm diameter open hole
Lifespan 35000 hours
Warranty 3years
Operation temperature -40-50
Store temperature -50-60

Application:

Back lights, Lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path and contour marking; etc.

They can be a good choice for advertising, Led screen, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.

Packing :

Selling Units: Multiple of 50
Package size per batch: 1X1X1 cm
Gross weight per batch: 0.8 KG
Package Type: by carton

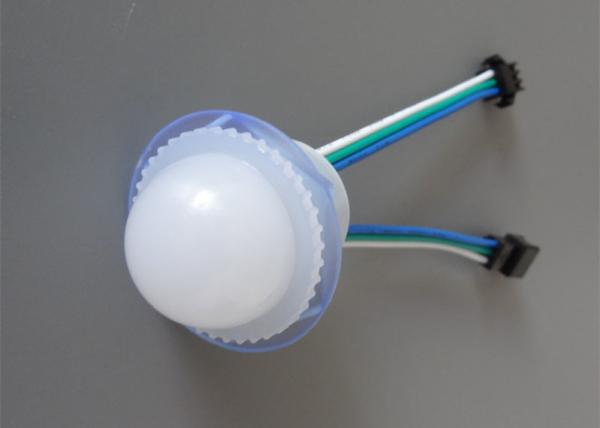

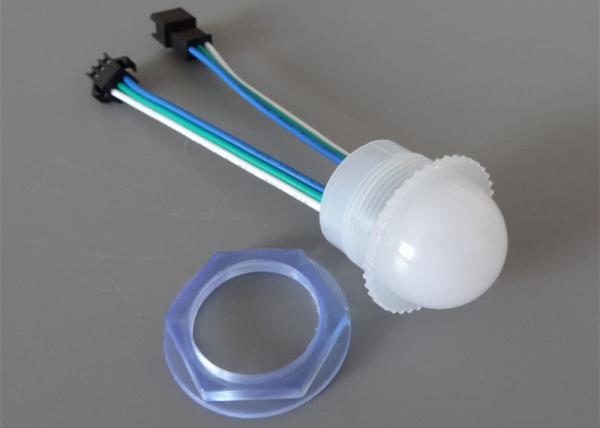

Picture :

0.72W Diameter 26mm LED Pixel Lamp UCS1903 With Frosted Cover Housing
