75W Single Output LED Driver Power Supply For Mechanical And Electrical Equipment
75W Single Output LED Driver Power Supply For Mechanical And Electrical Equipment
75W Single Output LED Driver Power Supply For Mechanical And Electrical Equipment
75W Single Output LED Driver Power Supply For Mechanical And Electrical Equipment
75W Single Output LED Driver Power Supply For Mechanical And Electrical Equipment
75W Single Output LED Driver Power Supply For Mechanical And Electrical Equipment
Specifications
Brand Name :
Meanwell
Model Number :
LRS-75 series
Certification :
UL/CUL, TUV,CCC
Place of Origin :
Guangzhou,Guangdong ,China
MOQ :
1pcs
Price :
US $1-9 / Piece
Payment Terms :
T/T, L/C, Western Union
Packaging Details :
0.3Kg ; 45pcs/ 14.5Kg/ 0.77CUFT
Product brand :
MEANWELL
Output Power :
75W
Output Type :
Single
Input Voltage :
85 ~ 264VAC 120 ~ 373VDC
Output Voltage :
5/12/15/24/36/48V
Output Current :
14/6/5/3.2/2.1/1.6A
The shell material :
Metal
Warranty :
5 years
Demension :
199 63 * *35.5mm (L*W*H)
Efficiency :
86.5~91.5%
Working tempera :
-40+85℃
Output Frequency: :
50/60Hz
Description

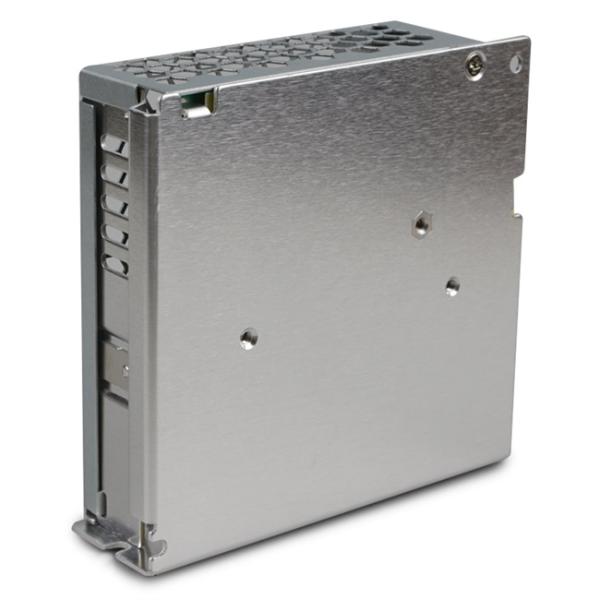

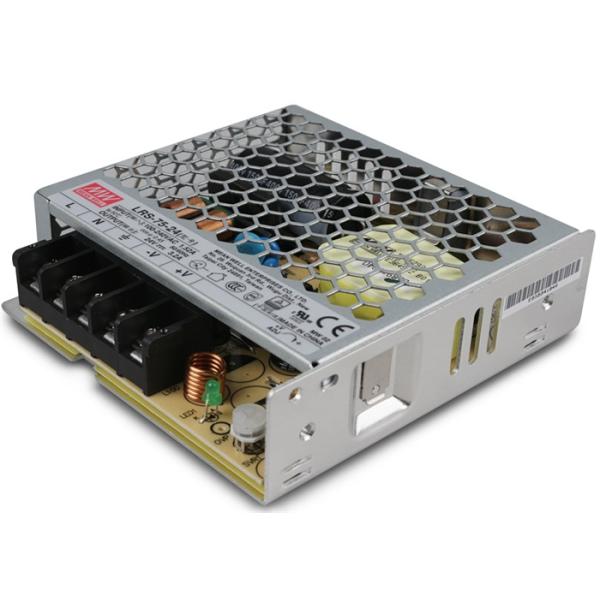

Mean Well 75W Single Output Switching Power Supply LRS-75 For LED Lighting

Description

LRS-75 series is a 75W single-output enclosed type power s

upply with 30mm of low profile design. Adopting

the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V,

36V and 48V

In addition to the high efficiency up to 91.5%, the design of metallic mesh case enhances the heat dissipation

of LRS-75 that the whole series operates from -30 °C through 70 °Cunder air convection without a fan.

Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to

Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. LRS-75 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as

TUV EN60950-1,EN60335-1,EN61558-1/-2-16, UL60950-1

and GB4943. LRS-75 series serves as a high price-to-performance power supply solution for various industrial applications.

Features

* Universal AC input / Full range

* Withstand 300VAC surge input for 5 second

* No load power consumption<0.2W

* Miniature size and 1U low profile

* High operating temperature up to 70°C

* Protections: Short circuit / Overload / Over voltage

* Cooling by free air convection

* Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances

* Operating altitude up to 5000 meters (Note.8)

* Withstand 5G vibration test

* High efficiency, long life and high reliability

* LED indicator for power on

* 100% full load burn-in test

* 3 years warranty

75W Single Output LED Driver Power Supply For Mechanical And Electrical Equipment

75W Single Output LED Driver Power Supply For Mechanical And Electrical Equipment

Applications

* Industrial automation machinery

* Industrial control system

* Mechanical and electrical equipment

* Electronic instruments, equipments or apparatus

* Household applications
