Constant Voltage LED DMX Decoder 5 - 24V DC 1 / 3 / 6 / 24 Channel High Output
Constant Voltage LED DMX Decoder 5 - 24V DC 1 / 3 / 6 / 24 Channel High Output
Constant Voltage LED DMX Decoder 5 - 24V DC 1 / 3 / 6 / 24 Channel High Output
Constant Voltage LED DMX Decoder 5 - 24V DC 1 / 3 / 6 / 24 Channel High Output
Specifications
Brand Name :
Phenson
Model Number :
PS-V5-M+r8-2
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Supply Ability :
100,000pcs
Packaging Details :
Product size: L114×W38×H20mm Net weight: 63g
Cover material :
ABS
Item type :
dmx decoder
Max. Load Power :
5V<360W 12V<864W 24V<1728W
Working Voltage :
DC5-24V
Output type :
PWM constant voltage
Input signel :
DMX512
Working current :
24CH,3A/CH
Warranty :
5 years
Product size :
L114×W38×H20mm
Description

24 Channel Constant Voltage DMX512 Decoder 5-24VDC Decode 1 / 3 / 6 / 24 DMX channel

Technical parameters
● Input voltage: 5-24VDC
● Input signal: DMX512
● Output type: PWM constant voltage
● Output current: 24CH,3A/CH
● Output power: 360-1728W
● Decode number: 1/3/6/24 DMX Channel
● Grey levels: 4096/CH
● Dimming range: 0-100%
● Working temperature: -30℃~55℃
● Dimension: L160×W88×H60mm
● Weight: 306g

Summary
● Din rail mounted DMX512 constant voltage decoder, 24 channel output, 3A per channel.
● With standard DMX512 compliant interface, DMX address can be set easily and shown on the digital numeric display.
● It also can work as stand-alone 24ch RGB controller, have 4 kinds dynamic mode.
● It also can work as stand-alone 24ch dimming controller, each channel adjust brightness independently, and save up to 8 groups brightness.
● Work with power repeater to expand output unlimitedly.

Constant Voltage LED DMX Decoder 5 - 24V DC 1 / 3 / 6 / 24 Channel High Output

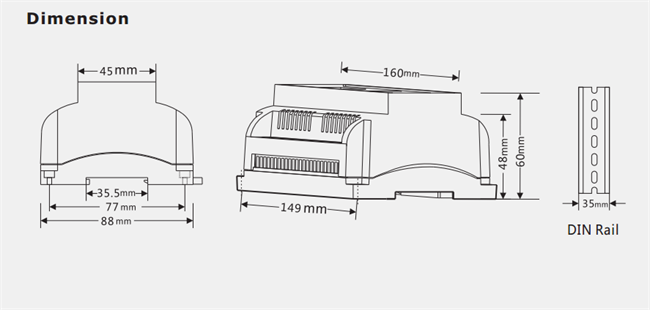

Dimension

Constant Voltage LED DMX Decoder 5 - 24V DC 1 / 3 / 6 / 24 Channel High Output

Wiring diagram

Constant Voltage LED DMX Decoder 5 - 24V DC 1 / 3 / 6 / 24 Channel High Output
