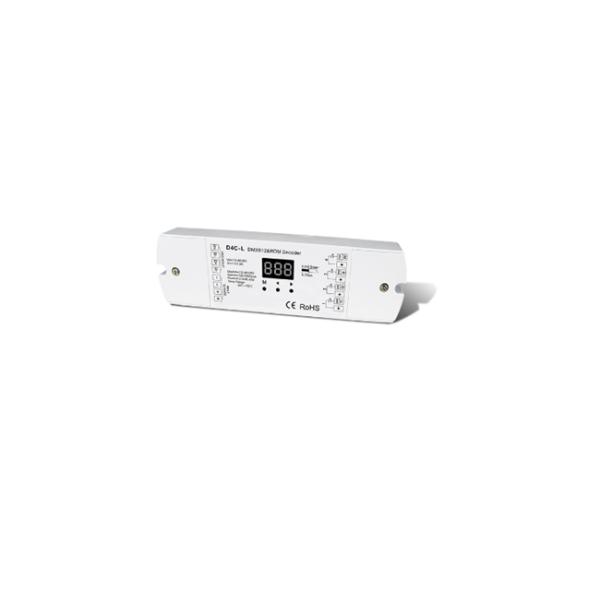

4 Channel DMX LED Driver Constant Current / Dmx LED Strip Controller For RGB Lamp
4 Channel DMX LED Driver Constant Current / Dmx LED Strip Controller For RGB Lamp
Specifications
Brand Name :
Phenson
Model Number :
D4C-L Constant Current
Certification :
CE,ROHS
Place of Origin :
Shenzhen Gugangdong China
MOQ :
1pcs
Price :
Negotiable
Supply Ability :
100,000pcs
Packaging Details :
Product size: L97*W33*H18mm Net weight: 38 g
Receiving range :
30m
Max. Load Power :
192W
Working Voltage :
12-48VDC
Output Current :
4CH,150mA-1800mA/CH
Input Signal :
DMX512
Working temperature :
-30℃~55℃
Warranty :
3 years
Product size :
L97*W33*H18mm
Color :
White
Description

4 Channel Constant Current DMX Controller LED Strip DMX Decoder

Production Description

● Mini style 4A 3CH PWM constant voltage controller.
● Default as RGB controller, need match RGB remoter, create colorful static or dynamic effect.
● Can also be used as color temperature or dimming controller, good compatibility.
● Full compatibility with a variety of single color, dual color and RGB remoters.
● PWM achieve 4096 levels flicker-less dimming.
● When control RGB lamp, built in 30 change mode optional.
● Adopt 2.4GHz wireless technology, can accept up to 10 remoters control.
● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working
with WiFi-Relay controller.
● Work with power repeater to expand output unlimitedly.

Technical Parameters

● Input voltage 12 24VDC
● PWM constant voltage Output type
● 3CH, 4A/CH Output current
● 144-288W Output power
● Grey levels: 4096/CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃
● L97×W33×H18mm Product size
● Net weight: 38g

4 Channel DMX LED Driver Constant Current / Dmx LED Strip Controller For RGB Lamp

Dimenson

4 Channel DMX LED Driver Constant Current / Dmx LED Strip Controller For RGB Lamp

Instruction

4 Channel DMX LED Driver Constant Current / Dmx LED Strip Controller For RGB Lamp

Pachaging & Shipping

Payment Terms:
1. Payment: T/T, Western Union, PayPal
2. MOQ: 20pcs
3. Warranty : 5 years

Shipping

1.By express, such as FedEx/DHL/UPS/TNT
2. By Air or by Sea for batch goods
3. Customers specifying freight forwarders or negotiable shipping methods!
