B102 SMD3030 120lm 3000W Diffuse Reflector Light Strip
B102 SMD3030 120lm 3000W Diffuse Reflector Light Strip
B102 SMD3030 120lm 3000W Diffuse Reflector Light Strip
B102 SMD3030 120lm 3000W Diffuse Reflector Light Strip
B102 SMD3030 120lm 3000W Diffuse Reflector Light Strip
B102 SMD3030 120lm 3000W Diffuse Reflector Light Strip
Specifications
Brand Name :
Phenson
Model Number :
PS-B102
Certification :
CE,ROHS
Place of Origin :
Shenzhen,China
MOQ :
100pcs
Payment Terms :
Western Union, T/T
Delivery Time :
7~10 days
Material :
6063 aluminum
Working voltage :
AC110-280V
Beam angle :
175°
Color temperature :
9000-12000K
Lumen/Heart :
120lm
Length :
495mm/578mm/743mm
LED Qty :
6pcs/7pcs/9pcs
Protection grade :
IP20
LED source :
SMD3030
Produce name :
LED backlight bar
Thickness :
1.2mm
Warranty :
2 years
Application :
led advertising lightbox
Description

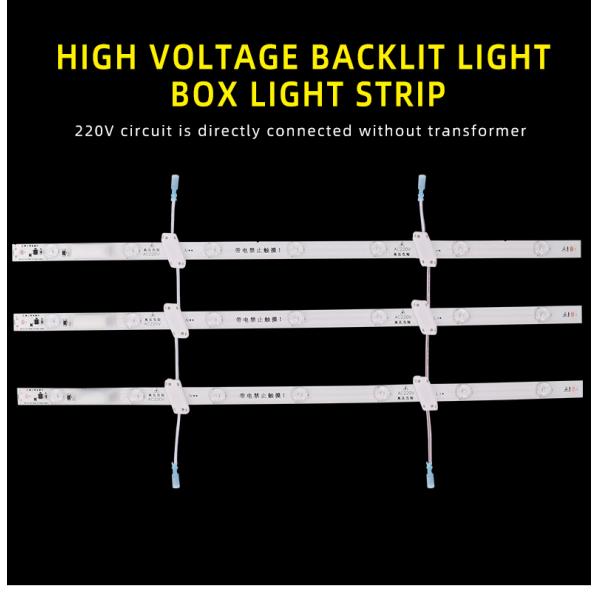

LED High Pressure Diffuse Reflector Light Strip B102 3000W Without Power Continuation​

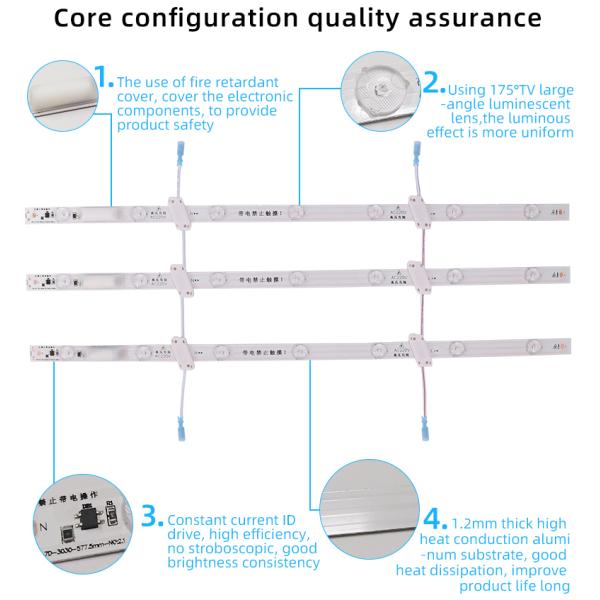

Product features,

1. Ac110v-280v mains power input, no switching power supply,
constant current IC drive, high efficiency, no strobe, good brightness
consistency.
2. The use of fire retardant cover, cover the electronic components, to
provide product safety.
3. The light source is SMD3030, which encapsulates three 10*30
luminescent chips with high brightness, low light decay, good color
and long life.
4. 175°TV large Angle diffuse reflection optical lens, uniform light
effect without macular.
5. High thermal conductivity aluminum substrate with a thickness of
1.2mm provides reliable heat dissipation for light source and
improves product life.
6. 3000W without power continuation, high power efficiency, easy
installation.

Part No. CCT Working voltage LED source W/pcs Lm/Heart Length(mm) LED Qty
PS-B102-6D 9000-12000K AC110-280 SMD 3030 6 120 495 6pcs
PS-B102-7D 9000-12000K AC110-280 SMD 3030 7 120 578 7pcs
PS-B102-9D 9000-12000K AC110-280 SMD 3030 9 120 743 9pcs
PS-B102-11D 9000-12000K AC110-280 SMD 3030 11 120 908 11pcs
PS-B104-12D 9000-12000K AC110-280 SMD 3030 12 120 990 12pcs
