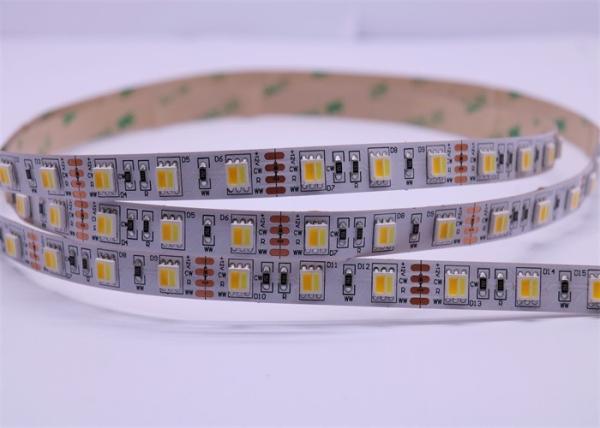

12V DC 5050 RGB LED Strip Lights , 2700K-6500K 620-630NM LED Lighting
12V DC 5050 RGB LED Strip Lights , 2700K-6500K 620-630NM LED Lighting
Specifications
Brand Name :
Phenson
Model Number :
PS50WWR012060IP20
Certification :
CE,ROHS
Place of Origin :
Shenzhen Guangdong China
MOQ :
5meters
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10,0000m
Delivery Time :
7~10 days
Packaging Details :
5m/roll, 500m/carton GW 15kg
Application :
hotel ,house
LED color :
CW+WW +Red
LED light :
CW+WW +Red
Lighting source :
SMD 5050
LED type :
5050 20-22LM
Wattage :
15W/m
Warranty :
3 years
Working voltage :
12VDC
LED qty :
60led/m
PCB width :
10mm
Description

Color Changeable 12VDC 5050 CW WW Red 2700K-6500K 620-630NM Strip Light 60LED/M

1) LED chip——SMD5050 CW+WW+Red.

2)Standard Reel Length: 5meter/roll, also can be customized.

3)Cutted: you can cut this stuff pretty easily with wire cutters,

4)Power consumption: theory power is 15W/M, but the really power just about 12W/M.

5)Driver used:12VDC,6 led cuttable.

6)Adhesive tape: non-waterproof: with 3M adhesive on back side for sticky;

waterproof: screw+silicon clip, or 3M adhesive back side.

Product description:

DC12V, 5050 , 60 LEDs/m
Product:5050 DC12V strip
Dimension: L5000mm*W10 mm*H0.25mm
LED quantity: 300 SMDs/pcs, 60 5050 SMDs/m
Thickness of PCB: 0.25mm
Working voltage: DC12V
Power dissipation: 15W/m
Viewing angle: 120 degree

Product specification:

Ordering Code Colors Available LED features LED
Q’ty/m		 PCB Voltage
(VDC)		 Max Power
(W/m)		 Waterproof Grade available (IP)
PS50WWR012060IP20 CW+WW+RED 20~22lm 60 10mm white 12VDC 15W

IP20

12V DC 5050 RGB LED Strip Lights , 2700K-6500K 620-630NM LED Lighting

12V DC 5050 RGB LED Strip Lights , 2700K-6500K 620-630NM LED Lighting

FEATURES:

1). Low power consumption.

2). Every 3 LEDs can be cut with the marks, then re-join, “+,-”

3). Operating temperature: -40 to +50 degree Celsius

4). Match Power supplyer adapter, RGB Controller, Connector,

5). High luminous.

6). Lower heating during operation

7). Continuous length with the quick connector

8). Reel peaking and strong adhesive back, 3M glue tape sticked attached, easy installation,

9). Cuttable every three LEDs to provide convenient installation with lesser illumination costs

10). Major reduction in power costs, low power consumption and high intensity.
