High Density FOB COB LED Strip Light 180 Degree Beam Angle 15W Low Light Decay
High Density FOB COB LED Strip Light 180 Degree Beam Angle 15W Low Light Decay
High Density FOB COB LED Strip Light 180 Degree Beam Angle 15W Low Light Decay
High Density FOB COB LED Strip Light 180 Degree Beam Angle 15W Low Light Decay
High Density FOB COB LED Strip Light 180 Degree Beam Angle 15W Low Light Decay
High Density FOB COB LED Strip Light 180 Degree Beam Angle 15W Low Light Decay
Specifications
Brand Name :
Phenson
Model Number :
PS-COB-528
Certification :
CE,ROHS
Place of Origin :
Shenzhen Guangdong China
MOQ :
5meters
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10,0000m
Delivery Time :
7~10 days
Packaging Details :
5m/roll, 500m/carton GW 15kg
Product Name :
COB LED Strip Light
Luminous efficiency :
107LM / W
Chip Material :
InGaN
View angle :
180°
Cuttable :
22.73mm / 45.45mm
Wattage :
15W / m
Warranty :
3 years
Working voltage :
24V DC / 12VDC
LED qty :
528 led / m
PCB width :
10mm
Color Available :
Warm White Cool White
CRI :
CRI 80,CRI 90 available
Description

High Density And Brightness FOB COB LED Strip Lights With 180 Degree Beam Angle 15W​

Product features,
1. Adopt Brand Led Chip,high Brightness, Low Light Decay.
Lifespan More Than 30000 Hours.
2. Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow.
3. All of Materials Are Accord With Rohs Standards.
4. Easy to Install and Preserve;can Be Bent Freely; With 3m Adhesive Tape On the Backside.
5. High Color Efficiency, Uniform Illumination.
6. Beam Angle 180°.
Part NO: PS-COB-528
LED Qty: 528 PCS
CRI (RA) 80/90
Input Voltage: DC24V / 12
Watts: 15W
Luminous Flux: 107LM / W
Color: 2700 / 3000 / 4000 / 6000K
PCB color: White
IP Grade: IP20
Operating Temperature: .-25 to 45℃
Beam Angle: 180 Degree
Certification: CE; RoHS
Max Run: 5M
Min Run: 24V 45.45mm
12V 22.73mm
Dimension: 5000 x 10 x 2.2mm

Product Details,

High Density FOB COB LED Strip Light 180 Degree Beam Angle 15W Low Light Decay

High Density FOB COB LED Strip Light 180 Degree Beam Angle 15W Low Light Decay

01. RESISTANCE
Using SMD Resistors 128 and the Unique Arrangement
To Better Protect the Light Emtting.

02. 18 AGW PURE COPPER WIRE
Welding is Firm, Good Overcurrent PVC Wire.

03. SOFTNESS
The Light Belt is Based on a Very Soft FPC Which Can
Be Flexed and Will Not Be Broken.

04. CHIP
Without Any Light Dot or Spot. Light Soft, No Dazzling.
Arbitrarily Bending: Flip Chip Smaller Bendable Angle,180 Big View Angle.

High Density FOB COB LED Strip Light 180 Degree Beam Angle 15W Low Light Decay

SAFETY INFORMATION,

· Please Consult an Electrician Before Doing Any Electrical Worker.
· the Strip and Its Components Cannot Be Mechanically Pressed.
· Correct Electrical Polarity Needs to Be Addressed.
· Pay Attention to ESD Precautions During Assembly.
· Installation Should Be Done by an Electrician.

STORAGE CONDITIONS
· The LEDs Should Be Kept at ≤86°f and ≤70%RH.
· When Storing the LEDs Use Moisture Proof Packaging.

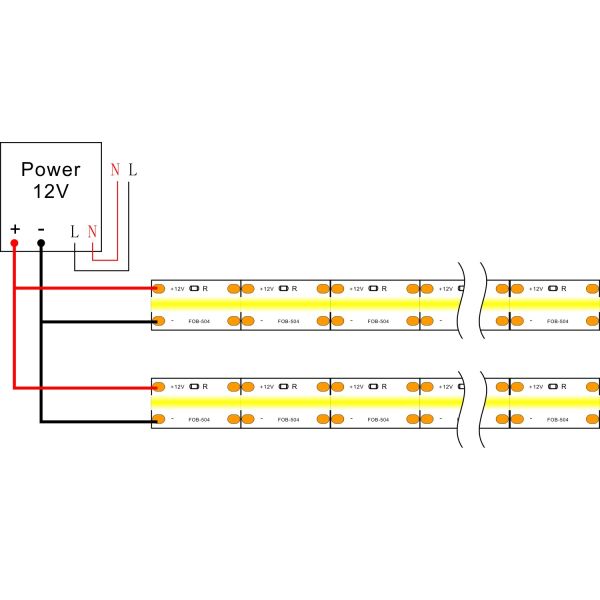

Connect Drawing,

High Density FOB COB LED Strip Light 180 Degree Beam Angle 15W Low Light Decay

Advantages,

  1. Fluorescent glue material with COB package technology,without any led supporter,only Led chip emitting,and better heat-resistance PCB
  2. High density and high brightness and worklife is over 2.5 ten thousand hours.
  3. 180 degrees emitting and better lighting effect.
  4. More flexible and easy to install with 3M glue tape

High Density FOB COB LED Strip Light 180 Degree Beam Angle 15W Low Light Decay
