Color Mixing COB LED Lens Viewing Angle 15 Degree High Performance
Color Mixing COB LED Lens Viewing Angle 15 Degree High Performance
Specifications
Brand Name :
Wisertop
Model Number :
WT-25@12-15COBL4-C2
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PMMA
Lens type :
TIR Lens
Efficiency :
93%
Certificates :
Rohs
Working temperature :
-40°C~+70°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description

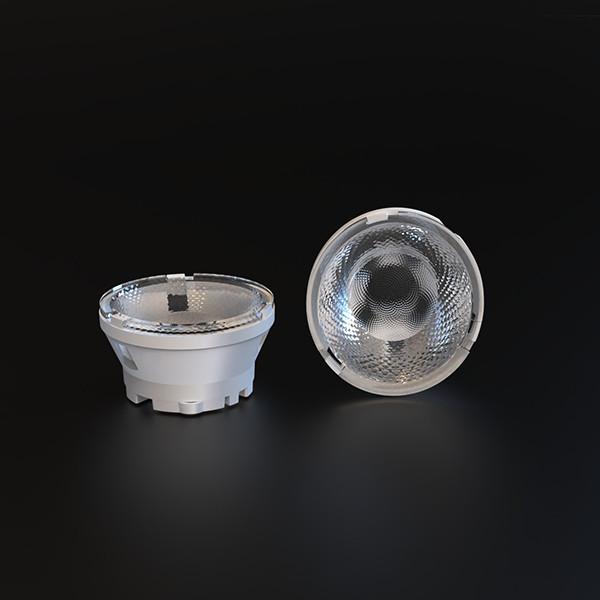

Color mixing Lens viewing angle 15° COB lens PMMA material smart lamp high performance diameter 25mm

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PMMA all available

Lens features:

● It has excellent color mixing characteristics and is compatible with a variety of two-color chip
arrangements and some multi-color arrangement light sources.
● Lamp color drift is small after lens; Single color light source color drift is no more than 0.5SDCM after
lens, for example, light source fill in 2 SDCM, after lens no more than 2.5SDCM.
● The light angles at different view are clearly distinguishable.
● Soft and comfortable auxiliary lighting characteristics; no light exposure in the center of the spot, no
stray light after light be cut off, clean and comfortable.
● The interception of light is natural, lamp fit space better

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

Specifications
Part no Light-emitting surface FWHM Size (mm) Typ.eff Material
WT-25@12-M15COBL4-C2 ¢3/¢4mm COB 15° φ24.8×12.5 93% PMMA
WT-25@12-M24-COBL4-C2 ¢4mm COB 24° 88% PC
WT-25@12-M36-COBL4-C2 ¢4mm COB 36° 88% PC

Color Mixing COB LED Lens Viewing Angle 15 Degree High PerformanceColor Mixing COB LED Lens Viewing Angle 15 Degree High Performance

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
