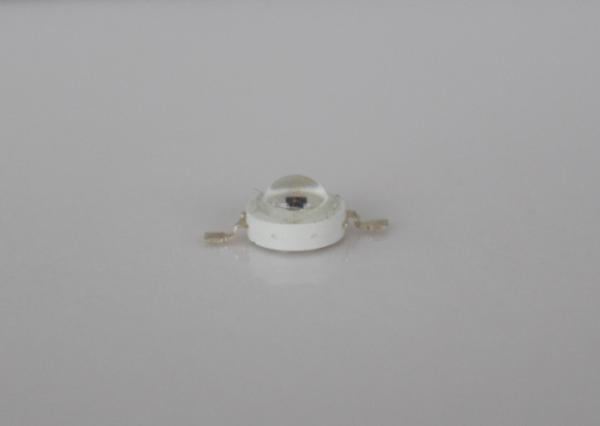

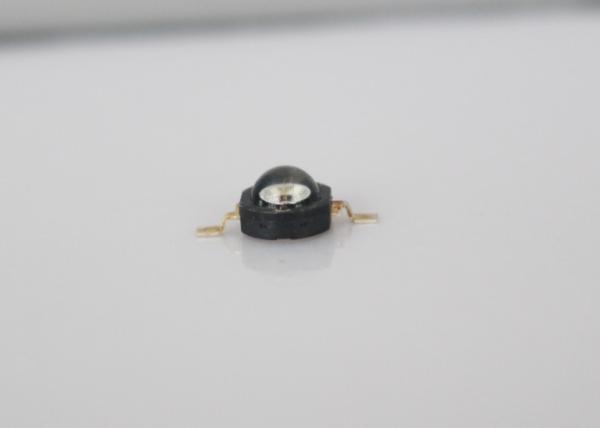

730nm Peak Emission Wavelength Emitting UV LED Diode 1W/3W High Power

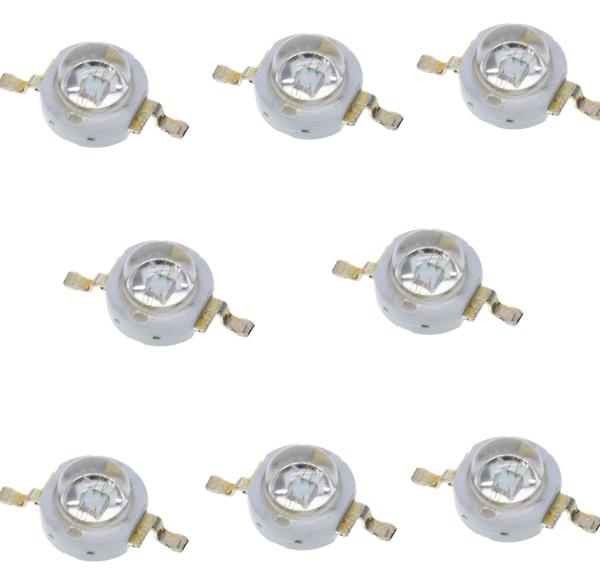

High Power ​ 730nm UV LED Diodes

Features:

1. High power LED type.
2. Small package with high efficiency.
3. High flux output and high luminance.
4. Instant light (less than 100ns).
5. Very long operating life (up to100k hours).
6. Low voltage DC operated.
7. Designed for high current operation.
8. Low thermal resistance.
9. Compatible with automatic placement equipment.
10. Wide viewing angle: 130°.
11. High reliable.
12. The product itself will remain within RoHS compliant Version.

Descriptions:

1. The HP10UV series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT LED ideal for light pipe application.
2. This package LEDs are designed for high current operation and high flux output application. But the package’s design features better thermal management characteristics than other LED solutions.

Applications:

1. Counterfeit bill detection.
2. Sterilization.
3. Medical instrument.
4. Industrial use.
5. Photo catalyst excitation.
6. Phosphor excitation.
7. Sensor.
8. QA equipment.

730nm LED Absolute Maximum Ratings at Ta=25℃

730nm LED Electrical Optical Characteristics at Ta=25℃

Notes:

1. Luminous Intensity Measurement allowance is ± 10%.
2. θ_1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

730nm UV LED Diodes Package Dimension:

730nm UV LED Diodes Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)
