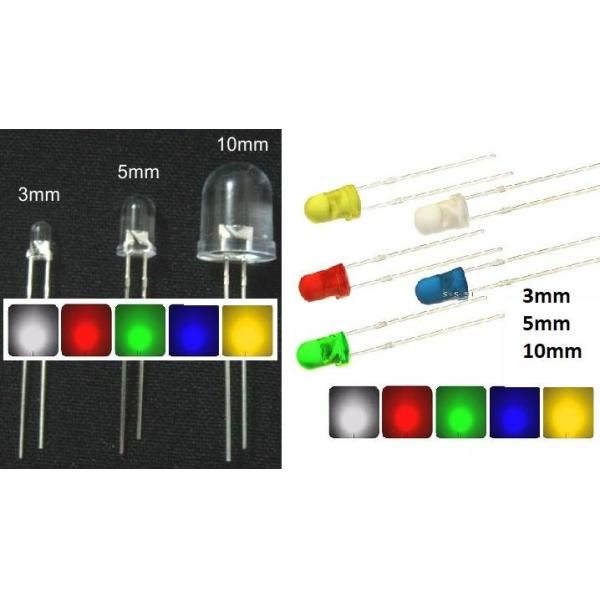

5mm led emitting diode Cylindrical Without Flange dip lamp led full Color RGB Blinking led chip
5mm led emitting diode Cylindrical Without Flange dip lamp led full Color RGB Blinking led chip
5mm led emitting diode Cylindrical Without Flange dip lamp led full Color RGB Blinking led chip
5mm led emitting diode Cylindrical Without Flange dip lamp led full Color RGB Blinking led chip
5mm led emitting diode Cylindrical Without Flange dip lamp led full Color RGB Blinking led chip
5mm led emitting diode Cylindrical Without Flange dip lamp led full Color RGB Blinking led chip
5mm led emitting diode Cylindrical Without Flange dip lamp led full Color RGB Blinking led chip
5mm led emitting diode Cylindrical Without Flange dip lamp led full Color RGB Blinking led chip
Specifications
Brand Name :
Double Light
Model Number :
DL-F50SRGBC2E-F2
Certification :
ISO9001:2008,Rosh
Place of Origin :
China
MOQ :
1000 PCS
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000pcs per Day
Delivery Time :
10-15 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Type :
5mm LED Emitting Diodes
Max. Reverse Voltage :
5V
Light color :
Blue，Red ,Green
Peak Emission Wavelength :
R632nm G518nm B468nm
Led Chips :
Epistar led diodes
Forward Voltage :
4.50~10.00V DC
Blinking Frequency :
2.4Hz
Viewing angle :
60Deg
Shape :
Round
Size :
5mm
Description
5mm led emitting diode Cylindrical Without Flange dip lamp led full Color RGB Blinking led chip

Features:

  1. Single lamp with 3 original colors (red, green and blue).
  2. Designed for bonding with LED chip.
  3. Triple chips embedded.
  4. Multiple colors compose full spectrums.
  5. Electricity control IC embedded.
  6. Lens size with 5mm / 8mm / 10mm options.
  7. High intensity.
  8. Viewing Angles: 60°.
  9. Fancy, fun, hottest in the market.
  10. Operating voltage range: 4.50~10.00V DC.
  11. Blinking frequency: 2.4Hz (VDD=4.50V).
  12. Frequency tolerance: ± 20%.
  13. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. The Ultra Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode.
  2. The Pure Green source color devices are made with InGaN on Sapphire substrate Light Emitting Diode.
  3. The Blue source color devices are made with InGaN on Sapphire substrate Light Emitting Diode.


Applications:

  1. New trend creations.
  2. Low energy consumptions.
  3. Low maintenance costs.
  4. High application design flexibility.
  5. High reliability.
  6. Status indicators.
  7. Commercial use.
  8. Advertising Signs.
  9. Toys / sports utilities.
  10. Miniature key chains.
  11. Effect Lights.
  12. Display / decoration lights.
  13. Electronic displays and signals.
  14. Interior decoration lights.
  15. Indicator lights.
  16. Solar energy lights / garden lights.
  17. Monitor.
  18. Telephone.
  19. Computer.
  20. Circuit board.

Part No. Chip Material Lens Color Source Color
DL-F50SRGBC2E-F2 R AlGaInP Water Clear Ultra Red
G InGaN Pure Green
B InGaN Blue

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation (Per Chip) PD 200 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current IF 40 mA
Derating Linear From 50℃ 0.4 mA/℃
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD 2000 V
Operating Temperature Range Topr -40℃ to +85℃
Storage Temperature Range Tstg -40℃ to +100℃

Lead Soldering Temperature

[4mm (.157″) From Body]

 Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol

Emitting

Color

 Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV Red --- 1000 --- mcd

VDD=4.50V

(Note 1)
Green --- 2000 ---
Blue --- 1000 ---
Viewing angle 2θ1/2 --- --- 60 --- Deg

VDD=4.50V

(Note 2)
Peak Emission Wavelength λp Red --- 632 --- nm VDD=4.50V
Green --- 518 ---
Blue --- 468 ---
Dominant Wavelength λd Red --- 624 --- nm

VDD=4.50V

(Note 3)
Green --- 523 ---
Blue --- 470 ---
Spectral Line Half-Width △λ Red --- 20 --- nm

IF=20mA

(Per Chip)
Green --- 35 ---
Blue --- 25 ---
Blinking Frequency F --- --- 2.4 --- Hz VDD=4.50V
Frequency tolerance Fled --- --- ±20% --- Hz VDD=4.50V
Turn On Time Duty --- --- 1/20 ms VDD=4.50V
Operating Voltage VF --- 2.00 4.50 5.00 V
Reverse Current IR --- --- --- 50 µA VR=5V

Notes:

1. Luminous Intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

4. All specs and applications shown above subject to change without prior notice.

Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

LED Emitting Diodes Package Dimension:

HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines,which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.
