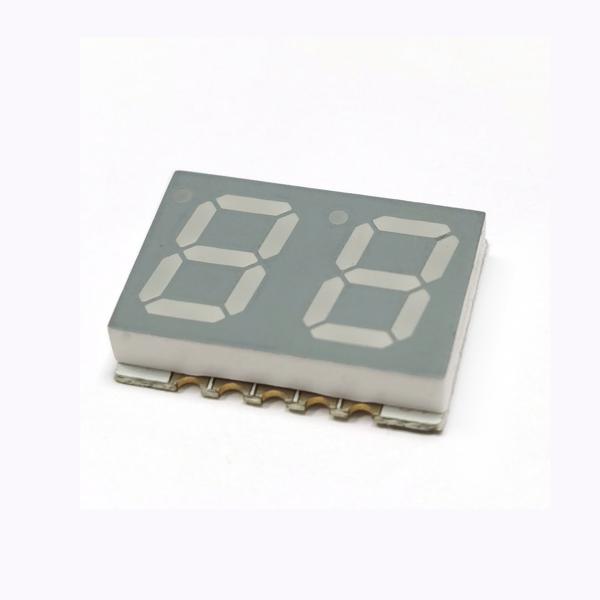

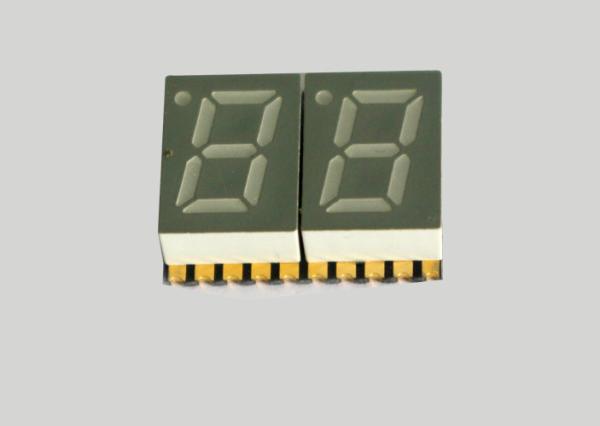

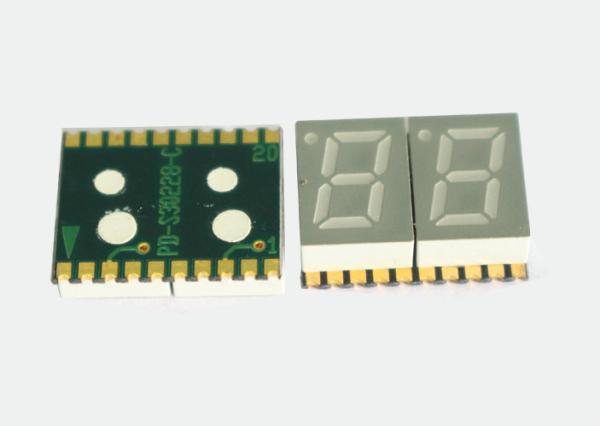

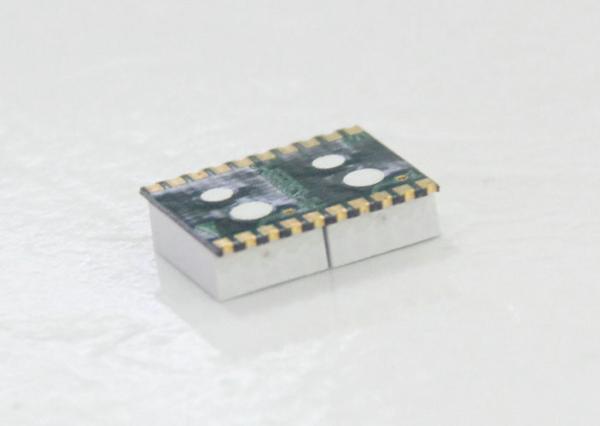

Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm
Specifications
Brand Name :
DOUBLE LIGHT
Model Number :
DL2-361XYGB
Certification :
ISO9001:2008/ROHS
Place of Origin :
China (mainland)
MOQ :
1000pcs
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
8,000,000pcs per Day
Delivery Time :
10-15 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name :
7 Segment LED Display
Package :
0.36 Inch
Emitted Color :
Yellow Green
Peak Emission Wavelength :
573nm
Chip Material :
Gap
Face color :
Black Surface
Forward Voltage @20ma :
2.2V
Luminous Intensity :
3-5mcd
Description

Yellow Green 0.36 inch dual digit 7 Segment LED Displays Peak Emission Wavelength 573nm

​7 Segment LED DisplayKey Specifications/Special Features:
Intensity: 30mcd
Color:
Lens: white
Emitting: red
Surface: black or gray
Common anode or cathode
High intensity
Nice segment bright uniformity
Low power consumption
OEM and ODM orders are welcome
RoHS Directive-compliant
Sizes:
Digit: 9.2mm (0.36 inch)
Outer: 14x15x7.2m
Applications:
- Audio equipments or instrument panels
- Home electronic appliances,air conditional controller
- General use for digital indicators
- Multimedia products


Device Selection Guide:

Model No. Chip Material Source Color Description
DL2-361AYGB GaAlAs Yellow Green Common Anode
DL2-361CYGB Yellow Green Common Cathode

  1. Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Max. Unit
Power Dissipation Per Segment PD 70 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Per Segment IF 25 mA
Derating Linear From 50℃ 0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameter Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 0.8 1.4 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1 IF=10mA
Peak Emission Wavelength λp --- 568 --- nm IF=20mA
Dominant Wavelength λd --- 572 --- nm IF=20mA
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 2.20 2.80 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

7 Segment LED Display Package Dimension:


DL2-361AYGB DL2-361CYGB
