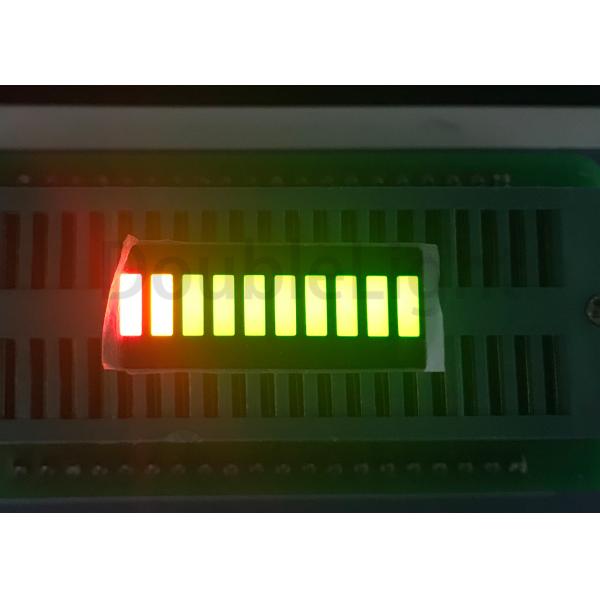

10 Segment Light Bars LED Digital Display Tri- colors Black Diffused Lens Type

This is our 10 Segment Light Bars Displays, its source color can be customed.

Features:

  • Industrial standard size.
  • Low power consumption.
  • Categorized for luminous intensity.
  • The product itself will remain within RoHS compliant Version.

Descriptions:

  • The DL-R1025 series is 10 Segment light bar display, designed for viewing distances up to 7 meters.

Applications:

  • Audio equipment.
  • Instrument panels.
  • Digital read out display.

Device Selection Guide:

Part No. Chip Material Face Color Source Color
DL-R1025RY8GB GaAlAs Black Super Bright Red
GaAlAs Yellow
Gap Yellow Green

Package Dimension:

10 Segment Light Bars LED Digital Display Tri Colors Black Diffused Lens Type

Notes:

  • All dimensions are in millimeters (inches).
  • Tolerance is ± 0.25 mm (.010″) unless otherwise noted.
  • Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation (Per Segment) PD 60 mW

Peak Forward Current (Per Segment)

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current (Per Segment) IF 25 mA
Dating Linear From 50℃ 0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 6.0 12.0 --- mcd IF=20mA (Note 1)
Peak Emission Wavelength R --- 640 --- nm IF=20mA
Y --- 590 ---
G --- 570 ---
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 1.80 2.40 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V

Notes:

  • Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  • The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

For more details, please contact us.
