Specifications
Brand Name :
DOUBLE LIGHT
Model Number :
DL-TOP2835W30-05W
Certification :
ISO9001:2008/ROHS
Place of Origin :
China (mainland)
MOQ :
4,000pcs
Price :
US$ 0.015-0.035per unit (Pieces)
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
2,000,000pcs per Day
Delivery Time :
10 working days after payment received
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name :
Top View 2835 Warm White Chip LED
Emitted Color :
Warm White
Lens Type :
Water Clear
Forward Voltage @20ma :
3.0-3.8v
Luminous Intensity :
50lm
Power Dissipation :
0.5W
Datasheet :
Update
Description

Datasheet:DL-TOP2835W30-05W.pdf Light source: Warm White 2800-3500K
DL-TOP2835W50-05W .pdf Light source: Warm White 4000-6000K
DL-TOP2835W65-05W .pdf Light source: White 6000-7000K

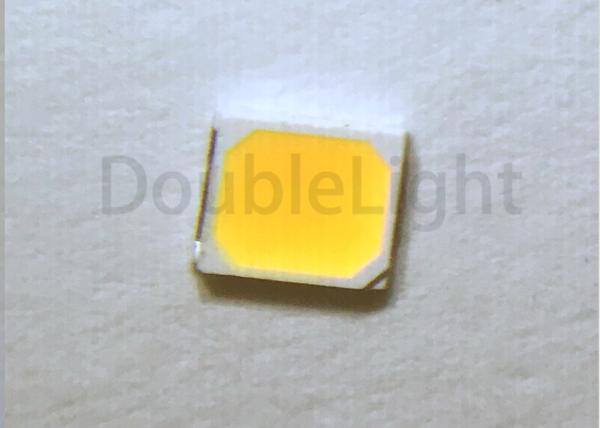

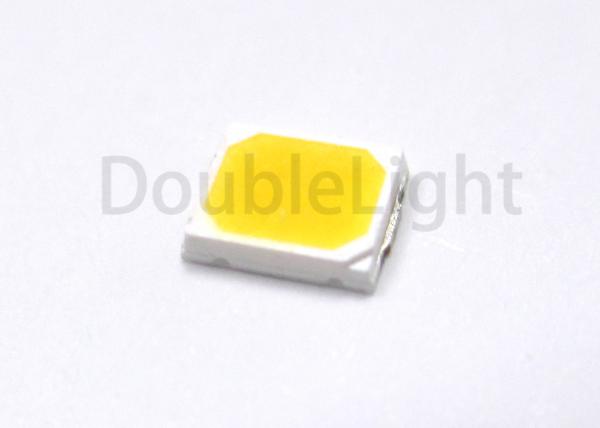

2835 thin thickness Type Warm White and White, 2800-3500K, 6000-7000K, Top view White SMD LED, Red，Green，Blue，Yellow

0.75mm Height Top View

Warm White Chip LED

This is 0.75mm height 2835 package pure green chip LED, its lens color is water clear and the emitting color of this size is changeable.

Features:

  1. P-LCC-2 package.
  2. White package.
  3. Optical indicator.
  4. Colorless clear window.
  5. Ideal for backlight and light pipe application.
  6. Inter reflector.
  7. Wide viewing angle.
  8. Suitable for automatic placement equipment.
  9. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  10. Available on tape and reel (8mm Tape).
  11. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. The TOP2835 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.


Applications:

  1. Automotive: Backlighting in dashboards and switches.
  2. Telecommunication: Indicator and backlight in telephone and fax
  3. Indicator and backlight for audio and video equipment.
  4. Indicator and backlight in office and family equipment.
  5. Flat backlight for LCD’s, switches and symbols.
  6. Light pipe application.
  7. General use.


Part No.Chip MaterialLens ColorSource Color
DL-TOP2835W30-05WInGaNYellow DiffusedWarm White







Notes:

  • All dimensions are in millimeters (inches).
  • Tolerance is ± 0.10mm (.004″) unless otherwise specified.

Specifications are subject to change without notice.

2835 thin thickness Type Warm White and White, 2800-3500K, 6000-7000K, Top view White SMD LED, Red，Green，Blue，Yellow

Absolute Maximum Ratings at Ta=25℃

ParametersSymbolMax.Unit
Power DissipationPD500mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP250mA
Continuous Forward CurrentIF150mA
Reverse VoltageVR5V
Electrostatic Discharge (HBM)ESD1000V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃
Soldering TemperatureTsld260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃

ParametersSymbolMin.Typ.Max.UnitTest Condition
Luminous Flux *Фv50 55lmIF=150mA (Note 1)

Viewing Angle *

2θ1/2---120---Deg

IF=150mA (Note 2)

Chromaticity Coordinatesx---0.45--- IF=150mA (Note 3)
y---0.43---
Color Rendering IndexRA7075---- IF=150mA
Forward VoltageVF3.003.303.80VIF=150mA
Reverse CurrentIR------10µAVR=5V

Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.

For more details, please contact us.
