2×3×4mm rectangular infrared emitting diode 850nm ir led light dip lamp led with 60 viewing angle
2×3×4mm rectangular infrared emitting diode 850nm ir led light dip lamp led with 60 viewing angle
2×3×4mm rectangular infrared emitting diode 850nm ir led light dip lamp led with 60 viewing angle
2×3×4mm rectangular infrared emitting diode 850nm ir led light dip lamp led with 60 viewing angle
2×3×4mm rectangular infrared emitting diode 850nm ir led light dip lamp led with 60 viewing angle
2×3×4mm rectangular infrared emitting diode 850nm ir led light dip lamp led with 60 viewing angle
Specifications
Brand Name :
Double Light
Model Number :
DL-234SIRCF-3SIR60
Certification :
ISO9001:2008,ROHS
Place of Origin :
China (mainland)
MOQ :
10,000pcs
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000pcs per Day
Delivery Time :
5-7 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name :
Infrared LEDs
Diameter :
3.2×2.0mm Rectangular
Emitted Color :
Infrared LED 940nm
Peak Emission Wavelength :
850nm
Chip Material :
GaAlAs
Lens Type :
Water Clear
Forward Voltage @20ma :
1.1-1.4V
Viewing Angle :
60 Deg
Type :
IR infrared leds
Package type :
Through Hole
Shape :
Rectangular
Power :
150mW
Description

Datasheet:DL-234SIRCF-3SIR60.pdf

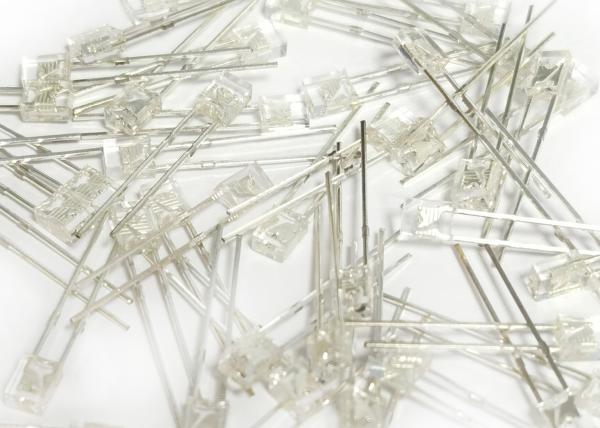

2×3×4mm rectangular infrared emitting diode 850nm ir led light dip lamp led with 60 viewing angle

Part No. Chip Material Lens Color Source Color
DL-234SIRDF-3SIR60 GaAlAs Water Clear Infrared

  • Features:
  1. 3.2×2mm Rectangular.
  2. Low forward voltage.
  3. Viewing angle=60°.
  4. Reliable and rugged.
  5. The product itself will remain within RoHS complaint Version.
  • Descriptions:
  1. The device is spectrally matched with silicon photodiode and phototransistor.
  • Applications:
  1. Floppy disk drive.
  2. Optoelectronic switch.
  3. Camera.
  4. Free air transmission system.
  5. Video.
  • Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation PD 150 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 1.00 A
Forward Current IF 100 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds
  • Electrical Optical Characteristics at Ta=25℃
Parameters Symbol Min. Typ. Max. Unit Test Condition
Radiant Intensity (Note 1) * Ee 10.0 19.0 --- mW/sr IF=20mA
--- 45.0 --- IF=100mA, tp=100µs, tp/T=0.01
Viewing Angle (Note 2) * 2θ1/2 --- 50 --- Deg IF=20mA
Peak Emission Wavelength λp --- 850 --- nm IF=20mA (Note 3)
Spectral Bandwidth △λ --- 50 --- nm IF=20mA
Forward Voltage VF 1.20 1.40 1.60 V IF=20mA
--- 1.60 2.00 IF=100mA, tp=100µs, tp/T=0.01
Reverse Current IR --- --- 10 µA VR=5V

Notes:

  1. Luminous (Radiant) Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λp) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
