Specifications
Brand Name :
Double Light
Model Number :
DL-HP10RGBC-3W
Certification :
ISO9001:2008/ROHS
Place of Origin :
China (mainland)
MOQ :
1,000pcs/Real
Price :
US$ 0.4-0.5 per unit (Pieces)
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000pcs per Day
Delivery Time :
7-15 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name :

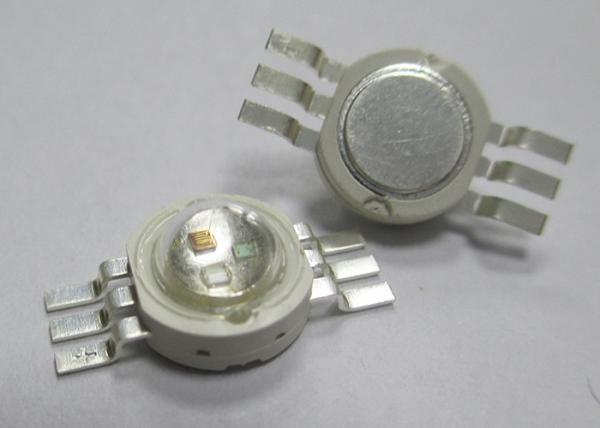

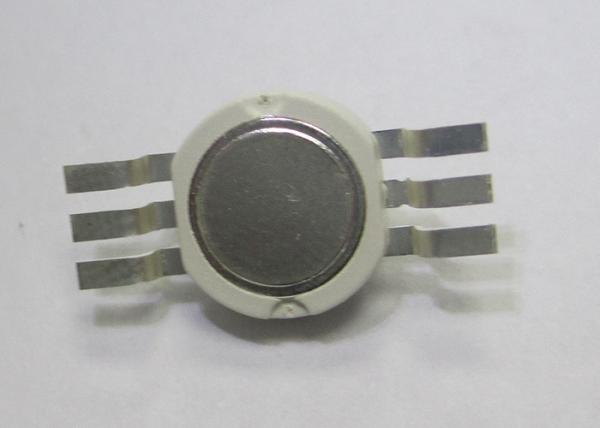

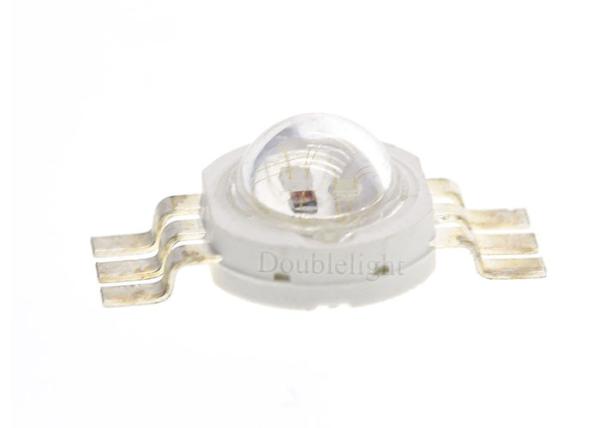

High Power RGBW SMD LEDs
Package :

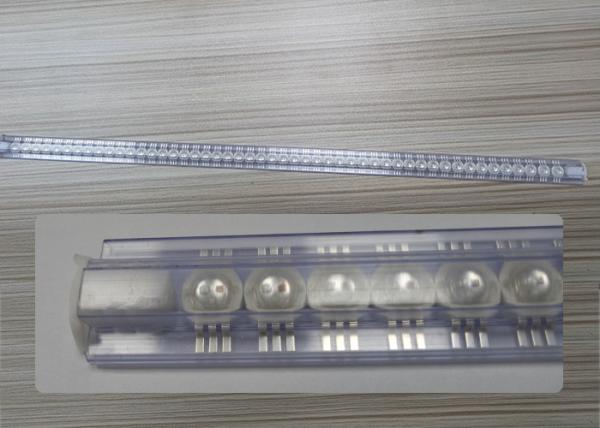

Three chips (color) in one package，50 pieces/Tube
Emitted Color :
RED GREEN BLUE
Product number :
DL-HP10RGBC-3W
Peak Emission Wavelength :
R625nm G520nm B 465nm
Luminous Flux :
30-40ml(R) 30-50ml(G) 5-10ml(B)
Forward Voltage @20ma :
Red 2.0-3.0v Green/Blue:2.8-4.0v
Viewing Angle :
120 Deg
Forward Current :
350mA
Chip Material :
AlGaInP(Red) InGaN(Green/Blue)
Description

4W 8W High Power led light smd rgb led in white package smd led chip for garden lighting

DL-HP10RGBC-3W.pdf

Features:

  1. Very long operating life (up to100k hours).
  2. Three chips (color) in one package.
  3. Independent control of each color.
  4. More energy efficient than incandescent and most halogen lamps.
  5. Low voltage operated.
  6. Instant light.
  7. Long operating life.
  8. IR reflow process compatible.
  9. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. DL-HP10RGBC is one of the highest flux LEDs in the world. It is designed to satisfy applications of Solid-State lighting. It is designed to have three chips in one package. It has various colors for choice and can be independently controlled. More important, it can be pass reflow process.

Applications:

  1. Up-lighters and Down-lighters.
  2. Contour lights.
  3. Ceiling lights.
  4. Garden lighting.
  5. Architectural lighting.
  6. Beacon lights.

Part No. Chip Material Source Color
DL-HP10RGBC-3W R AlGaInP Ultra Red
G InGaN Pure Green
B InGaN Blue

​

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Rating Units
Forward Current IF 350 mA

Peak Pulse Current

(tp≤100μs, Duty cycle=0.25)

 I pulse 1000 mA
Reverse Voltage VR 5 V
LED Junction Temperature Tj 135 ℃
Operating Temperature Range Topr -40 to +80 ℃
Storage Temperature Range Tstg -40 to +100 ℃
Soldering Time at 260 ℃ (Max.) Tsol 5 Seconds

High Power RGB SMD LEDs Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Viewing Angle 2θ1/2 Full color --- 120 --- Deg IF=350mA
Forward Voltage VF Red 2.0 2.2 3.0 V IF=350mA
Green 2.8 3.2 4.0
Blue 2.8 3.5 4.0
Peak Emission Wavelength λp Red --- 625 --- nm

Measurement

@Peak
Green --- 520 ---
Blue --- 465 ---
Dominant Wavelength λd Red 620 626 630 nm
Green 525 528 530
Blue 460 464 470
Spectral Line Half-Width △λ Red --- 18 --- nm IF=350mA
Green --- 36 ---
Blue --- 20 ---
Luminous Flux Фv Red 30 40 --- lm IF=350mA
Green 30 50 ---
Blue 5 10 ---

Notes:

1. Luminous Flux Measurement allowance is ± 10%.

2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

High Power RGB SMD LEDs Mechanical Dimensions:

  • Typical Electrical / Optical Characteristics Curves

  • (25℃ Ambient Temperature Unless Otherwise Noted)

    CIE Chromaticity Diagram:

  • Hyper Red:

  • Pure Green:Blue:
  • Reel Dimensions:

Carrier Tape Dimensions:

Loaded quantity 2000PCS per reel.

Company introduction:

HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.

why choose DOUBLE LIGHT?

1. Well-known chip material

2. 99.99% gold wire bonding

3. 3 years warranty

4. Over 10 years work experience technical service team

5. 24 hours service Professional sales team

6. Free Sample is available

7. Fast delivery

8.100% QC inspection Before Shippment

9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.
