Specifications
Brand Name :
Double LIGHT
Model Number :
DL-TOP2835GL-02W
Certification :
ISO9001:2008,Rosh
Place of Origin :
China
MOQ :
50000pcs
Price :
USD0.02/pcs
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
15,000,000pcs per Day
Delivery Time :
7-10 working days after payment received
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name: :
2835 SMD LED Grow Lights
Power Dissipation: :
0.2W
Viewing Angle :
120 Deg
Soldering Temperature :
260℃ for 5 Seconds
Luminous Flux :
7-8lm
Peak Emission Wavelength :
380-385nm
Forward Voltage :
3.2-3.4v
Package :
4K/reel
Description

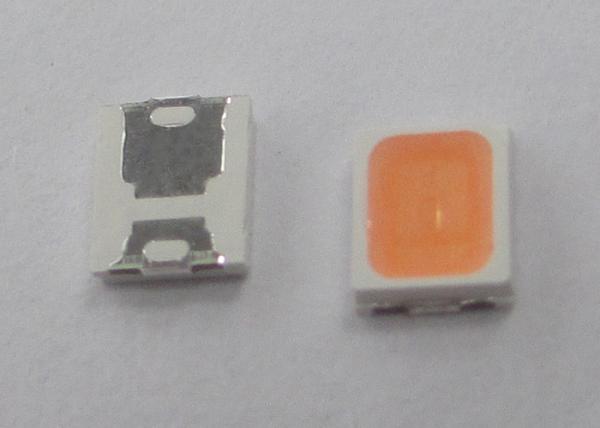

LED grow light 2835 0.2W greenhouse lighting 0.75mm High power LED Grow Light Bulb for Indoor Plant Growth

  • Features:
  1. PLCC-2 package.
  2. High power LED type.
  3. White package.
  4. Optical indicator.
  5. Colorless clear window.
  6. Inter reflector.
  7. Wide viewing angle.
  8. Very long operating life.
  9. Instant light (less than 100 ns).
  10. Cove/Under shelf/Task.
  11. Designed for high current operation.
  12. Low thermal resistance.
  13. Suitable for automatic placement equipment.
  14. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  15. The product itself will remain within RoHS compliant Version.
  • Descriptions:
  1. The TOP 2835 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
  2. Our led grow light mainly are red and blue spectrum, these two spectrums are the peak of plants absorption.
  • Applications:

1. Horticultural operations

2. Commercial vegetable and flower production

3. Supplemental greenhouse lighting

4. Hydroponics

5. Research experiment

LED grow light Package Dimension:

0.75mm High Power LED Grow Light Bulb 0.2W Greenhouse Lighting For Indoor Plant Growth

  • Absolute Maximum Ratings at Ta=25

Parameters Symbol Max. Unit
Power Dissipation PD 200 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP 80 mA
Forward Current IF 30 mA
Electrostatic Discharge (HBM) ESD 2000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Flux Φv 7.0 8.0 ---- lm

IF=350mA

(Note 1)

Viewing Angle 2θ1/2 --- 120 --- Deg

IF=60mA

(Note 2)

Peak Emission Wavelength λp 380 385 nm IF=60mA
Forward Voltage VF 2.60 3.2 3.4 V IF=60mA
Reverse Current IR --- --- 10 µA VR=5V
Company intorduction:
HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.
