Specifications
Brand Name :
Double Light
Model Number :
DL-PCB1206RGBC-C2
Certification :
ISO9001:2008/ROHS
Place of Origin :
China (mainland)
MOQ :
3,000pcs/pack
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000pcs per Day
Delivery Time :
7-15 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name :
1206 Full Color Chip LED
Emitted Color :
Hyper Red,Pure Green,Blue
Product number :
DL-PCB1206RGBC-C2
Peak Emission Wavelength :
632nm,520nm,468nm
Lens Type :
Water Clear
Forward Voltage @20ma :
Hyper Red:1.6-2.4v,Pure Green/Blue:2.8-3.8v,
Viewing Angle :
120 Deg
Luminous Intensity :
Hyper Red:150-270mcd,Pure Green:300-660mcd,Blue:100-200mcd
Continuous Forward Current :
25mA
Power Dissipation :
Hyper Red：60mW,Pure Green/Blue:95mW
Description

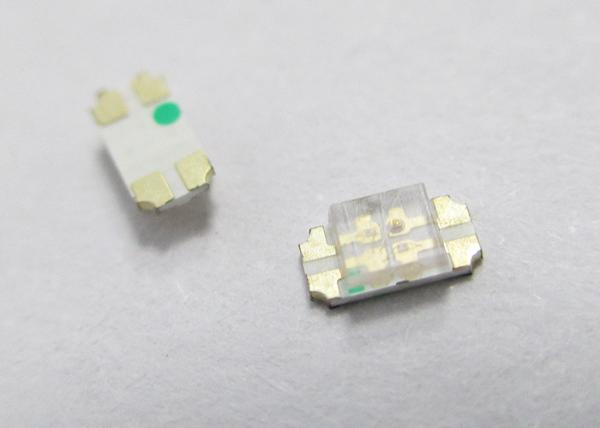

1206 smd rgb Triple Color SMD LED Diode Light Super Bright led rgb smd Red Green Blue LED components

DL-PCB1206RGBC-C2.pdf

Features:

  1. Package in 8mm tape on 7” diameter reel.
  2. Compatible with automatic placement equipment.
  3. Compatible with infrared and vapor phase reflow solder process.
  4. Full-Color Type.
  5. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The PCB1206 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, lightweight makes them ideal for miniature applications .etc.

Applications:

  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. Indoor signboard use.
  5. General use

Package Dimension:

Part No. Chip Material Lens Color Source Color
DL-PCB1206RGBC-C2 R AlGaInP Water Clear Hyper Red
G InGaN Pure Green
B InGaN Blue

Notes:

  1. All dimensions are in millimeters (inches).
  2. Tolerance is ± 0.10mm (.004″) unless otherwise specified.
  3. Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Emitting Color Max. Unit
Power Dissipation PD Hyper Red 60 mW
Pure Green 95
Blue 95

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP Hyper Red 100 mA
Pure Green 100
Blue 100
Continuous Forward Current IF Hyper Red 25 mA
Pure Green 25
Blue 25
Reverse Voltage VR 5 V
Electrostatic Discharge (HBM) ESD Hyper Red 2000 V
Pure Green 400
Blue 400
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Hyper Red 150 270 --- mcd

IF=20mA

(Note 1)
Pure Green 300 660 ---
Blue 100 200 ---
Viewing Angle 2θ1/2 Hyper Red --- 120 --- Deg

IF=20mA

(Note 2)
Pure Green --- 120 ---
Blue --- 120 ---
Peak Emission Wavelength λp Hyper Red --- 632 --- nm IF=20mA
Pure Green --- 520 ---
Blue --- 468 ---
Dominant Wavelength λd Hyper Red --- 624 --- nm

IF=20mA

(Note 3)
Pure Green --- 525 ---
Blue --- 470 ---
Spectral Line Half-Width △λ Hyper Red --- 20 --- nm IF=20mA
Pure Green --- 35 ---
Blue --- 25 ---
Forward Voltage VF Hyper Red 1.60 2.00 2.40 V IF=20mA
Pure Green 2.80 3.40 3.80
Blue 2.80 3.40 3.80
Reverse Current IR Hyper Red --- --- 10 µA VR=5V
Pure Green 50
Blue 50
