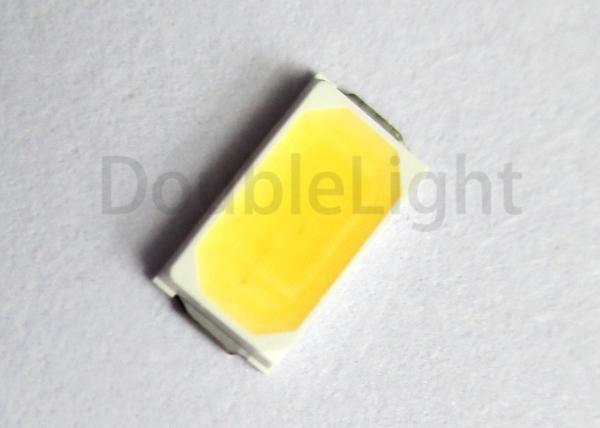

Specifications
Brand Name :
Double Light
Model Number :
DL-TOP5730W60-05W
Certification :
RoHS/ REACH
Place of Origin :
China
MOQ :
3000 pcs
Price :
US$ 0.0088-0.020per unit (Pieces)
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
5,000,000pcs per day
Delivery Time :
7 days afer payment received
Product Name :
0.8mm Height PLCC-2 Package Top View 0.5W High Power White LED
Emitted Color :
White
Color Temperature :
White:6000-6500K
Lens Type :
Yellow Diffused
Forward Voltage @30ma :
2.8-3.8V
Viewing Angle :
120Deg
Luminous Flux :
65-75lm
Datasheet :
Update
Description
Datasheet:DL-TOP5730W30-05W.pdf Light source: Warm white 2800-3500K
DL-TOP5730WXX-05W.pdf Light source: Neutral White 4000-4500K
White 6000-6500K

0.8mm Height PLCC-2 Package Top View

0.5W High Power White LED

Features:

  1. PLCC-2 package.
  2. High power LED type.
  3. White package.
  4. Optical indicator.
  5. Colorless clear window.
  6. Ideal for backlight and light pipe application.
  7. Inter reflector.
  8. Wide viewing angle.
  9. Very long operating life.
  10. Instant light (less than 100 ns).
  11. Reading lights (car, bus, aircraft).
  12. Mini_ accent/Up lighters/Down lighters/Orientation.
  13. Bollards/Security/Garden.
  14. Cove/Under shelf/Task.
  15. Automotive rear combination lamps.
  16. Indoor/Outdoor Commercial and Residential Architectural.
  17. Edge_ lit signs (Exit, point of sale).
  18. LCD Backlights/Light Guides.
  19. Designed for high current operation.
  20. Low thermal resistance.
  21. Suitable for automatic placement equipment.
  22. Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  23. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The TOP 5730 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.

Applications:

  1. Reading lights (car, bus, aircraft).
  2. Mini_ accent/Up lighters/Down lighters/Orientation.
  3. Bollards/Security/Garden.
  4. Cove/Under shelf/Task.
  5. Automotive rear combination lamps.
  6. Indoor/Outdoor Commercial and Residential Architectural.
  7. Edge_ lit signs (Exit, point of sale).
  8. LCD Backlights/Light Guides.

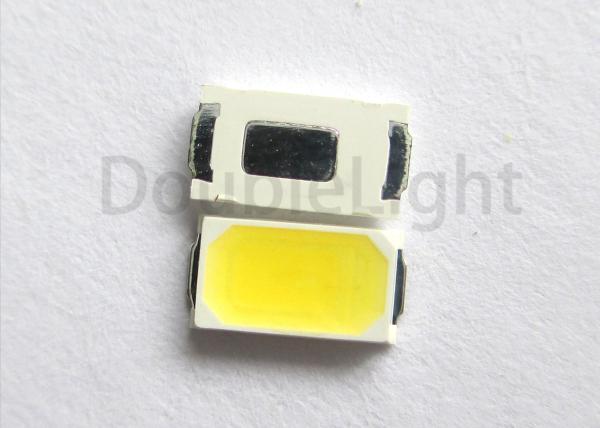

  • Package Dimension:

​0.8mm Height 0.5W SMD Chip LED Neutral / Warm White Chip SMD 5730 6000-6500K Light Pipe Application

Part No. Chip Material Lens Color Source Color
DL-TOP5730W40-05W InGaN Yellow Diffused Neutral White
DL-TOP5730W60-05W Yellow Diffused White

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.10mm (.004") unless otherwise specified.

3. Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 600 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 250 mA
Forward Current IF 150 mA
Electrostatic Discharge (HBM) ESD 1000 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Flux Φv 65 ---- 75 lm

IF=150mA

(Note 1)
Viewing Angle 2θ1/2 --- 120 --- Deg

IF=150mA

(Note 2)
ColorTemperature Tc 3750 --- 7500 K

IF=150mA

(Note 3)
Forward Voltage VF 2.80 3.20 --- V IF=150mA
CRI Ra 80 IF=150mA
R9 0 IF=150mA
Reverse Current IR --- --- 10 µA VR=5V

Notes:

  • Luminous Intensity Measurement allowance is ± 10%.
  • θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  • It use many parameters that correspond to the CIE 1931 2°. X, Y, and Z are CIE 1931 2° values of Red, Green and Blue content of the measurement.

Carrier Tape Dimensions:

Loaded quantity 1000PCS per reel.

0.8mm Height 0.5W SMD Chip LED Neutral / Warm White Chip SMD 5730 6000-6500K Light Pipe Application

For more details, please contact us.

0.8mm Height 0.5W SMD Chip LED Neutral / Warm White Chip SMD 5730 6000-6500K Light Pipe Application
