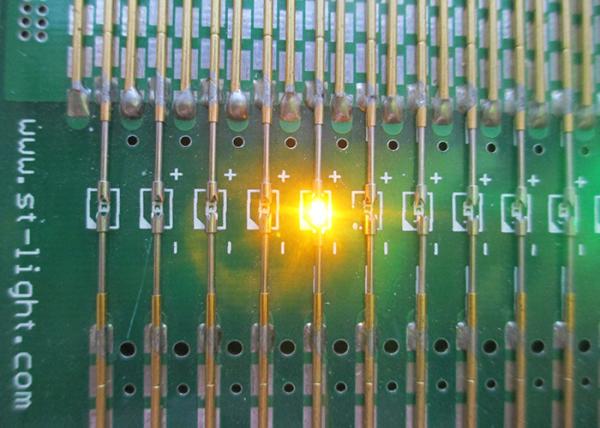

Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied
Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied
Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied
Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied
Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied
Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied
Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied
Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied
Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied
Super Yellow Color SMD Chip LED Diode 75mW AlGaInP Chip Material Indicator Applied
Specifications
Brand Name :
DOUBLE LIGHT
Model Number :
DL-PCB1204UYC-3UY120
Certification :
ISO9001:2008/ROHS
Place of Origin :
China (mainland)
MOQ :
4000pcs
Price :
US$ 0.03-0.033 per unit (Pieces)
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000pcs per Day
Delivery Time :
5-7 working days after received your payment
Packaging Details :
Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms
Product Name :
1204 SMD Chip Led
Package :
8mm tape on 7″ diameter reel
Peak Emission Wavelength :
592nm
Chip Material :
AlGaInP
Lens Type :
Water Clear
Forward Voltage @20ma :
2.0-2.8v
Luminous Intensity :
450-550mcd
Viewing Angle :
120 Deg
Dominant Wavelength :
589nm
Source Color :
Super Yellow
Description

592nm pcb led light super yellow color smd led diode 75mW pcb led light panel smd led chip light for Indicator

Know more details,please downlaod specifications:DL-PCB1204UYC-3UY120.pdf
Features:

  1. Package in 8mm tape on 7″ diameter reel.
  2. Compatible with automatic placement equipment.
  3. Compatible with infrared and vapor phase reflow solder process.
  4. 3.2mmX1.0mm SMT LED, 1.5mm .
  5. Low power consumption.
  6. Wide viewing angle.
  7. Ideal for backlight and indicator.
  8. AVAILABLE.Various colors and lens types available
  9. The product itself will remain within RoHS compliant Version.


Descriptions:

  1. The 1204 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
  2. Besides, lightweight makes them ideal for miniature applications, etc.


Applications:

  1. Automotive: Backlighting in dashboard and switch.
  2. Telecommunication: Indicator and backlighting in telephone and fax.
  3. Flat backlight for LCD, switch and symbol.
  4. General use.
Part No. Chip Material Lens Color Source Color
DL-PCB1204UYC-3UY120 AlGaInP Water Clear Super Yellow


Notes:

  1. All dimensions are in millimeters (inches).
  2. Tolerance is ± 0.10 mm (.004") unless otherwise specified.
  3. Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 75 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Continuous Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds


Electrical Optical Characteristics at Ta=25℃
Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity * IV 450 550 --- mcd IF=20mA (Note 1)
Viewing Angle * 2θ1/2 --- 120 --- Deg IF=20mA (Note 2)
Peak Emission Wavelength λp --- 592 --- nm IF=20mA
Dominant Wavelength λd --- 589 --- nm IF=20mA (Note 3)
Spectral Line Half-Width △λ --- 15 --- nm IF=20mA
Forward Voltage VF 2.00 2.20 2.80 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V

Notes:

  1. Luminous Intensity Measurement allowance is ± 10%.
  2. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
  3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

​Package Dimension:


Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)


HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines,which include THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.
