Led RGB Strip Controller AC100-240V Wall Touchable Screen RGB Led controller

Adopt 2.4GHz RF wireless transmission technology, which is applicable for license and patent free worldwide.

Advanced RF wireless synchronous control technology, be able to realize dimming, synchronous dynamic changing color effect between receivers.

Support DMX512 signal output can work as DMX master controller to control DMX fixture.

Install touch panel at different areas, can control the same LED light, achieve multi-panel control, no quantity limited.

Touch keys with chord and LED indicator

Saved the scene you like, touch 1 key to recall the scene, easy and convenient

Adopts the capacitive touch control technology on the full-color wheel, make the LED color selection more user-friendly.

Technical Specs

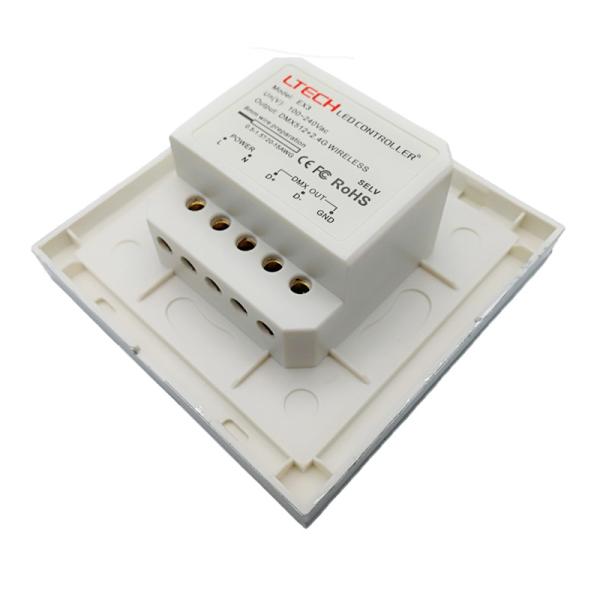

Ex3 RGB Touch Panle

Input Voltage:100-240Vac

Dimensions:L86×W86×H36(mm)

Output Signal:RF 2.4GHz, DMX512

Package Size: L113×W112×H50(mm)

Working Temp:--30°C~55°C

Weight(G.w.):225g

F4-3A CV Receiver

Input Coltage:5-24Vdc

Working Temp:-30°C~55°C

Max Current Load:3A*4CH Max.12A

Dimensins: L125×W33×H20(mm)

Max Output Power:60W/144W/288W(5V/12V/24V)

Package Size:L127×W35×H24(mm)

Wireless Signal: 2.4GHz

Weight(G.W.): 60g

F4-5A CV Receiver

Input Voltage:5-24Vdc

Working Temp:-30°C~55°C

Max Current Load :5A ×4CH Max.20A

Dimensions:L127×W44×H30(mm)

Max Output Power:100W/240W/480W(5V/12V/24V)

Package Size: L178×W48×H33(mm)

Wireless Signal: 2.4GHz

Weight(G.W): 150g

F4-CC CC Receiver

Input Coltage: 12-48Vdc

Output Voltage: 3-46Vdc

Output Current: CC 350/700/1050mA×4GH

Output Power: 1.05W-48.3W×4CH Max193.2W

Wireless Signal: 2.4GHz

Note:Receiver is sold separately

Working Temp:-30°C~55°C

Dimensions: L175×W44×H30(mm)

Package Size:L178×W48×H33(mm)

Weight(G.W.): 165g

How do you ensure the quality
A1: We get three QC processes:1.For raw materials;2.During the half of production; 3.Final QC test one by one after aging 12 hours.

Q2:How to do if any quality problems on our side in the warranty time?
A2: First, take pictures or videos as proof and send to us.We will replace new ones for free.

Q3:OEM OR ODM accepted?
A3:Yes,we can do OEM & ODM,logo on the light or package both are available.

Q4:Can we get support if we have our own market position?
A4:Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Q5:Is there any cheap shipping cost to import to our country?
A5:For small order,express will be the best.And for bulk order,sea ship way is best but take much time.For urgent orders,we suggest via air to airport.

Q6: How many days will samples be finished?And how about the mass production?
A6: Generally 5-7 days for samples making. The leading time of mass production will depend on the quantity.

Q7:What is your trade assurance?
A7:100% product quality protection
100% product on time shipment protection
100% payment protection for your covered amount
