433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting
433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting
433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting
433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting
Specifications
Brand Name :
vyeofar
Model Number :
M2+M4-5A
Certification :
CE/Rohs
Place of Origin :
Guangdong
MOQ :
10
Price :
negotiable
Payment Terms :
D/A, L/C, , D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
5000/month
Packaging Details :
Paper
Material :
ABS
Working Frequency :
433.92 MHz
Type :
RF wireless remote
Function :
led color temperature controller
votage :
12V-24V
Power output :
480W
Description

Led Strip Controller DC12-24V 5A/4CH 2.4GHz RF wireless Remote For CW/NW Strip

Working voltage DC3V(Battery CR2032 )
Working Frequency 433.92 MHz
Remote Distance 40-50m
Working Temp. -30℃~55℃
Dimensions L104×W60×H9mm
Weight (N.W.) 42g

433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting

433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting

433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting

433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting

M series LED controller is compatible with 8 kinds remotes of different function (patent technology).

which means using one receiver could experience single color/CT dimming , RGB/RGBW adjustment to meet customer' different lighting requirements. With the RF remote, speed/brightness adjustment. customise color and lighting changing modes selection could all be achieved

1.Parameter:

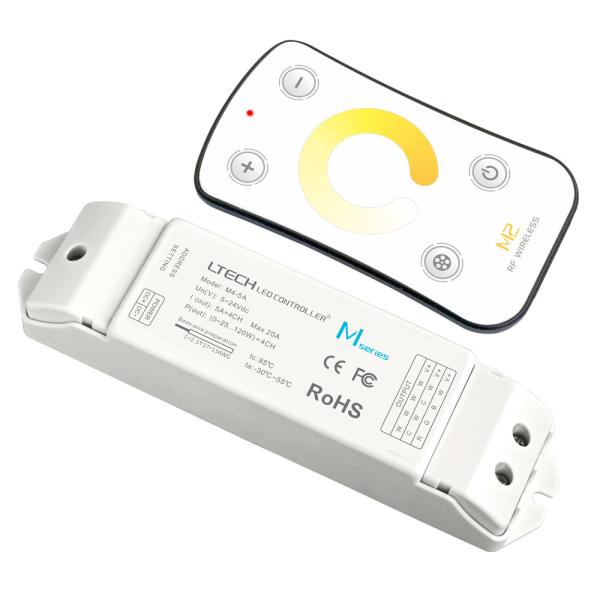

Remote(CT):

  • Model:M2
  • Working Voltage:3V DC(battery CR2032)
  • Working Frequency:433.92MHz
  • Remote Distance:30m
  • Working Temp:-30℃-55℃
  • Weight(N.W):42g

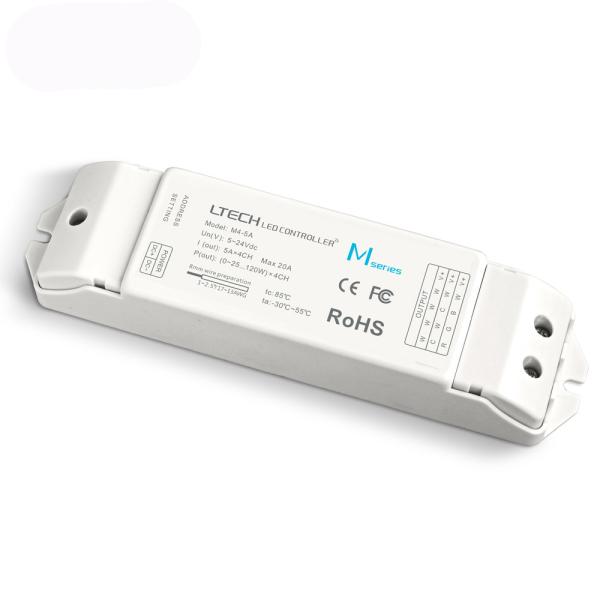

CV Receiver(CT):

  • Model:M4-5A
  • Input Voltage:5-24V DC
  • Max Current Load:5A×4CH Max 20A
  • Max Output Power: 100W/240W/480W(5V/12V/24V)
  • Working Temp:-30℃-55℃
  • weight(N.W):125g

433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting

3. The Learning ID Method of Remote Control:

Remote control has been matched to the receiver before leave factory, if deleted accidentally, you

can learn ID as follow.

Learning ID: Short press ID learning button on the M4-5A receiver, the running light is on, then

press any key on the M2 remote control, the running light flashes several times,

activated.

Cancel ID: Long press ID learning button on the M4-5A receiver for 5 seconds.

Attn: one receiver can be matched with max 10 same or different kinds remote.

433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting

433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting433.92 MHz RF LED Strip Controller , Wifi Led Rgb Controller For Strip Lighting
