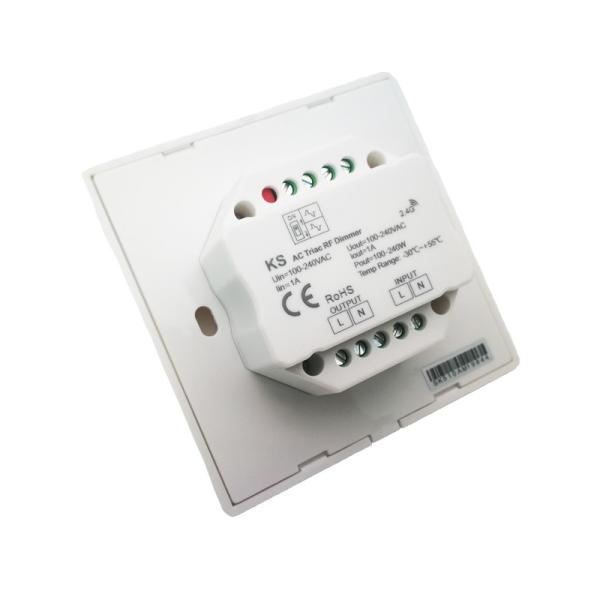

LED Dimmer Switch AC 200-240V Manual Knob 2.4G RF Triac Led Light Dimmer

Rotary dimming/Leading edge or trailing edge/Min brightness settable/Wireless remote control

Features

Rotary panel AC phase-cut dimmer, 1 channel output.

To dim and switch single color dimmable LED lamps, traditional incandescent, and halogen lights.

Rotate the knob to change brightness, support push, and long push operation.

Leading edge dimming or trailing edge dimming set by dip switch.

Min brightness can be set by key.

Compatibility with Skydance’s 2.4G dimming remote control.

Min brightness setting

Long press Min set key for 2s, the light blink 2 times, ready for min brightness set,

then short press Min set key 1-6 times, to get 6 min brightness: 5%, 10%, 15%, 20%, 25% or 30%, the light will output the current min brightness immediately,

Long press Min set key for 2s or wait 8s, quit min brightness set, the light will output 100% brightness automatically.

Match Remote Control (three match ways)

The AC triac rotary panel dimmer can also match with the RF dimming remote (optional).

User can choose the suitable match/delete ways. Three options are offered for selection:

Use Match key

Match:

Short press match key, immediately press on/off key(single zone remote) or zone key(multiple zone remote) of the remote.

Delete:

Press and hold match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted.

Use Knob

Match:

Turn on light, turn off, immediately push the knob for 5s, immediately press on/off key(single zone remote)

or zone key(multiple zones remote) of the remote.

Delete:

Turn on light, turn off, immediately push the knob for 10s, delete all matched remotes.

Use Power Restart

Match:

Switch off the power, then switch on power again, immediately short press on/off key (single zone remote)

or zone key (multiple zones remote) 3 times on the remote. The light blinks 3 times means the match is successful.

D. elete:

Switch off the power, then switch on power again, immediately short press on/off key (single zone remote)

or zone key (multiple zones remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
