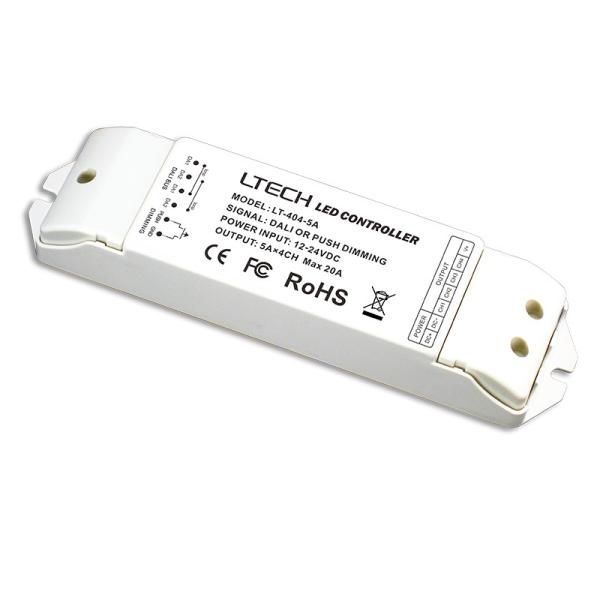

CV DALI Low Voltage Driver,12-24V DC 5A*4CH Constant Voltage Dali Driver
CV DALI Low Voltage Driver,12-24V DC 5A*4CH Constant Voltage Dali Driver
Specifications
Brand Name :
LTECH
Model Number :
LT-404-5A
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
10
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
1000
Packaging Details :
White box
Material :
Plastic
Color :
White
Voltage input :
DC12-24V
Current output :
20A
Feature :
Dali driver
Output power :
480W
Description

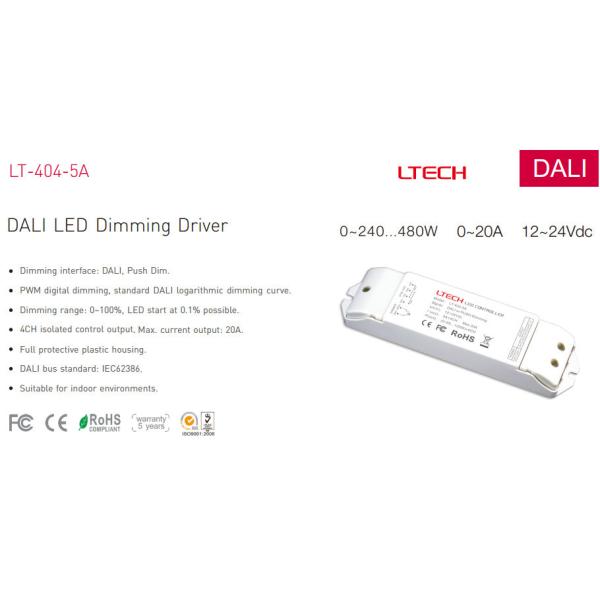

CV DALI Low Voltage Driver,12-24V DC 5A*4CH Constant Voltage Dali Driver​

Input signal DALI, Push Dim
Input voltage 12V-24VDC
Output 5A ×4CH Max 20A
Max output power (0~60W...120W)×4CH Max. 480W
Dimming Range 0-100%
working temperature

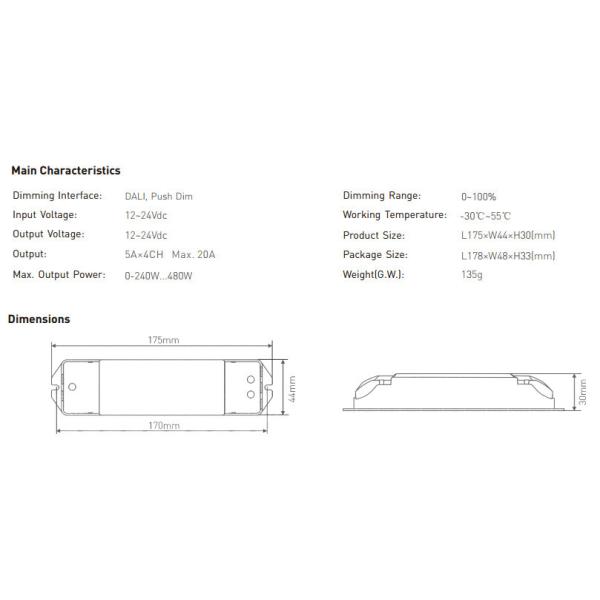

Dimension L175×W44×H30(mm)
Package Size L178×W48×H33mm
Weight (G.W) 135g

CV DALI Low Voltage Driver,12-24V DC 5A*4CH Constant Voltage Dali Driver

CV DALI Low Voltage Driver,12-24V DC 5A*4CH Constant Voltage Dali DriverCV DALI Low Voltage Driver,12-24V DC 5A*4CH Constant Voltage Dali DriverCV DALI Low Voltage Driver,12-24V DC 5A*4CH Constant Voltage Dali DriverCV DALI Low Voltage Driver,12-24V DC 5A*4CH Constant Voltage Dali DriverCV DALI Low Voltage Driver,12-24V DC 5A*4CH Constant Voltage Dali DriverCV DALI Low Voltage Driver,12-24V DC 5A*4CH Constant Voltage Dali Driver

LT-404-5A .pdf
