RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g
RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g
RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g
RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g
Specifications
Brand Name :
vyeofar
Model Number :
LT-903-DIP
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
10
Price :
negotiable
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
1000/month
Packaging Details :
White box
Material :
Iron
Color :
Black
Feature :
3 Channel DMX decoder
output :
8A*3CH DMX CV decoder
Voltage :
DC 12-24V
Power :
576W
Description

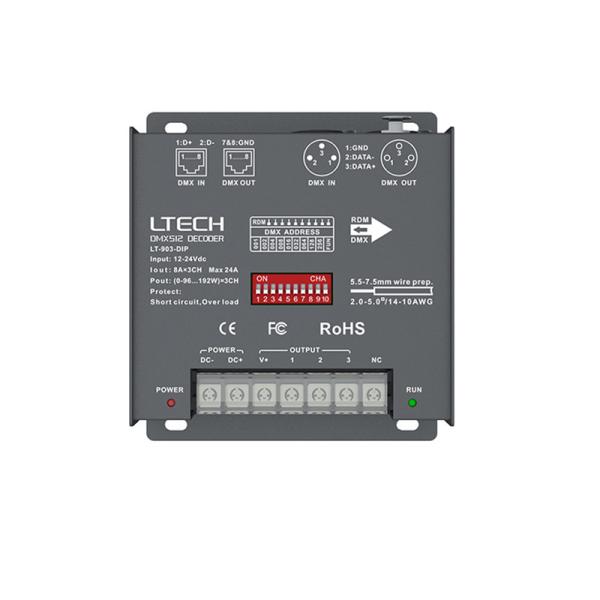

Led DMX Decoder Constant Voltage DC12V-24V 8A*3CH RJ45/XLR 3 channel output

LT-903-DIP
Input signal DMX512/RDM
Input voltage DC12V～DC24V
Max load current 6A x 3CH Max. 24A
Max output power (0~96W...192W) x3CH Max. 576W
DMX512 socket 3-pin XLR, RJ45
Working temperature -30℃～65℃
Dimension L122×W110×H37(mm)
Package Size L127×W123×H41mm
Weight (G.W) 550g

Pruduct Introduction:

1. Designed with 3 channels output, and Max. 8A current per channel, up to 576W output power

2. Easy operation with digital display and the touch buttons

3. Support 2 kinds of DMX ports:3-pin XLR, RJ45

4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

5. With shortcut protection and over load protection, as well as warniing function when fault.

6. With fast self - testing function.

7. High / Low PWM frequency for optional

8. 16bit(65536 levels)/8bit(256 levels) grey level optional

RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g

RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550gRJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550gRJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g

RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550gRJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550gRJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g
