Specifications
Brand Name :
VS
Model Number :
VS-SSL-L
Certification :
CE, CB, ROHS, AS Required
Place of Origin :
Guangdong, China
MOQ :
20
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per Month
Delivery Time :
15-25 days
Packaging Details :
ITEM: VS-SSL-L30 Lamp size: 550*255*90 mm, Solar panel size: 530*350*17mm, Ctn size: 610*155*435mm 1pc/ctn
Product name :
Solar Street Light L Series
Power :
300W 500W 600W 1000W 1600W
LED Chip :
SMD5054/5050
Material :
Aluminum+PC Cover
Lamp Luminous Efficiency(lm/w) :
170lm/w
Work Mode :
Time control+ Light control remote controL
Waterproof :
IP66
Application :
street,main road, pathway,walkway,yard,park,landscape,square
Description
IP66 Solar Street Light 300W 500W 600W 1000W 1600W High Power Solar Street Light For Main Street Highway Light Solar
IP66 Solar Street Light 300W 500W 600W 1000W 1600W High Power Solar Street Light For Main Street Highway Light Solar
PARAMETERs
Product Name
L Series - Split Solar Street Lights
Model No.
VS-SSL-L03
VS-SSL-L05
VS-SSL-L06
VS-SSL-L10
VS-SSL-L16
Power
300W Regular
500W Regular
600W Regular
1000W Customized
1600W Customized
Battery
3.2V 24AH Lithium
3.2V 24AH Lithium
3.2V 60AH Lithium
3.2V 100AH Lithium
12.8V 60AH Lithium
Solar Panel
Mono 5V 30W
Mono 5V 50W
Mono 5V 60W
Mono 6V 100W
Mono 18V 120W
Lumen
1760lm
2880lm
3840lm
5400lm
10800lm
LED Type
SMD5054*80PCS, 4chips 1530
Brightlux SMD5050/80pcs, 4chips 1734
Beam Angle
120°
CCT
Cold White (6500K)
Charge Time
4-6 hours
Lasting Time
3-5 Rainy days
Install Height
4-5m
4-6m
5-7m
6-8m
8-10m
Lighting Area
100㎡
200㎡
300㎡
400㎡
800㎡
Working Mode
Intelligent Light control + Remote Control + self-developed 365days discharging program
IP Rating
IP66
Materials/Color
Aluminum Heat Sink + PC lens / Sand Grey
Lamp Size
550*255*90mm (all watts same size)

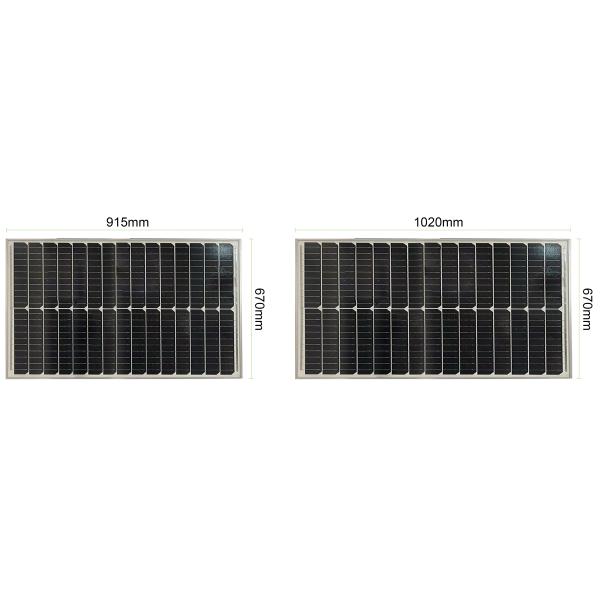

Panel Size
530*350*17mm
670*445*25mm
670*535*25mm
670*915*30mm
670*1020*30mm
Packing
Integrated regular packing
customized according to projects
Warranty
Regular 2 Years warranty

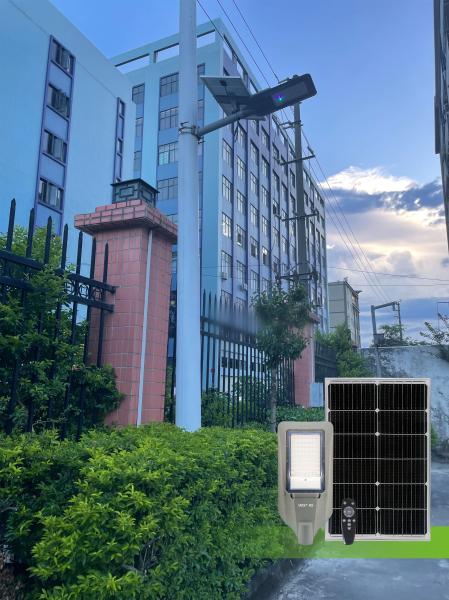

LIVE PHOTOs

Optional Solution

Regular Series--battery inner lamp
300w/500w/600w
Customized Series--battery box outer lamp
1000w/1600w

3 Intallation Ways of Regular Series

Wall mounted
Pole Mounted
Hoop Mounted
SIZEs
Whole series of same size
300w: 500mm length
500w: 600mm length
300w: total length 970mm
500w: total length 1070mm
Regular-300w

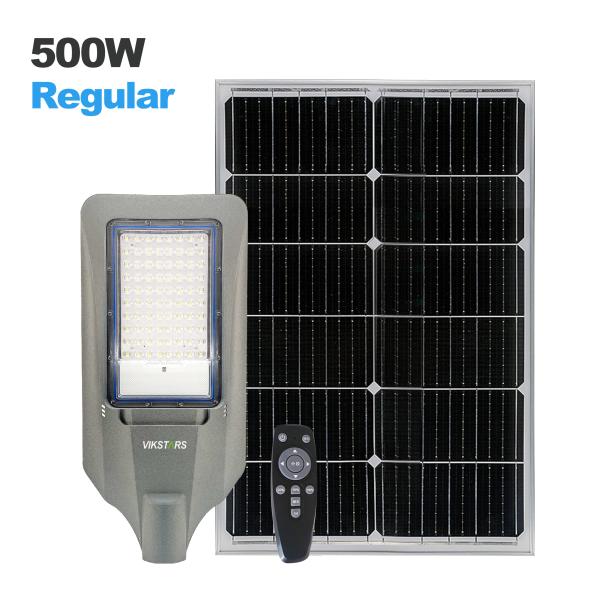

Regular-500w
Regular-600w
IP66 Solar Street Light 300W 500W 600W 1000W 1600W High Power Solar Street Light For Main Street Highway Light Solar
Custmized-1000w
Custmized-1600w
ACCESSORIEs
PACKING
Solution
Power
Carton Size
pc/ctn
N.W.
Specification
Regular
300W
610*155*435mm
1pc/ctn
5.00kg
Inner battery,
integrated regular packing
500W
720*155*495mm
1pc/ctn
6.50kg
600W
/
/
/
Inner battery, larger size solar panel, customized packing according to
the project
Customized
1000W
/
/
/
Outter battery box, larger size solar panel, customized packing according to
the project
1600W
/
/
/
300W/500W-Regular Integrated Packing
600W with larger size solar panel, need to customize packing
300W/500W-Regular Carton
600W with larger size solar panel, need to customzie carton
INTELLIGENT LIGHT CONTROL
AUTO CHARGE During the Day
At daytime, lamp auto charges
4-6 hours for full charge
also charge in rainy days
AUTO LIGHT UP At Night
Inner photocell detects darkness
Lamp auto lights up
can last 3-5 rainy days after full charge
DETAILs
ORIGIN FACTORY

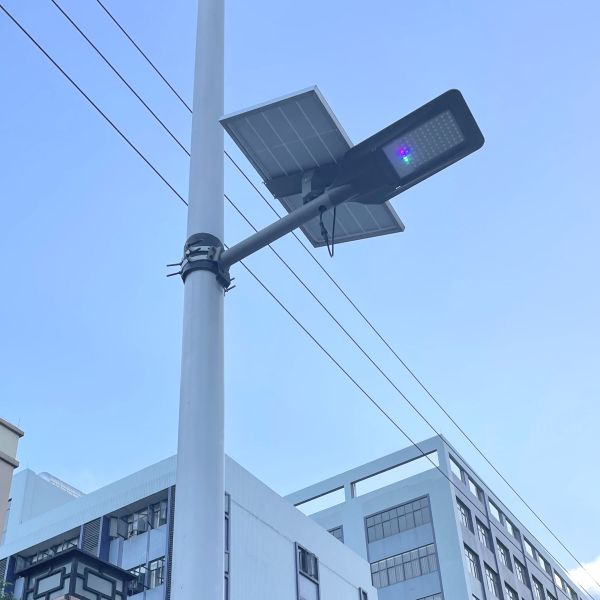

PROJECT CASEs
Industrial Park Install Live Photo
Regular-300w<hoop install>

Industrial Park Night Live Photo

Regular-300w
4.5m Installation Height

Outer Wall 9m Live Photo
Customized-1000w
<Wall install + Extension Cord>
Factory Road 8m Live Photo
Customized-1000w <Outer Battery>
Factory Road 8m Live Photo-2
Customized-1000w <Outer Battery>
8m Lamp Pole Install
