15x40 Degree Acrylic Light Lens Practical Dimmable 22x12mm High Bay
15x40 Degree Acrylic Light Lens Practical Dimmable 22x12mm High Bay
15x40 Degree Acrylic Light Lens Practical Dimmable 22x12mm High Bay
15x40 Degree Acrylic Light Lens Practical Dimmable 22x12mm High Bay
15x40 Degree Acrylic Light Lens Practical Dimmable 22x12mm High Bay
15x40 Degree Acrylic Light Lens Practical Dimmable 22x12mm High Bay
Specifications
Brand Name :
ChenMu
Model Number :
CM01LS-S22-A15°x40°D-RQ35
Certification :
ROHS,UL,SGS,
Place of Origin :
Zhejiang,China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20000PCS/Day
Delivery Time :
3-5 working days
Packaging Details :
In Carton Box
Dimmable :
Φ22x12mm
Material :
PMMA
Angle :
15x40°
led :
3535 3030
Usage :
for LED lighting
Application :
High Bay Light
Description

Waterproof 15*40 Degree 22mm 3535 Led PMMA Lens

Quick detail

Product Name: CM01LS-S22-A15°x40°D-RQ35 Beam Angle: 15x40°
Efficiency: 90% Material: PMMA
LED Chips: 3535 3030 Dimmable: Φ22x12mm
Other Light Distribution: 15°/ 20°/ 30°/ 40°/60°/15°x40°/20°x30°
Application: Commercial Lenses,Flood Lighting,Wall Washing Small Spotlight

Description

  • Waterproof 15*40 Degree 22mm 3535 Led PMMA Lens
  • Forbid to use industrial solvent to clean the product, such as alcohol.
  • On the basic character of 3030 3535, show the application of the Combination of optical and construction.
  • Lenses are often designed for use with specific LEDs. Check the manufacturer data for compatible LED options.
  • The lens has a strong ability to concentrate light,It is not only bright but also clear when used to illuminate, and the irradiation can be clearly seen.

Specifications

Product Name: CM01LS-S22-A15°x40°D-RQ35
Beam Angle: 15°x40°
Efficiency: 90%
Material: PMMA
LED Chips: 3535 3030
Size: Φ22x12mm
Other Light Distribution: 15°/ 20°/ 30°/ 40°/60°/15°x40°/20°x30°
Application: Commercial Lenses,Flood Lighting,Wall Washing Small Spotlight
Quatity Guarantee: If you receive a defective item, please
email us a picture of the defective part. We will arrange for a reshipment or refund to you.
Main Maket: Europe,South America,North America,Asia ect

Shipping and Delivery:


Trade Terms:		 EXW , FOB , CNF , CIF
Payment Terms: T/T , PayPal , Western Union, Moneygram
Delivery time: 2-3 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc

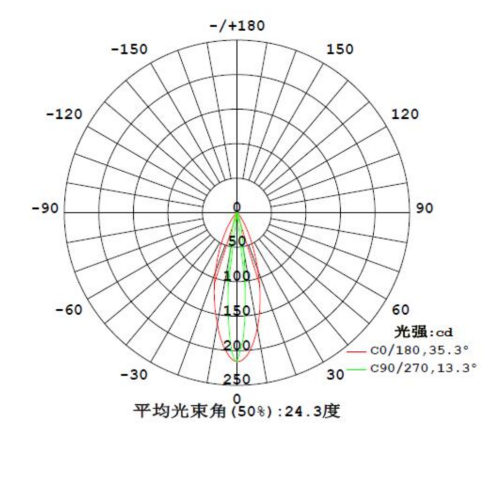

IES

15x40 Degree Acrylic Light Lens Practical Dimmable 22x12mm High Bay

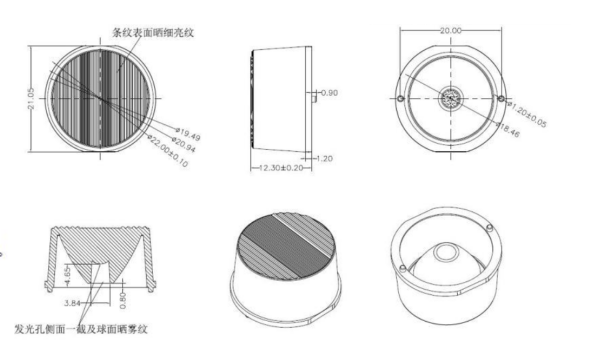

Drawing

15x40 Degree Acrylic Light Lens Practical Dimmable 22x12mm High Bay

15x40 Degree Acrylic Light Lens Practical Dimmable 22x12mm High Bay

Notices

  • Storage: Do not store in dusty place, or expose under corrosive environment.
  • Contact: Do not touch the lens surface with bare-hand. Please use gloves to
    touch the lenses.
  • Cleaning: Clean lenses only if necessary. Use only mild soap, water and
    soft cloth.Do not use any commercial cleaning solvents.

FAQ

1) Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Mixed samples are acceptable.

2) When can I get the quotation?

A: We usually give you an offer within 12 hours after we get your inquiry. But if you want to get the offer ASAP,please call us or email us that we can reply to you in time.

3) What is the lead time?

A:Sample needs about 3-5 days prepared; mass production time needs 7-10 days normally.

4) What are your main products?

A: Our main products are outdoor lenses and indoor lenses .such as:Street &AREA Light lens ,Single lenses,High Bay Light ,ect.
