PIR sensor LED Flood Light 20W EPISTAR for Entrance / Walkway / Lobby
PIR sensor LED Flood Light 20W EPISTAR for Entrance / Walkway / Lobby
PIR sensor LED Flood Light 20W EPISTAR for Entrance / Walkway / Lobby
PIR sensor LED Flood Light 20W EPISTAR for Entrance / Walkway / Lobby
Specifications
Brand Name :
GRANDOL/OEM
Model Number :
GFL-10W-COB-G
Certification :
IEC , CE , ROHS, EMC, LVD, ISO9001:2008
Place of Origin :
Shenzhen, China
MOQ :
100 pcs
Price :
usd6-10/PCS
Payment Terms :
T/T, L/C
Supply Ability :
20,000 pcs/month
Delivery Time :
10-15days
Packaging Details :
16 PCS/62*40*26CM /17KGS/CTN
Light Source :
LED
LED Initial Flux :
2200LM
LED Maintain Flux (After the lens & thermal stabilization) :
1360LM
Power :
20W
Product Name :
LED Flood Light
Beam Angle :
120 degree
CRI (RA) :
72
Application :
Square, Exterior Building, Park, Garden
LEDs Brand :
EPISTAR
Item No. :
GFL-20W-PIR
Working Lifetime :
50,000 hours
Warranty :
3 years
IP Rating :
IP65
Description

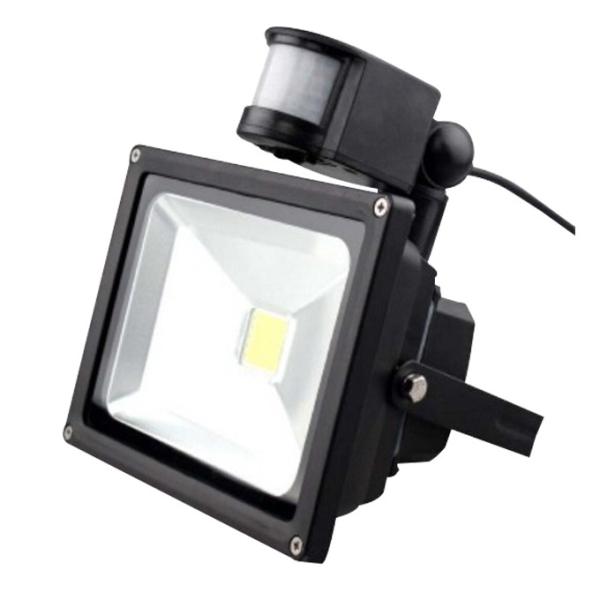

PIR sensor LED Flood Light 20W EPISTAR for Entrance / Walkway / Lobby

FEATURES :

1. LED Flood Light with PIR Montion sensor.

2. 140° sensing Angle

3. Die-Casting Aluminum Body, Tempered glass, Stainless Steel Screws

4. 6-8 metres sensing distance
5. No UV or IR radiation
6. 3-4 meters sensing hight.

PIR sensor LED Flood Light 20W EPISTAR for Entrance / Walkway / Lobby

PARAMETERS:

Optical Parameters LED Power: 1x20W System Consumption 20 W
LED Chips EPISTAR LED Initial Flux 2200 lm
THD <20% LED Maintain Flux (After the lens & thermal stabilization) 1360 lm
Colour Rendering Index (CRI) Ra > 72 Illumination Pure White 6500K Mount Height=2M: 62.15 lux Mount Height=3M: 27.62 lux Mount Height=5M: 9.94 lux Mount Height=6M: 6.91 lux
Light Distribution Curve Rectangular Facular Illuminance Uniformity >80%
Colour Temperature 6000K-6500K Sensing Angle 140°
Electrical Parameters Input Voltage 90-240VDC Sensing Distance 6-8 meters
Power Factor >0.95 output voltage 29-36VDC
Frequency Range 50-60HZ Lamp Efficiency >0.82
Power Efficiency >90% Non Dimmable (Not dimming)
Dimming can be done according to the requirements
Fitting Parameters Colours Black or Grey (Subject to availability) Packing 16 PCS/62*40*26CM /17KGS/CTN
Materials Aluminium Body Tempered glass Stainless Steel Screws Working Environment Temp: -20℃~45℃ Humidity: 10% ~90%
Working Life-span 50,000 hours Storage Environment Temp: -20℃ ~50℃

PIR sensor LED Flood Light 20W EPISTAR for Entrance / Walkway / Lobby

ATTENTIONS:


1. The light’s waterproof grade is IP65, able to withstand rains, but it can’t work under water.
2. The light’s operating at working temperature between -20℃ and 45℃.

3. Make sure the products are out of reach from children,
4. Please don’t install in flammable ,explosive or corrosive circumstances,
5. Cut off power supply before and in installation process. If the product is damaged due to mal-operation, it will invalid the warranty.

Applications:


1. Can be mounted vertically or horizontally, adjustable stand lets you point the light at different angles.
2. Perfect for outdoor project lighting of Building exterior wall, parking lot, stadium, bridge, gardens, square and many other fields.

PIR sensor LED Flood Light 20W EPISTAR for Entrance / Walkway / Lobby

PIR sensor LED Flood Light 20W EPISTAR for Entrance / Walkway / Lobby

PIR sensor LED Flood Light 20W EPISTAR for Entrance / Walkway / Lobby
