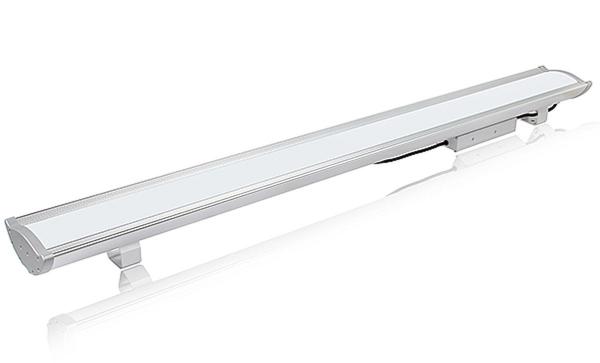

IEC LED Linear Tube 100W High Bay LED Light For Industrial Warehouse Lighting

FEATURES :

1. IP65, Corrosion-proof, water-proof and dust-proof
2. 22500 Lumen max, Low power consumption, high lumens
3. High quality Meanwell driver, Meanwell driver Professional designed, just for LED high bay performing perfectly
4. 5 Years warranty, Longer life lasting around 50,000 hours
5. Powered by Samsung LED
6. The surface is passed through anodic oxidation treatment, having compact and good-looking structure.
7. PF>0.95, good for protecting our eyes with good environment of flicker free.
8. High heat conductivity, low luminous decay, pure light color and no ghosting.

PARAMETERS:

Installation Manual

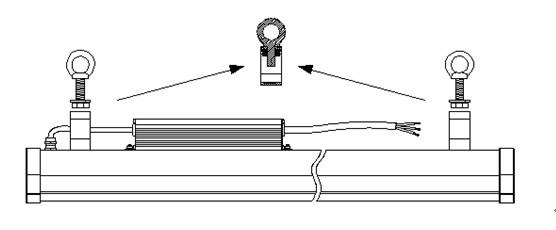

1.Boom(rope) installation

Step1: Fixed installation boom (rope) (User need purchase lifting accessories or ancillary accessories with lamp, please pay attention that the distance could not beyond the scope of product size, the installation height is based on boom length)

Step2: Installing the product rings. Rings available for suspending installation. The fixed part of rings can be adjustable. Please note the coordination with the distance between suspender.

Step 3: Fixing the fixture, with the rings hanged on the hook.

Step 4:Connecting with 90-277VAC,50/60Hz. The product will work normally.

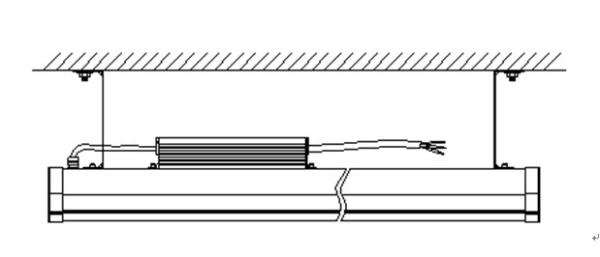

1. Ceiling installation

Step 1: Fixing the installation mounting bracket.(Screws for fixing the bracket available. Please note the installation distance between the bracket is no more than product size range)

Step 2: Fixing the fixture on the bracket. Tighten up the screw when the screw is adjusted to proper position with the bracket.

Step 3: Connecting with 90-277VAC,50/60Hz. The product will work normally.

Product Packaging

1. Paper box packing for single holder
2. Gas with column or foam will be used around the carton to prevent from colliding and vibration
3. Product specification:

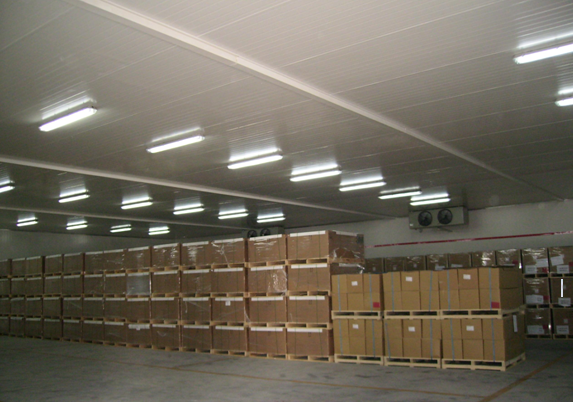

Applications:

1. Can be mounted vertically or horizontally, adjustable stand lets you point the light at different angles.

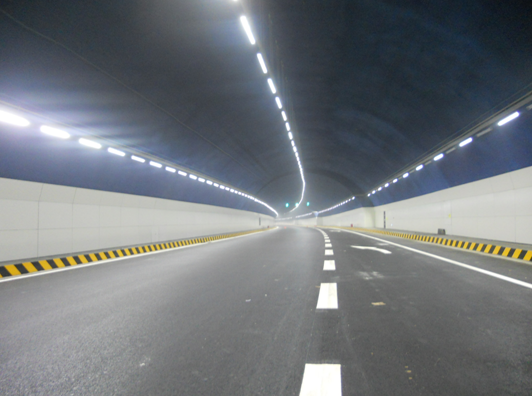

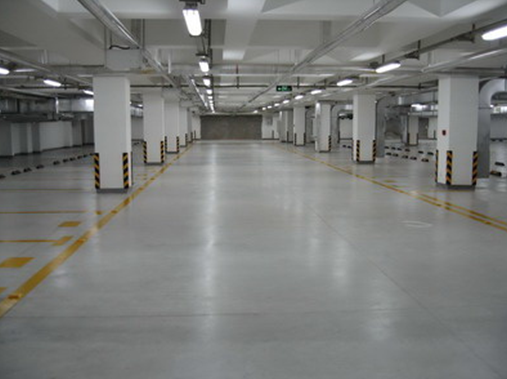

2. Perfect for outdoor project lighting of Building exterior wall, parking lot, stadium, bridge, gardens, square and many other fields.

ATTENTIONS:

1. The light’s waterproof grade is IP65, able to withstand rains, but it can’t work under water.
2. The light’s operating at working temperature between -20℃ and 45℃.

3. Make sure the products are out of reach from children,
4. Please don’t install in flammable ,explosive or corrosive circumstances,
5. Cut off power supply before and in installation process. If the product is damaged due to mal-operation, it will invalid the warranty.
