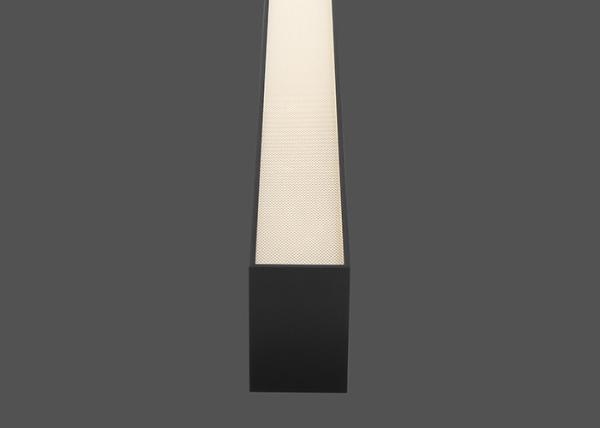

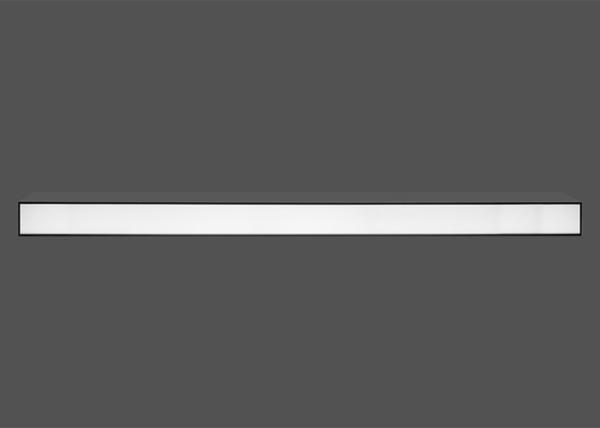

Microprism diffuser linear and efficient heat dissipation IP30 LED linear lighting
Microprism diffuser linear and efficient heat dissipation IP30 LED linear lighting
Microprism diffuser linear and efficient heat dissipation IP30 LED linear lighting
Microprism diffuser linear and efficient heat dissipation IP30 LED linear lighting
Microprism diffuser linear and efficient heat dissipation IP30 LED linear lighting
Microprism diffuser linear and efficient heat dissipation IP30 LED linear lighting
Microprism diffuser linear and efficient heat dissipation IP30 LED linear lighting
Microprism diffuser linear and efficient heat dissipation IP30 LED linear lighting
Specifications
Brand Name :
LED FULGOR
Model Number :
FG03-70100-P
Certification :
CE,RoHS,SAA
Place of Origin :
GUANGDONG,CHINA
MOQ :
50
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5,000 PCS per ,month
Delivery Time :
7-10days
Packaging Details :
Inner Box:QTY: 1pcs Box Size: L132*W10*H8cm Weight: 2.5kg Outside Box:QTY: 6pcs Box size: L137*W21.5*H16.5cm N.W/ G.W: 14kg/ 16.5kg
Light source :
OSRAM/ LUMILEDS (SMD Chips)
Material :
Aluminum+PC Cover
Description

Microprism Anti-Glare Diffuser,Energy Saving Available In Pendant And Surface Mounted LED Linear Llight IP30.

Lamp Body Material: Aluminum Color Temperature(cct): 3000/4000/6000K Selectable
Led Light Source: SMD2835 Ip Rating: IP30
Application: Office,Supermarket,hotel,WAREHOUSE,etc Beam Angle: 90°
Product Name: Led Linear Strip Tube Light Power: 45W
High Light:

led linear light bar fixture,Pendant/surfaced mount

led light fixtures

LED Fulgor 100lm/W Dimming Selectable LED Linear Lighting Fixture SMD2835 IP30

Product Description:

Model Number FG03-70100-p
Brand Name LED Fulgor
Voltage AC100-277V/AC200-240V 50/60Hz
Material Aluminum
LED Source SMD2835
LED Driver Lifud/PHILIPS
Power 45w
dimming No dimming, 0-10Vdimmer, DALI dimmer selectable
Lighting Effect 90lm/w
Color Temperature(CCT) 3000K/4000K/6000K selectable
CRI (Ra>) ≥82
UGR <25
Luminous Flux 4050lm
Housing Aluminum White/Black
Beam Angle 90°
Working Temperatue -20℃ to 55℃
IP Rating IP30
Working Lifetime 60000h
Warranty 3-years
Dimension L1155*W70*H100mm
Packing Size Inner Box: L124.5*W11.5*H8cm Outter Box:L126*W24.5*H26cm 6pcs/CTNS

Details

Microprism diffuser linear and efficient heat dissipation IP30 LED linear lighting

The LED linear light is a high performance, flexible and modular profile system with surface, wall mounted and suspended/pendant options. This highly adaptable linear light fixture adds character to office spaces, classrooms, conference rooms, supermarket and more.

Microprism diffuser linear and efficient heat dissipation IP30 LED linear lighting

Feature:

1. High-end design, high efficiency and energy saving
2. Expandable design with diffuser cover.
3. Dimmer: no dimming, 0-10V dimmer, DALI dimmer optional.
4. High-brightness, no flicker, high-quality lamps
5. Select excellent aluminum materials to make the shell look more beautiful and have excellent heat dissipation.
6. Provide two installation methods: hoisting and surface mounting
7. Application scope: offices, galleries, schools, hotels, restaurant warehouses, shops, markets, etc.

Matters needing attention:

1. Operating temperature: -20℃ ~ 55℃.

2. Avoid strong acid and alkali objects around the working environment.

3. If the working environment is outdoor, please make the butt joint waterproof.

4. Please install the lamp according to the instructions of this user guide.
5. To avoid any injuries from a fallen lamp or electric shock, please do not retrofit this lamp at random.
