Specifications
Brand Name :
LEDFULGOR
Model Number :
FG03-4685-p
Certification :
CE,RoHS,SAA
Place of Origin :
GUANGDONG,CHINA
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000 PCS per ,month
Delivery Time :
8-15days
Packaging Details :
Inner Box:QTY: 1pcs Box Size: L132*W10*H8cm Weight: 2.5kg Outside Box:QTY: 6pcs Box size: L137*W21.5*H16.5cm N.W/ G.W: 14kg/ 16.5kg
Light source :
OSRAM/ LUMILEDS (SMD Chips)
Warranty(years) :
3 years / 5 years selectable
Description

IP30 Anti Glare Pendant And Surface Mounting LED Linear Light Lamp

Lamp Body Material: Aluminum Color Temperature(cct): 3000-6000k Selectable
Led Light Source: SMD2835 Ip Rating: IP30
Application: Office,Supermarket,hotel,WAREHOUSE,etc Beam Angle: 20° 34° 48°
Product Name: Led Linear Strip Tube Light Power: 36W
High Light:

led linear light bar fixture,Recessed mount

led light fixtures

Product Description:

Model Number FG03-4685-P
Brand Name LED Fulgor
Voltage AC100-277V/AC200-240V 50/60Hz
Material Aluminum
LED Source SMD2835
LED Driver Lifud/PHILIPS
Power 36w
dimming No dimming, 0-10Vdimmer, DALI dimmer selectable
Lighting Effect 90-100lm/w
Color Temperature(CCT) 3000K/4000K/6000K selectable
CRI (Ra>) ≥82
UGR <25
Luminous Flux 3240-3600lm
Housing Aluminum White/Black
Beam Angle 20° 34° 48°
Working Temperatue -20℃ to 55℃
IP Rating IP30
Working Lifetime 60000h
Warranty 3-years
Dimension L1132*W46*H85mm
Packing Size Inner Box: L124.5*W11.5*H8cm Outter Box:L126*W24.5*H26cm 6pcs/CTNS

LED Fulgor 110-120lm/W Dimming Selectable LED Linear Lighting Fixture SMD 2835 IP30

Feature:

1. Expandable design with diffuser cover. High-end design, energy saving and high efficiency
2. Dimmer: no dimming, DALI dimmer, 0-10Vdimmer.
3. Selected aluminum material, with excellent heat dissipation, can effectively protect the life of the lamp.
4. High brightness, no stroboscopic, can be extended to better protection for people.


Details

SMD 2835 PC LED linear lamp equipment has good dust resistance and high luminous efficiency Indoor Light Ceiling Lights

With carefully desgin, No screws.

SMD 2835 PC LED linear lamp equipment has good dust resistance and high luminous efficiency Indoor Light Ceiling Lights

Our company specializes in the production of LED lamps. We are committed to providing customers with high-quality services and high-quality products. We have a complete production and sales system.

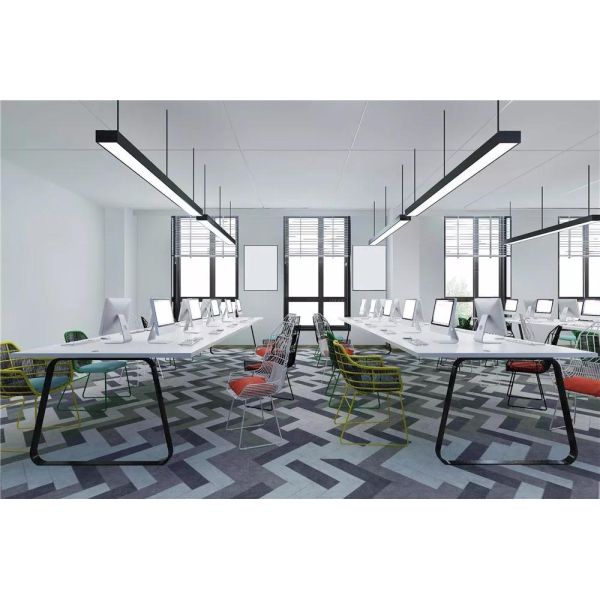

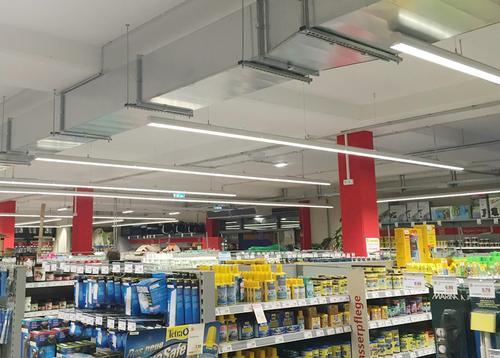

Applications:

office, gallery,restaurant, hotel, school, shop,warehouse, market,supermarket, etc.

SMD 2835 PC LED linear lamp equipment has good dust resistance and high luminous efficiency Indoor Light Ceiling Lights

SMD 2835 PC LED linear lamp equipment has good dust resistance and high luminous efficiency Indoor Light Ceiling Lights

Matters needing attention:

1. Operating temperature: -20℃ ~ 55℃.

2. Avoid strong acid and alkali objects around the working environment.

3. Please install the lamp according to the instructions of this user guide.

4. If the working environment is outdoor, please make the butt joint waterproof.


5. To avoid any injuries from a fallen lamp or electric shock, please do not retrofit this lamp at random.

Routine maintenance:

1: To ensure better lighting, please clean LED lights once a year.
2: Please make sure the power is off before your maintenance work.
3: To avoid any damage to the lamp, please do not use a chemical solvent during routine maintenance.
4: If you need to replace any components or cords of the lamp, please choose those having the same specifications.
