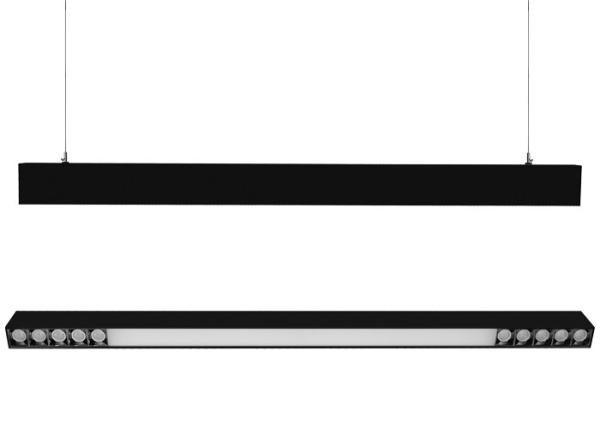

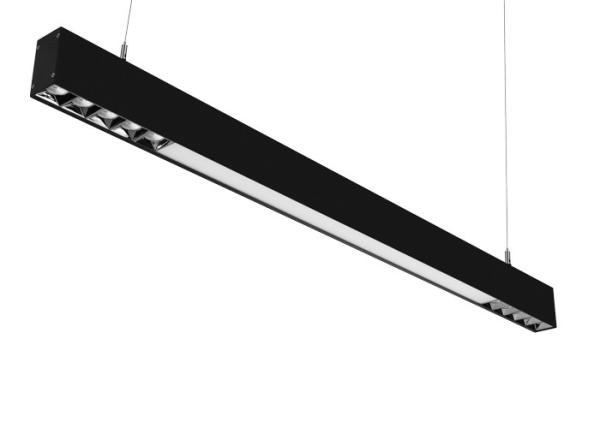

3000K Dimmable Linear LED Light 4000lm -20℃ To 55℃
3000K Dimmable Linear LED Light 4000lm -20℃ To 55℃
3000K Dimmable Linear LED Light 4000lm -20℃ To 55℃
3000K Dimmable Linear LED Light 4000lm -20℃ To 55℃
3000K Dimmable Linear LED Light 4000lm -20℃ To 55℃
3000K Dimmable Linear LED Light 4000lm -20℃ To 55℃
Specifications
Brand Name :
LEDFULGOR
Model Number :
FG03-4678-L4PL
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
30 PCS
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
40,000 pcs per month
Delivery Time :
8 - 12 work days
Packaging Details :
Inner Box: L124.5*W11.5*H8cm Outter Box:L126*W24.5*H26cm 6pcs/CTNS
Ip rating :
IP20
Input voltage(v) :
AC100-277V
Cri (ra>) :
80
Item type :
Tube Lights
Light source :
LED
Warranty(years) :
3
Working lifetime(hour) :
50000
Lamp luminous efficiency(lm/w) :
90
Shape :
Square Shape
Description

3000K 80-90lm/W Surface Mounted Linear LED Lights 4000lm -20℃ To 55℃ IP20

Description:

Model Number FG03-4678-L4PL
Brand Name LED Fulgor
Voltage 220-240VAC 50/60Hz
Material Aluminum
LED Source SMD2835/3030
LED Driver Lifud
Power 48w
dimming No dimming, 0-10Vdimmer, DALI dimmer selectable
Lighting Effect 80-90lm/w
Color Temperature(CCT) 3000K/4000K/5700K selectable
CRI (Ra>) ≥80
UGR 19
Luminous Flux 4000lm
Housing Aluminum White/Black
Beam Angle 15°30°45°beam angle selectable. PC=120°
Working Temperature -20℃ to 55℃
IP Rating IP20
Working Lifetime 50000h
Warranty 3-years
Dimension L1144*W46*H78mm
Packing Size Inner Box: L124.5*W11.5*H8cm Outter Box:L126*W24.5*H26cm 6pcs/CTNS

Feature:


1. High-end design, office led linear light.
2. Extendable design with diffuser cover.
3. Beam angle:15°30°45°beam angle selectable.
4. Dimmer: No dimming, 0-10Vdimmer, DALI dimmer selectable.
5. Low glare less than 20.
6. High Efficiency and energy saving.
7. High brightness without stroboscopic.
8. Featured Aluminum Material with excellent heat dissipation.
9. Easy Installation: suspension, recessed.
10. Applications: office, gallery, hotel, restaurant, school, warehouse, shop, market, etc.

General troubleshooting:


1. If the lamp is installed properly, Please figure out whether the failure is caused by the following situations. If all following resolutions do not work, please stop using immediately and contact professionals or retailers for help.
2. If the lamp does not work, please cut off the power and then check whether the power cord of the lamp is properly connected with the mains supply.
3. If connected properly, please ask a professional to check the input voltage or circuit.

Precautions :

1: Please check the lamp carefully before installing it.
2: Ensure the power is offer before wiring and installation.
3: To help ensure it's longevity, please do not use this lamp in corrosive conditions.
4: If there is any damage to the lamp cord, please cut off the power and stop using it immediately.
5: Please do not retrofit the lamp within the warranty period.
6: To ensure the normal work of the lamp, please use the voltage indicated on the packing.
