Specifications
Brand Name :
LEDFULGOR
Model Number :
FG05-RD-20W
Certification :
CE SAA RoHS
Place of Origin :
Guangdong, China
MOQ :
30 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20,000 PCS per month
Delivery Time :
10 - 15 days
Packaging Details :
13*13*37cm 10pcs/CTNS
Power :
20w
Lighting Effect :
70-80lm/w
LED Source :
Osram 3030
Housing :
Aluminum White/Black
Beam Angle :
20°/34°/48°optional,PC:120°
Input voltage(v) :
220-240
Cri (ra>) :
80
Working lifetime(hour) :
50000
Working temperature(℃) :
-20 - 45
Warranty(years) :
3
Description

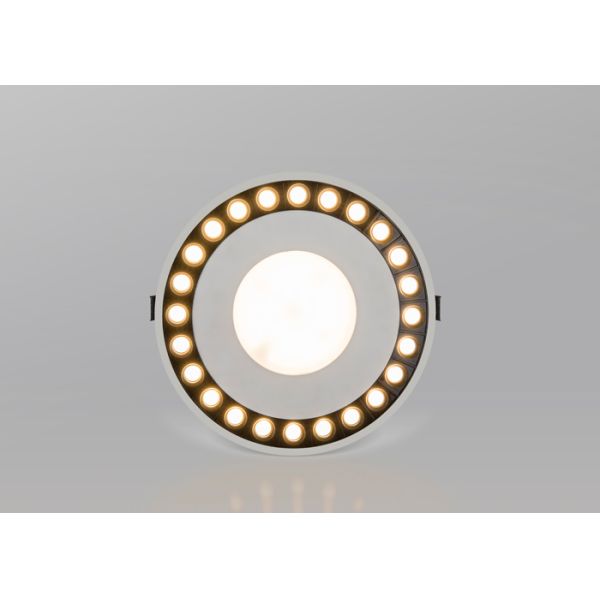

Office IK05 35mm Cri 80 3000K Aluminum White For LED Grille Downlight


Details:

Brand Name: LED Fulgor
Product Details
Product Name grille office lighting Product No. FG05-RD-20W
Product Size φ128*35mm Energy saving A+ or A++
Housing Material Die Casting Aluminum Housing Color White
Power 20 watt Voltage AC200-240V (50/60HZ)
LED Source OSRAM: SMD3030 LED Driver Lifud
Lighting Effect 70-80 lm/w Luminous Flux 1540 lm
Working Temperature -20℃ to 55℃ Beam Angle 20°/34°/48°optional, spotlight:15°
Color Temperature 3000/4000/6000K URG <17
CRI (Ra) >80 SDCM <5
IP Grade IP20 IK Grade IK05
Working Lifetime 50000 hours Warranty 3 years
Dimming
No Dimming
Installation
Installation way Recessed Mounting Cut Out Size Φ120 mm
Product weight
N.W.:441 g/ pieces


Features:

1. The LED Grille downlight is ideally suited to High-level hotels or supermarkets where a directional beam of light is required in multiple directions.
2. Multi-Beam Angle selectable:20°/34°/48°optional, spotlight:15°
3. Long life: LED spotlight length of normal life is 50 to 60 thousand hours; no need for maintenance, saving manpower, and material.
4. Easy to transport: solid light, anti-vibration; not afraid to throw and pressure.
5. Various matching methods can be selected according to different sizes.
6. Die Casting Aluminum Housing with excellent heat dissipation.



Descriptions :

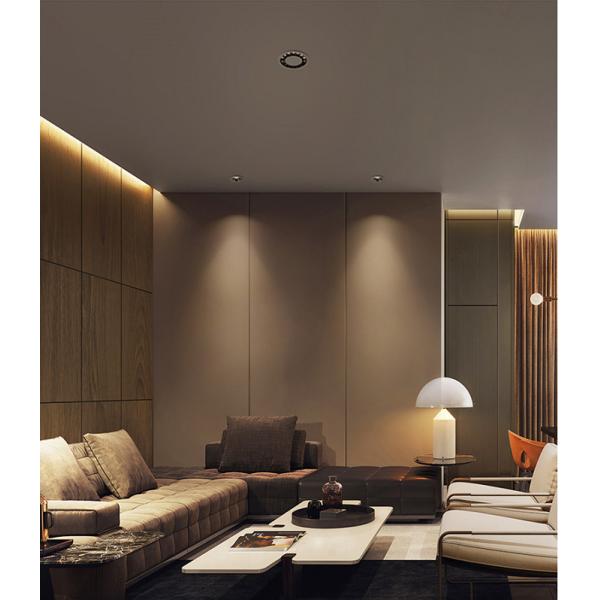

It can be used for most interior lighting projects, like shopping malls, hotels, restaurants, offices, homes, etc.

Using the European style of fashionable process design, high-grade of appearance; with imported high transmitting rate of acrylic and more than 90%, that increase the light efficiency to be more than 90 lm/W.

The light is soft and comfortable, no shadow, color rendering index as Ra≥85, made the object be clearer and brighter, shake-proof, good safety, easy to install; With no stroboscopic constant current power supply, the quality is the more stable and working life of 50000h, no stroboscopic light, protect eyesight.

Embedded downlight, high-quality aluminum die-casting, integrated design, efficient cooling system, and longer service life.
Precise concentrating, good concentrating, using COB chip, it has the characteristics of high brightness, high color rendering, long life, and low light decay.


Installation Caution:

1: Please check the lamp carefully before installing it.
2: Ensure the power is offer before wiring and installation.
3: To help ensure it's longevity, please do not use this lamp in corrosive conditions.
4: If there is any damage to the lamp cord, please cut off the power and stop using it immediately.
5: Please do not retrofit the lamp within the warranty period.
6: To ensure the normal work of the lamp, please use the voltage indicated on the packing.
