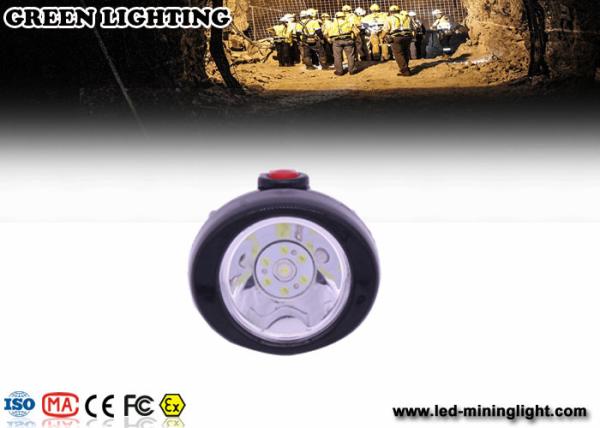

Explosion Proof Cordless Underground Coal Mining Lights for Hard Hats
Features of Model GL2.5-A cordless coal mining light:
1. LED : less energy and super brightness LED.
2. Battery : safety lithium ion battery.
3. Small in size, light in weight, free maintenance, explosion prevention, waterproof, long life.
4. Convenience: light weight can be portable and all-in-one struture which is compatible with the corded lamp charger.
5. Can be customized according to your requirement and special working surrounding.
Main parameter of GT2.5-A as chart:
Model | GL2.5-A |
Light source | one main light and six auxiliary lights |
Rated voltage | 3.7V |
Main light current | 180mA |
Battery capacity | 2.8Ah |
Power of main light | 0.65W |
Luminous | 85lum |
Brightness | 4000lux |
Life span of main lamp | 100000hours |
Battery cycles | 1000cyles |
Working time | 13-15hours |
Weight | 191g |
Watar-proof grade | IP67 |
Certificate | ATEX, CE, FCC, MSHA |
Detailed pictures shown as following:
The miner light suit for:
Coal mines, metal mines and other underground work, hiking, camping, fishing, tunnel projects, marine using, construction and maintance for power, exploration working, highway, railway at night, tapping rubber and also some place needs moving light.
Trouble and troubleshootings:
Trouble description | Trouble analysis | Troubleshooting |
Ligth is not on when pressing the botton | Battery power is used up or automatic opening protection | Charge the light |
Working time is less than 12hours | Battery is not fully charged | Make sure the lamp well connected to the charger when charging |
Longer charging time | The charging points poor contact | Clean the charging points and slot |
Low illuminance | Dirty lens | Clean water wash lens |
You can know a lot as following:
1. IP (Ingress Protection) classifies the degrees of protection provided against the intrusion of the bulb. The first cipher indicates the bulbs resistance to solid intruders (like dust), and the second cipher indicated the bulbs resistance to water.
2. environmental protection : The LED solid state light source,no lead and mercury,no radiation pollution ,after the of recyclable.
3. guarantee time: one year warranty if it has any quality problem.
4. ODM / OEM can be accepted and logo can be customized according to your requirement.
5. LUX : a measurement of how much luminous flux is spread over a given area.
6. Lumen (Lm) : a measure of the total amount power of the light that is emitted at a 1 meter radius at a 360 degree angle from a light source.
7. Safety: Lithium Ion battery have over-chargeable and over-dischargeable and short circuit protection function.
8. GREEN LIGHTING ELECTRONICS CO.,LTD specialized in miner lamp over 10 year since 2006. Quality is our culture. Our product sell all over the world. If you have any question or trouble in miner lamp, you can contact us.
