6.8Ah Rechargeable Li - Ion Battery Semi - Corded Miners Helmet Lamp With 15000Lux Brightness

1. Features for miners helmet lamp

Brightness is up to 15000lux ! Weight is light for portable use.

Fire-resistant, flame retardant, crash-proof, water-proof,

dust-proof, high temperature resistant ,high reliable and durable.

Widely use ! For industrial lighting and fire lighting !

16hours working time, 15000lux strong brightness lighting for longer

lighting distance, long lifespan of 100000hours , IP68 20meters diving water-proof

grade. Special. fire-resistant and steel hardness material for the lamp case,

Professional for miner's safety lighting and fireman lighting.

Special Requested
1), May you provide LOGO us to manufacture.
2), High quality and competitive price .
3), Can according to your requested to design new item that suitable for your market.
4), Above is only for your reference, we can custom make as per your requested.
5), We sincerely welcome foreign friends who have the need of export.

2.Specification of miners helmet lamp

3. Switch of miners helmet lamp

The electric switch is waterproof, it works as follows:

The first press makes the auxiliary lights on

The second press makes the main light on

The third press makes the light off

Battery indication

When the cap lamp is off, press its switch more than 2 seconds. Then the soft light of the main and auxiliary light source will indicate the remaining battery .The indication information is as following:

The indication lasts for 6 seconds; the cap lamp restores to be off.

Note: The cap lamp battery indication is just a general , just for your reference.

4.Charging

4.1.1 Traditional charging way

Connect the single charger to the power supply or switch on the charger rack, the indicator light of the charger turns green.

Connect the cap lamp with the charger. Fix the brass pin (cathode)of the charger into the hole of the cap lamp clip.

Rotate the head lamp 180 degree clockwise, make sure the anode touch of the head lamp is closely connected to the connected metal base (anode).Then the indicator light turns red, which means the lamp is being charged.

When it’s charged by NWB-25A single portable charger or the intelligent chargers racks, the indicator light of the charger keeps flashing from green to red, it meaning the battery has been charged at least 90%. The cap lamp can work more than 13h continuously if charging is stopped at this moment. If the indicator light of the charger flashes green only, then the battery has been fully charged.

Rotate the head lamp 180 degrees anti-clockwise; take it away from the charger.

4.1.2 USB charging way

Connect the “5V,2A” power supply with magnetic USB wire to “AC,100-240V”outlet.

Note: All kinds of USB standard charging interface equipment can be used as a miners cap lamp charger.

Connect the magnetic charging terminal with the USB charging points , make them contact tightly. The cap lamp’s indicator turns red, which means it’s charging.

The cap lamp’s indicator turn green, which means it finishes charging. Take away the USB wire from the cap lamp, and then use the cap lamp.

5.Accept Customized as client's requirements:
Appearance
Strong ID Team, According to client's market positioning, use condition to design product shape, pattern and colour. Recently, customized the semi-corded, corded, cordless with Tracking position and Infrared receiver
Electronic Circuit
Rich Experience Software and Hardware Engineers, PCB's Design and Layout. LED Driver, Charging circuit, Battery Protection Circuit and so on.
Write the request to cap lamps, such as clients company name, LOGO, serie No and user name.

Structural Design

Professional MD Team, provide IP68 Waterproof, ATEX explosion-proof, Dust-proof Products, 10 years work experience in underground field. Very familiar with miner's lamp industry products. MD team will field visit and according the use condition to design the waterproof.
Optical Design
According to LED Luminous Flux, Light cup curve and current to design the Light Beam
How to get samples:
If you want to get samples for testing or promotion, we will charge the samples cost and freight fee,but when you place the bulk order, we will return the samples cost to you.and the sample delivery time is about one week.

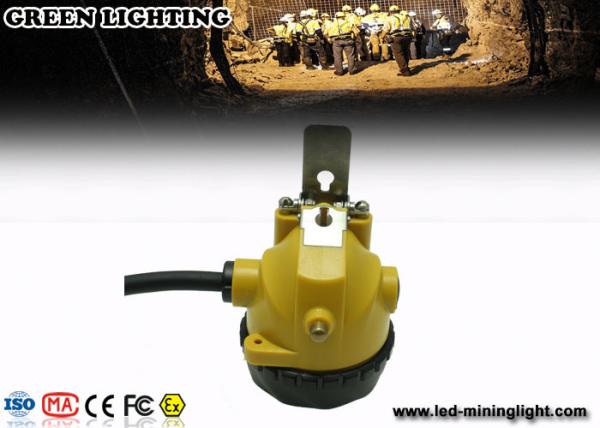

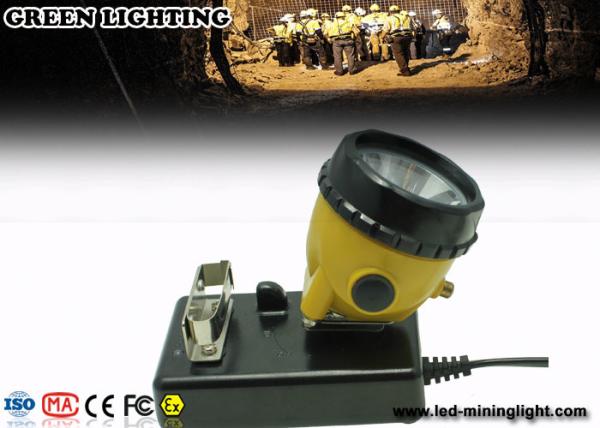

6.Product Image of miners helmet lamp
