6.6Ah Battery Brass Miners Lamps with Blue PC Bezel 10000lux Main LED

1.Features for Brass Miners Lamps
a). 1pc main light and 6pcs auxiliary lights, 10000lux main light.
b). 6.6Ah four pcs of one group 18650 Li-ion battery safety reliable, compact and light weight .
c). 1pc main light and 6pcs auxiliary lights,power of main led is 1.6W, current is 450mA.
d).Explosion-proof and strong impact resistance, waterproof , current shock proof , and impact proof.
e).safety : EXia IIC4(zone1 and CE certified, Our these lamps can be used in any other hazardous locations.
f). charging protection : anti-overcharging , current control , short circuit protection and anti-overheating.

2.Specification of Brass Miners Lamps

3.Usage of Brass Miners Lamps
Widely used in Hunting,automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.

4.Traditional charging way

Connect the single charger to the power supply or switch on the charger rack, the indicator light of the charger turns green.

Connect the cap lamp with the charger. Fix the brass pin (cathode)of the charger into the hole of the cap lamp clip.

Rotate the head lamp 180 degree clockwise, make sure the anode touch of the head lamp is closely connected to the connected metal base (anode).Then the indicator light turns red, which means the lamp is being charged.

When it’s charged by 2A single portable charger or the intelligent chargers racks, the indicator light of the charger keeps flashing from green to red, it meaning the battery has been charged at least 90%. The cap lamp can work more than 13h continuously if charging is stopped at this moment. If the indicator light of the charger flashes green only, then the battery has been fully charged.

Rotate the head lamp 180 degrees anti-clockwise; take it away from the charger.

5. Safety Attention
a) Please Device donot shoot at eyes directly since the strong light will hurt eyes.
b) Before each use , check the functionality of the device.
c) Please do not charge the lamp underground.
d) Please keep the lamp away from fire sources.
e) Please donot disassemble the lamp or repair the battery parts by yourself.
f) Please donot crash and stike the lamp.
g)Donot open or repair the device without using apprapriate electrostatic protection.

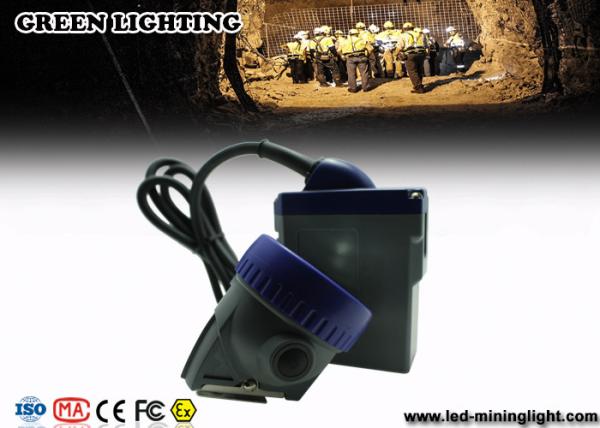

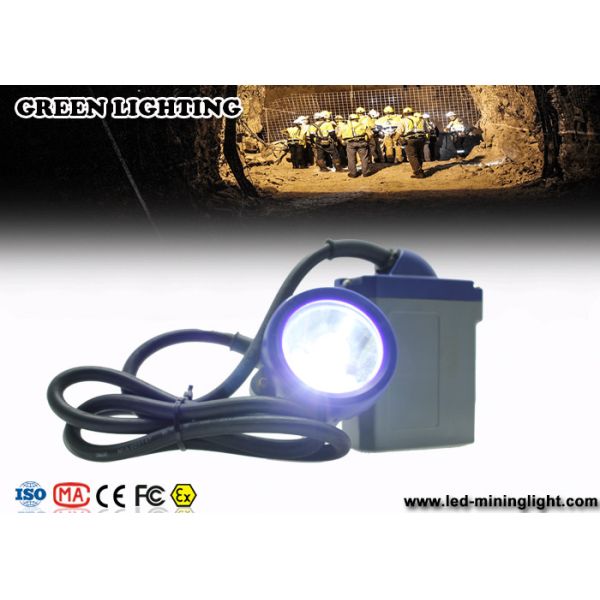

6.Product Image of Brass Miners Lamps

• The LED cap lamp with three lighting modes. You can push on the switch button on lamp head to change from the main lighting source to subsidiary lighting source or to turn off the lamp. You can push more three seconds, open theSOS function.
• In the first time using lamps,pls using our special charger or accepted charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it mean that charger have finished to charging.
