Glass Filled Lock Out Tag Out For Circuit Breakers Nylon PA Material
Glass Filled Lock Out Tag Out For Circuit Breakers Nylon PA Material
Glass Filled Lock Out Tag Out For Circuit Breakers Nylon PA Material
Glass Filled Lock Out Tag Out For Circuit Breakers Nylon PA Material
Glass Filled Lock Out Tag Out For Circuit Breakers Nylon PA Material
Glass Filled Lock Out Tag Out For Circuit Breakers Nylon PA Material
Specifications
Brand Name :
Green Lighting
Model Number :
ZC-D01
Certification :
CE, OSHA
Place of Origin :
Shenzhen china
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
100000 piece in one month
Delivery Time :
sample order at once, bulk order within 15-20 working days
Packaging Details :
20 pcs in a neutral box
Material :
glass-filled nyon
Weight :
7g
Colour :
red
Shackle DIAMETER :
less than 7mm
Free sample :
yes, available
Used in :
Easily Installed with The Aid of a Push Button
Package :
20pcs in a box
Applications :
For Single and Multi-Pole Breakers
Description

Pin Out Standard Effective Nylon PA Miniature Circuit Breaker Lockout

Product Detail:

1. Material: Glass-Filled nylon, can be used to open circuit breaker or close circuit breaker.
2. Fit most existing types of European and Asian circuit breakers.
3. Recommended to use in combination with a padlock for added safety.
4. Easily installed with the aid of a push button.
5. Can take padlocks with a shackle diameter up to 7mm.
6. Available for single and multi-pole breakers.
7. We have tested 750 types of circuit breakers and our MCB lockouts fit most of all.
8. Related MCB lockouts: GL-D02(Pin in Standard), GL-D03(Tie Bar Lockout), GL-D04(Pin Out Wide), etc.

A range of 4 padlockable circuit breaker lockouts designed to fit most modern single and multiple pole miniature circuit breakers. Manufactured from strong nylon, this range of miniature circuit breaker lockouts allows breakers to be locked off individually.

Related Circuit Breaker Lockout:

Model No.

Description
ZC-D01 POS (Pin Out Standard), hole pitch <= 12mm
ZC-D02 PIS (Pin In Standard), hole pitch <= 12mm
ZC-D03 POW (Pin Out Wide), hole pitch <= 20mm
ZC-D04 TBLO(Tie bar Lockout)

Circuit Breaker Lockout Range:

Model No Details
ZC-D01 Miniature Circuit Breaker Lockout, Pin Out Standard
ZC-D02 Miniature Circuit Breaker Lockout, Pin In Standard
ZC-D03 Miniature Circuit Breaker Lockout, Tie Bar Lockout
ZC-D04 Miniature Circuit Breaker Lockout, Pin Out Standard
ZC-D10 Universal Miniature Breaker Lockout, Multi-funcational MCB lockout
ZC-D11 Clamp-on Breaker Lockout, 120-277V 15*13*137.5px
ZC-D12 Clamp-On Breaker Lockout , 480-600V 25.5*17*225px
ZC-D13 Clamp-On Breaker Lockout, 480-600V Oversize Lockout 10.5*8*250px
ZC-D06 Moulded Case Circuit Breaker Lockout, 51mm*25mm*23mm
ZC-D07 Moulded Case Circuit Breaker Lockout, 125mm*63mm*40mm
ZC-D21 Snap-On Breaker Lockout , 120V, 55mm*9mm*21mm
ZC-D31 Plug Lockout , 110V,220V,550V
ZC-D41 Plug Lockout , 110V,220V,550V
ZC-D51 Emergency Stop Lockout , 22mm
ZC-D52 Emergency Stop Lockout , 30mm
ZC-PM01 Penumatic Quick-disconnect Lockout, Fitted with 6.4mm, 9.5mm & 12.7mm screwed joint
ZC-PM11 Air Source Lockout, Available for 8-45mm vales
ZC-PM21 Cylinder Tank Lockout,
ZC-PM31 Gas Cylinder Lockout

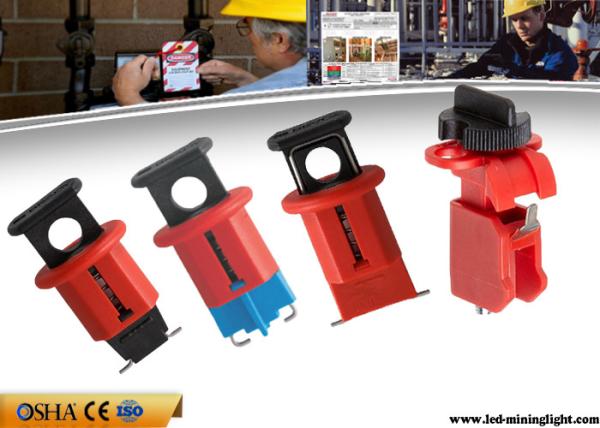

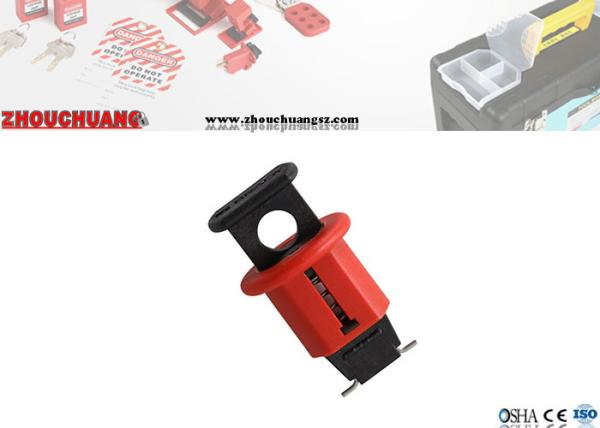

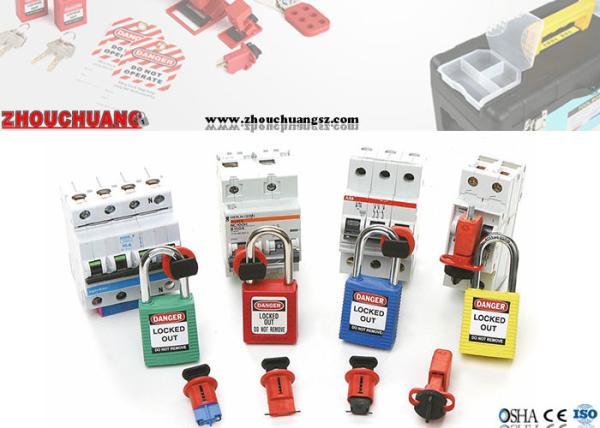

Product Picture:

Glass Filled Lock Out Tag Out For Circuit Breakers Nylon PA Material

Glass Filled Lock Out Tag Out For Circuit Breakers Nylon PA Material
