Specifications
Brand Name :
Green Lighting
Model Number :
GL5LM-A
Certification :
CE/ATEX/EXIBII
Place of Origin :
shen zhen City, China
MOQ :
1pc
Price :
Negotiation
Supply Ability :
5000pcs/month
Packaging Details :
packing by colorful box of unit lamp with single charger
Battery capacity :
6.6Ah
votage :
3.7V
working time :
>20h
LED lifetime :
>5000h
main LED current :
350mA
Brightness :
>10000lux
color of cover head lamp :
white
weight :
500g
waterproof :
IP68
Cable length :
1.65 M
Description

4000 Lux / 6.6ah Waterproof Safety Led Cap Lamp With Li - Ion Battery , Long Work Time

1.Features for miner cap lamp


a). High power LED light source, extra long lifetime (5000hours)
b).18650 Li-ion battery safety reliable, compact and light weight , free of maintenance .
c).Interlligent charging protection : anti-overcharging , current control , short circuit protection and anti-overheating.
d).Explosion-proof and strong impact resistance, waterproof , current shock proof, moisture proof , and impact proof.
e).safety : EXia IIC4(zone1 and zone 2) and CE certified, Our these lamps can be used in any other hazardous locations.
f). Envronment friendly.

2.Specification of miner cap lamp

Item Value Value Value
Model GL5-A GL5-B GL5-C
Light source 1pc main light and 6pcs auxiliary lights 1pc main light and 6pcs auxiliary lights 1pc main light and 2pcs auxiliary lights
Battery capacity 6.6Ah 6.6Ah 6.6Ah
Rated Voltage 3.7V 3.7V 3.7V
Main light current 300mA 450mA 450mA
Power of the main light 1.11W 1.67W 1.65W
Illuminous 144LUM 216LUM 216LUM
Brightness of the main light 4000lux 10000lux 12000lux
Life span for main LED 100000hours 100000hours 100000hours
Battery cycles 1000 cycles 1000 cycles 1000 cycles
Working time 22hours 16hours 16hours
Weight 478g 478g 490g
Water-proof grade IP68 IP68 IP68
Certified CE,ATEX,EXIB II M1 CE,ATEX,EXIB II M1 CE,ATEX,EXIB II M1

3.Product Image

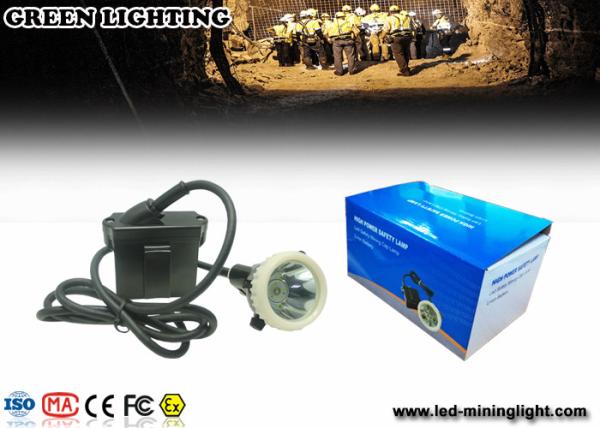

4000 Lux / 6.6ah Waterproof Safety Led Cap Lamp With Li - Ion Battery , Long Work Time

4000 Lux / 6.6ah Waterproof Safety Led Cap Lamp With Li - Ion Battery , Long Work Time

  • The GL5-C is a LED cap lamp with two lighting modes. You can push on the switch button on lamp head to change from the main lighting source to subsidiary lighting source or to turn off the lamp.

4000 Lux / 6.6ah Waterproof Safety Led Cap Lamp With Li - Ion Battery , Long Work Time

Instructions for use

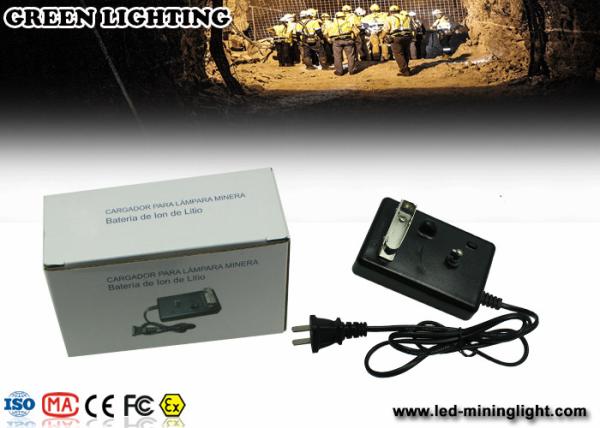

  • In the first time using lamps,pls use our special charger or accepted charging rack to charging lamps firstly.when the lamps are under charging,charger indicated light is RED COLOR,when the charger indicated light turned GREEN COLOR,it mean that charger have finished to charging.
  • To use the cap lamp, you have to let the waistband to go through the waistband ring on battery box and tie it well. Then clip the lamp head on the cap, check the cable and turn the switch on.

Packing box

4000 Lux / 6.6ah Waterproof Safety Led Cap Lamp With Li - Ion Battery , Long Work Time

4.Usage of Coal Mining Lights

Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.

5.Competitive Advantage

  • High power LED light source, extra long lifetime (50000 hours)
  • Li-ion battery, compact and light weight, free of maintenance
  • Intelligent charging protection: anti-overcharging, current control, short circuit protection and anti-overheating
  • With our GL5-C special charger,input 110-250V,50-60HZ,output:4.2V 1000MA
  • Water proof, current shock proof, moisture proof and impact proof

6.Troubles and troubleshootings

Trouble description Trouble analysis Troubleshooting

Light is not on when pressing

the button

Battery power is used up or

Automatic opening protection

Charge the lamp

Working time is less than

12 hours

Battery is not fully charged

Make sure the lamp well

connected to the charger

when charging

Longer charging time The charging points poor contact

Clean the charging points

and the slot

Low illuminance Dirty lens Clean water wash lens

7. Safety warning

a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.

b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety, reliability to work underground.

c) Please do not charge the lamp underground.

d) Please keep the lamp away from fire sources.

e) Please donot disassemble the lamp or repair the battery parts by yourself.

f) Please donot crash and stike the lamp.

g)Please donot replace the structure of the lamp and parts.

8.Aout us

GREEN LIGHTING ELECTRONICS CO.,LTDis an expertised manufacturer of explosion-proof mining lamps which is located in ShenZhen area in china.Our factory has skilled experience in underground working lamps development and production. We focus on the development and innovation, and we pay more attention to great quality. We also have established our own marketing department for foreign sales.
