Double Row IP68 SMD3528 LED Flexible Strip Lights AC220V 3528 or 5050 SMD LED Epistar 2000Lum
Double Row IP68 SMD3528 LED Flexible Strip Lights AC220V 3528 or 5050 SMD LED Epistar 2000Lum
Double Row IP68 SMD3528 LED Flexible Strip Lights AC220V 3528 or 5050 SMD LED Epistar 2000Lum
Double Row IP68 SMD3528 LED Flexible Strip Lights AC220V 3528 or 5050 SMD LED Epistar 2000Lum
Double Row IP68 SMD3528 LED Flexible Strip Lights AC220V 3528 or 5050 SMD LED Epistar 2000Lum
Double Row IP68 SMD3528 LED Flexible Strip Lights AC220V 3528 or 5050 SMD LED Epistar 2000Lum
Specifications
Brand Name :
GREEN LIGHTING
Model Number :
GL-XLM-GS01-220V
Certification :
UL,CE
Place of Origin :
SHENZHEN,CHINA
MOQ :
100 meters
Price :
Negotiating
Payment Terms :
T/T, Western Union,Paypal, MoneyGram
Supply Ability :
5000meters per months
Delivery Time :
3-5 work days for sample order, 15-25 working days for bulk order
Packaging Details :
Outer box size 50X40X40 cm
Color temperature :
5000-6500kelvin
Input voltage :
AC220V
consumption per LEDPower c :
0.22-0.25 Watts
LEDs/M :
144LEDs
Waterproof grade :
IP68
Protection :
Short circuit , Over temperature , Over Voltage , Over current, Surge and surge protection
LED Chip :
Epistar
Colour rendering index CRI :
>80
Dimensions :
10000mm*36mm*7mm
Corlor :
white color, RGB for option
Description

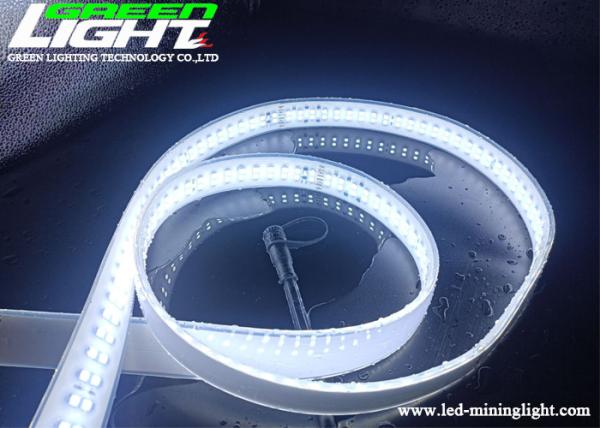

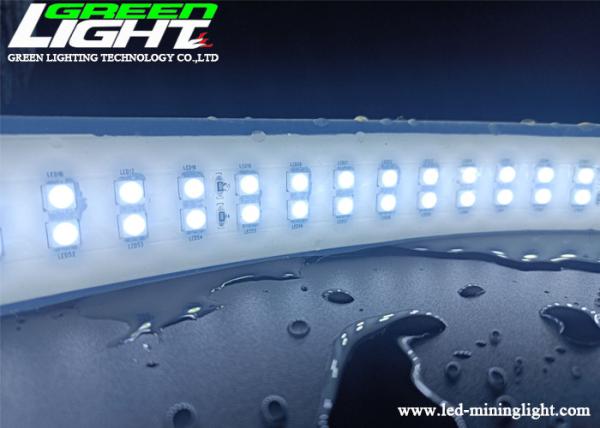

Waterproof grade IP68 Double row LED Flexible light strip with 3528 or 5050 SMD LED adopted

Newly designed for hazardous industrial site, suitable for underground mines, tunneling, commercial and construction industries

Specification of led strip light:

LED Chip Epistar
LED configuration 144LEDs spaced evenly over a meter length
Range fed from both sides 20metres
Recommended fixing height 56 meters
IP Rating IP68
Power consumption per LED 0.25 Watts
Power consumption per meter 12 Watts
Color rendering index CRI >80
Color temperature 50006500kelvin
Luminous flux 2000Lum / m
The voltage on lighting VDC 220V
Temperature for storage and transportation +40℃
Life span 5 years+
Warranty lighting 1 year
Outer covering Food grade silicons
Dimensions mm(length) * mm(width) * mm(height)
Tensile strength + 50KG
Operating temperature 40 / +80 ℃
Relative humidity,%, at a temperature of + 40 ° C till 100%
Dustiness of ambient air no more 1000 mg/m3
Rated supply voltage 220V(preferably switchable)
Lighting angle 180 degree
MTBF 45000 H
Degradation of luminous flux 57% / year
protection against dust and moisture IP68
Protection Short circuit, Over temperature, Over Voltage, Over-current, Surge, and surge protection

Product Details

DOUBLE LAYER CIRCUIT
Double Layer Pure Copper Flexible Circuit Board is Adopted to Ensure Excellent Conductivity and Extremely Long Service Life of the Lamp Strip.

Double Row IP68 SMD3528 LED Flexible Strip Lights AC220V 3528 or 5050 SMD LED Epistar 2000Lum

Double Row IP68 SMD3528 LED Flexible Strip Lights AC220V 3528 or 5050 SMD LED Epistar 2000Lum

Connect Drawing

Double Row IP68 SMD3528 LED Flexible Strip Lights AC220V 3528 or 5050 SMD LED Epistar 2000Lum

Accessories

Power supply

Fixed buckle / Cable tie

Connector

Double Row IP68 SMD3528 LED Flexible Strip Lights AC220V 3528 or 5050 SMD LED Epistar 2000Lum

Product Features

1. Flexible, can be bent into any shape
2. High-quality products, European and US standard
3. 3528 or 5050 SMD LED adopted, high brightness, stable performance.
4. long lifetime,5% attenuation after 2500 hours, lifetime is 80000-100000 hours
5. Energy-saving and environmentally friendly.
6. 5m/roll is the standard package, but the size can be customized
7. Various of LED density optional, e.g.30LEDs/M,60LEDs/M,96LEDs/M. etc.
8. Each unit of 3LEDs can be cut out at regular segments.
9. 3M adhesive attached on the back of PCB, for stick installation.
10. White, warm white, red, green, blue, and yellow color and RGB available.

Application of LED Strip Light


This flexible LED light strip is great for underground mining lighting, cabinet lighting, under-cabinet lighting, toe-kick lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, bias lighting, or for other indoor applications where space is limited.
