Smart LED mining strip lighting solution cuttable Multi-range voltage for different application industrial safety&manage
*-* Introduction:
The strip light use super toughening silica gel soft overmolding process, the outlet end with a mould injection waterproof connector,
waterproof power supply, effectively enhance the waterproof performance of products, LED strip light outsourcing silicone elastomer
with good flame retardancy, and has a certain impact resistant, High brightness with long working time.
This strip light is used for dust, humidity, rain, tremors, compressive environment and under the environment of corrosive gas lighting.
*-* Application:

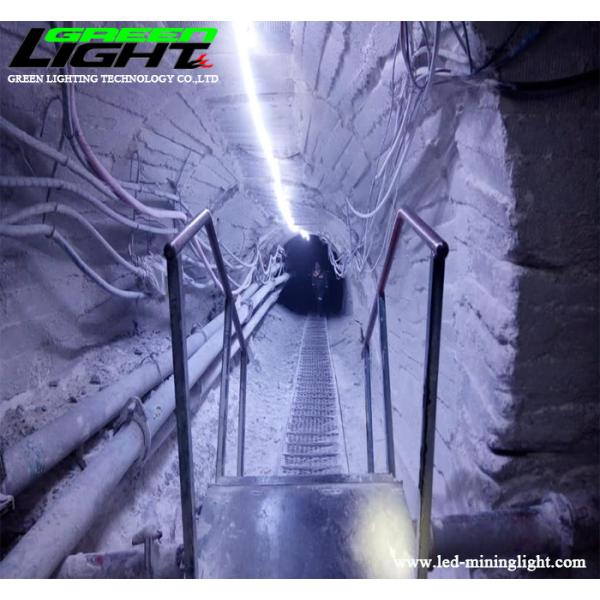

Underground mining & Tunnelling, swimming pool, building decoration, amusement park and theater lighting,
emergency hallway lighting, shopping mall, restaurant, hotel, meeting room and advertisement lighting and decoration,
Architectural decorative lighting,Amusement park, theater, aircraft cabin mood lighting, channel letter lighting.
1. Professional structure design, uniform light emission, no spot, soft light, good color temperature consistency.
2. Using food-grade silicone material, it is resistant to yellowing, high and low temperature, and can be used in harsh environments both indoors and outdoors.
3. Corrosion resistance, resistance to weak acid, alkali and salt. Can be used in extremely harsh environments.
4. Good waterproof performance, waterproof grade IP68.
5. Good flexibility, flexural and tensile resistance, easy to shape, and easy to ship.
6. Good flexural and tensile performance.
7. Once formed, the product is solid and reliable.
8. Plug and play system.
*-* Basic parameters :
Model No. | GL-XLM-1020-15W-72-AC220 |
LED Chip | Epistar |
LED configuration | 72 LED's spaced evenly over a metre length |
Range fed from both sides | 20 metres |
Recommended fixing height | 5 - 6 Metres |
IP Rating | IP68 |
Power Consumption per LED | 0.25 Watts |
Power Consumption per Metre | 15 Watts |
Colour Rendering Index CRI | > 80 |
Colour temperature | 4500-10000 Kelvin |
Luminous | 2000lum/m |
Voltage on lighting VDC | AC210-230V |
Supply voltage for power controllers VAC | 85 - 265VAC |
Light maintenance | 15%-20% Drop over 4 years |
Lifespan | 5 Years |
Warranty Lighting | 1 Years |
Outer covering | Food grade silicone |
Dimensions | *20mm(width) *10mm(height) |
Tensile strength | +-50KG |
Operating temperature | -40℃ to 120℃ |
Protection | Short Circuit, Over Voltage, Over temperature, Over Current, Dust and Moisture protection against IP68. |

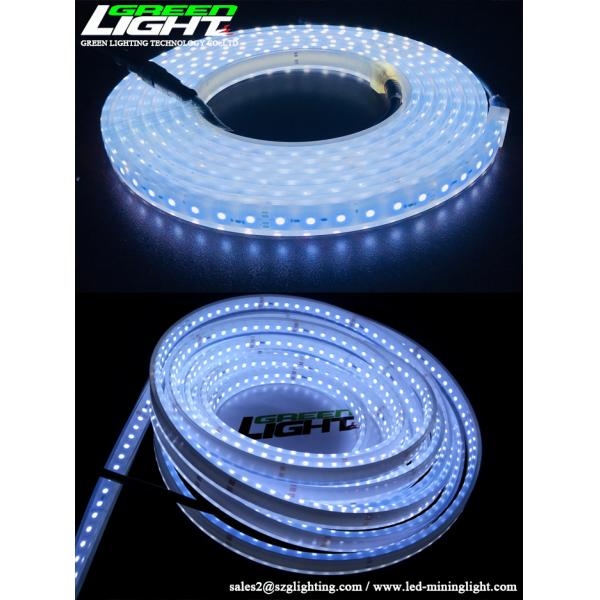

*-* Product & Preview:
*-* Advantages:
Our plug and play system
Conventional lighting requires separate power and a wired connection to every lamp, needing the expertise of electricians.
This becomes labour-intensive and costly when running many meters of lighting. The GLT LED Strip Lighting plugs into an existing power source using a power supply which then connects to one end of the LED strip.
Maintenance-free. Easy to repair.
Damage to lighting through routine underground activities happens. When a conventional lamp is damaged, it results in loss of illumination over many meters – making the affected area a safety hazard until repaired by a qualified electrician.
Should a section of the GREEN LIGHTING strip light be damaged, only this section loses light.
The remaining portion of the strip continues to provide illumination – allowing for a safer environment.
Additionally, damaged sections can be replaced in 8" strips – making it a quick and cost-effective fix.
• Intelligent temperature management, sensors monitor LED temperature and if safe parameters are exceeded the affected LED’s are automatically dimmed until safe temperatures are restored.
• Intelligent voltage surge management, restorable resistors limit overcurrent and overvoltage situations.
• AC to DC convertors, miniature voltage convertors.
• Short circuit protection, in the case of short circuit the power is isolated until the circuit is normalized.
*-*Introdution and advantages of GREEN LIGHTING:
GREEN LIGHTING assumes to offer most competitive price with good quality and punctual delivery to satisfy our valued customers.
Reasonable price, reputation innovation, high-quality service, strict quality control processing make us approved by global customers.
Top quality material
1) CREE led: advanced cree led
2) Germany Bayer PC material make the lamps durable, feel good
3) Panasonic or ATL battery: imported from Japan, it is applied in Apple notebook
R & D
1) GREEN LIGHTIN has built a team of 10 qulified engineers to service all the customers with products development, innovation, solution and technical assitant.
2) Every year we invest 10% annual turnover in our R&D.
*-* Q & A:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample order needs 3-7days, bulk order needs 25-45days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ is 200pcs.(Depends on different type battery/battery pack)
Q: 4. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 5. How to make this payment?
A: TT, Paypal, Western Union.
Q: 6. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products, technical support all the time.
Q: 7. Do you accept OEM/ODM?
A: Yes, it’s available.
*-* Heavy duty led strip lights single white color use for underground mining and tunneling worksite lighting, good quality and high performance from GREEN LIGHTING TECHNOLOGY CO.,LTD factory, welcome to contact me (Jeanne) for more information!
