350mA 10000lux 6.6Ah Rechargeable Coal Miner Lights

Advantages for Model GL5/8-D Underground Miners Helmet Lamp

1. With a low power warning function for safety lighting.

2. American CREE LED as the main light source, and 6 pcs auxiliary light.

3. Full brightness with lighting working up to 18hours; 10000lux.

4. Aluminum charger with MCU controlled system.

5. CE/Exi approved.

6. Silicon button cap with good touch.

7. Excellent appearance and good processing.

8. Support USB charging.

Main Parameter of Two Series of Underground Miners Helmet Lamp

4.Usage of Underground Miners Helmet Lamp

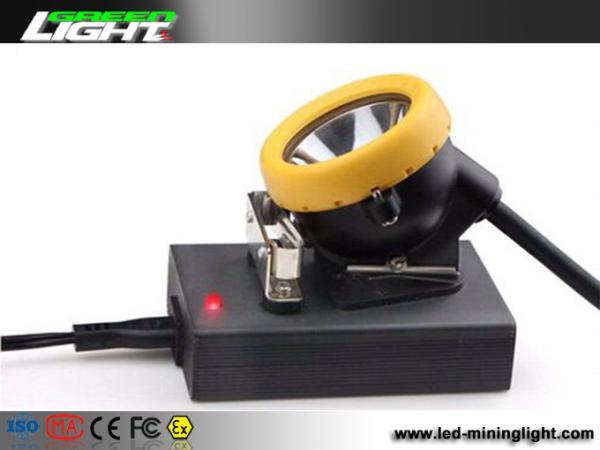

4.1 Charging

(1).Connect the single unit charger to the power or switch on the charger rack, the indicator light of the charger turns green.

(2).Put the KL5LM cap lamp connect with the charger. Fix the brass pin (cathode) of the charger with the hole of the cap lamp clip united parts.

(3).Rotate the head lamp for 180 degree clockwise, make sure the anode touch point of the head lamp closely connect to the connected metal base(anode), and then the indicator light turns red which means the lamp is in charging.

(4).When the indicator light of the charger keep flashing from green to red, it means the battery is at least 90% charged. The KL5LM can work for more than 14h continuously if stop charging at this moment.

(5).If the indicator light of the charger flashes at green only, then the battery is fully charged.

(6).Rotate the head lamp for 180 degree anti-clockwise, take it from the charger for usage.

(7).The matched chargers for KL5LM are NWB-25 and series fast intelligent charger racks of NWCR-12, NWCR-24,NWCR-36, NWCR-60 and NWCR-102. Charging time is within 5hours.

4.2 Widely use

Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.

5.Competitive Advantage

• High power LED light source, extra long lifetime (50000 hours)
• Li-ion battery, compact and light weight, free of maintenance
• Intelligent charging protection: anti-overcharging, current control, short circuit protection and anti-overheating
• With our GL5-B special charger,input 110-250V,50-60HZ,output:4.2V 1000MA
• Water proof, current shock proof, moisture proof and impact proof

6.Troubles and troubleshootings of Underground Miners Helmet Lamp

7. Safety warning

a) Please donot shoot at eyes directly while the lamp is working since the strong light will hurt eyes.

b) Please do not disassemble the cap lamp, otherwise it maybe cause potential troubles related to safety, reliability to work underground.

c) Please do not charge the lamp underground.

d) Please keep the lamp away from fire sources.

e) Please donot disassemble the lamp or repair the battery parts by yourself.

f) Please donot crash and stike the lamp.

g)Please donot replace the structure of the lamp and parts.

8.About us

GREEN LIGHTING TECHNOLOGY CO.,LTDis an expertised manufacturer of explosion-proof mining lamps which is located in ShenZhen area in china.Our factory has skilled experience in underground working lamps development and production. We focus on the development and innovation, and we pay more attention to great quality. We also have established our own marketing department for foreign sales.

9.FAQ OF IP68 Waterproof Rechargeable Led Light

Q1.Can I have a sample order for led light?

A:Yes,we welcome sample order to test and check quality .Mixed samples are acceptable .

Q2.What about the lead time?

A:Sample need 3-5 days,mass production time needs 1-2 weeks for order quantity more than

Q3.Do you have any MOQ ilmit for led light order?

A:A low MOQ.1PC for simple checking is availble.

Q4.How do you ship the goods and how long does it take to arrive?

A:We usually ship by DHL,UPS,FEDEX or TNT.It usually takes 3-5 days to arrive.airline and sea shipping also optional.

Q5.How to proceed an order for led light?

A:Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formel order.

Fourthly we arrange the production.

Q6.Is it ok to print my logo on led light product?

A:Yes.Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Do you offer guarantee for the products?

A:Yes.We offer one year warranty to our products.

Q8.How to deal with the faulty?

A:Firstly,our products are produced in strict quality contral system and the defective rate will be less than 0.2%.Secondly,during the guarantee period,we will send new lights with new order for small quality for defective batch products,we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
