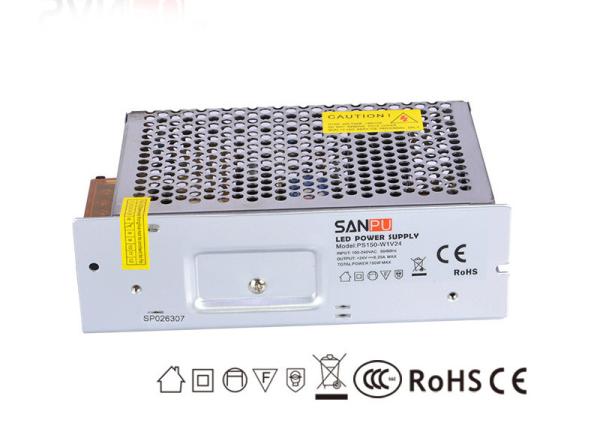

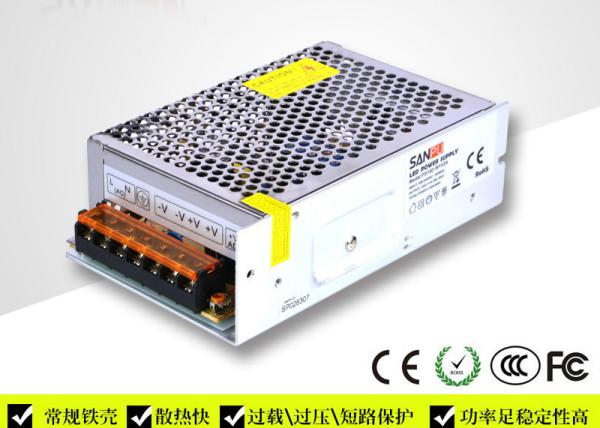

Switch Mode Neon Light Power Supply 150W Power Strong Metal Housing
Switch Mode Neon Light Power Supply 150W Power Strong Metal Housing
Switch Mode Neon Light Power Supply 150W Power Strong Metal Housing
Switch Mode Neon Light Power Supply 150W Power Strong Metal Housing
Switch Mode Neon Light Power Supply 150W Power Strong Metal Housing
Switch Mode Neon Light Power Supply 150W Power Strong Metal Housing
Switch Mode Neon Light Power Supply 150W Power Strong Metal Housing
Switch Mode Neon Light Power Supply 150W Power Strong Metal Housing
Specifications
Brand Name :
Vasten
Model Number :
PS150-W1V12
Certification :
CE & RoHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation US$/Meter
Payment Terms :
T/T, Paypal, Western Union
Delivery Time :
3-5 days
Packaging Details :
0.4Kg/pcs ,50pcs/20Kg,159*99*49(mm)
Built-in :
Built-in EMI filter
Efficiency :
81%
Output Frequency :
47--63HZ
Certificates :
CE ROHS
input :
International AC input
power :
150w
Description

CE ROHS Metal 150W Switch Mode LED Power Supply

Specifications

Metal 150W switch mode led power supply
International AC input
100% full load burn-in test
Built-in EMI filter

Features:

1. Metal 150W switch mode led power supply.

2. The product consists of indoor type and outdoor type.

3. Convenient wiring.

4. Abnormality protection function : short circuit ,over load ,over voltage,over temp .

5. Various types for your choice:Constant Voltage Power supply and Constant Current Power supply.

6. Quality assurance: 2 years warranty.

7. High efficiency .

8. International AC input .

9. Built-in EMI fiter .

10.100% full load burn-in test .

PS150-W1V
MODEL 5V150W 12V 150W 24V150W 48V150W
OUTPUT DC VOLTAGE 5V 12V 24V 48V
RATED CURRENT 30A 12.5A 6.5A 3.2A
CURRENT RANGE 0~30A 0~12.5A 0~6.5A 0~3.2A
RATED POWER 150W 150W 150W 150W
RIPPLE& NOISE (MAX.)NOTE2 100mV 120mV 120mV 200mV
VOLTAGE TOLERANCENOTE3 ±1% ±1% ±1% ±1%
SETUP , RISE TIME 200ms/220VAC 50ms/220VAC
HOLD UP TIME(Typ.) 20ms/220VAC
INPUT VOLTAGE RANGE 85~132VAC/170~264VAC
FREQUENCY RANGE 47~63Hz
POWER FACTOR(Typ.) PF>0.6/220VAC
EFFICIENCY(Typ.) 81% 84% 85% 87%
AC CURRENT(Typ.) 3.2A/115VAC 1.6A/230VAC
INRUSH CURRENT(Typ.) COLD START 20A/115VAC 40A/230VAC
PROTECTION Short circuit Protection type : recovers automatically after fault condition is removed
Over load 105~135% hiccup mode , auto-recovery
Over voltage 115%~135% Cut off the output , auto-recovery
ENVIRONMENT WORKING TEMP -20°C~ +60°C
WORKING HUMIDITY 20%~90%RH
STORAGE TEMP , HUMIDITY -40°C~+85°C,10%~90%RH
SAFETY &EMC SAFETY STANDARDS CE,ROHS
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
EMC Test Standards Conform to EN60950 GB4943 UL60950 Safety standards
Conform to GB9254 EN55022 EMC standards
NOTE 1.All paraments NOT specially mentioned are measured at 220VAC input ,reted load and 25°C of ambient temperature
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 10 uf parallel capacitpr .
3.Tolerance : includes set up tolerance , line regulation and load regulation .

Switch Mode Neon Light Power Supply 150W Power Strong Metal Housing
