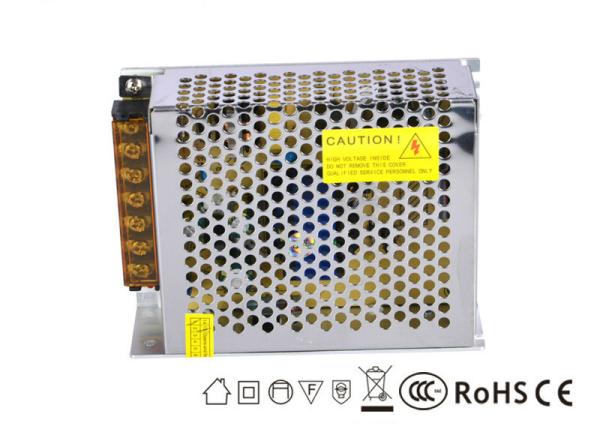

ROHS DC 24v Switch Mode Power Supply , Neon Light 24v Smps Power Supply
ROHS DC 24v Switch Mode Power Supply , Neon Light 24v Smps Power Supply
ROHS DC 24v Switch Mode Power Supply , Neon Light 24v Smps Power Supply
ROHS DC 24v Switch Mode Power Supply , Neon Light 24v Smps Power Supply
Specifications
Brand Name :
Vasten
Model Number :
PS120-W1V12
Certification :
CE & RoHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation US$/Meter
Payment Terms :
T/T, Paypal, Western Union
Delivery Time :
3-5 days
Packaging Details :
93PCS/Carton CTN Size: 43cm*28cm*25cm
input :
110 ac
Life span: :
50,000H
warranty :
Two years
packing: :
60pcs/21.6kg
certificates: :
CE, ROHS
MOQ: :
negotiable
Description

1. 12v dc regulated power supply manufacturers, suppliers and exporters

2. Protections: short circuit/ over load/ over voltage/ over temp

3. Conform to EN60950 GB4943 UL60950 Safety standards

4. Conform to CB9254 EN55022 EMC Standards

5. High quality with competitive price

6. Suitable for any where in the world

7. Built-in EMI filter with tiny ripple

8. Two years warranty

9. Life span: 50,000H

  • material: the metal standard
  • Size: 129*98*40mm
  • weight: 0.36Kg
  • packing: 60pcs/21.6kg
  • certificates: CE, ROHS
  • MOQ: negotiable

AC input voltage range 85~132VAC 170~264VAC 47~63Hz
Input current 2.8A/110V 1.4A/230V
AC inrush current Cold-start current 20A/115V 40A/230V
Leakage current <2mA/240VAC
DC adjustable range ±10% rated output voltage
Over load protection 105~135% hiccup mode, auto-recovery
Over-voltage protection 115~135% cut off the output, auto-recovery
Setup, rise, hold up time 200ms, 50ms, 20ms
Withstand voltage

I/P- O/P: 1.5KVAC 1 minute

I/P- FG: 1.5KVAC 1 minute

O/P- FG: 0.5KVAC 1minute
Working temperature -20 °C ~+60°C, 20%~90%RH
Weight/ packing/ size 0.36Kg, 60pcs/21.6Kg, 129*98*40(mm)
Model Output Error Range Efficiency
PS120- W1V5 5V 0~30A ± 2% 100mv 81%
PS120- W1V12 12V 0~12.5A ± 1% 120mv 84%
PS120- W1V15 15V 0~10A ± 1% 120mv 84%
PS120-W1V24 24V 0~6.5A ± 1% 120mv 85%
PS120- W1V27 27V 0~5.6A ± 1% 120mv 86%
PS120- W1V48 48V 0~3.2A

± 1%

 200mv 87%
