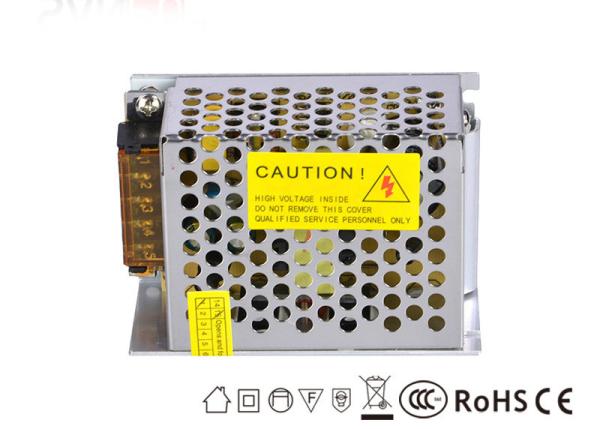

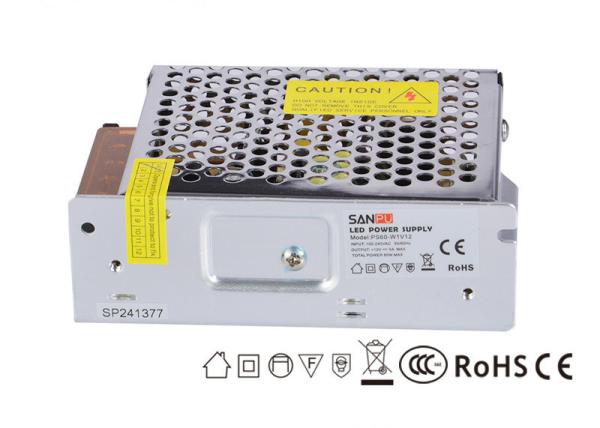

AC To DC Neon Light Power Supply Adapter 60W Power Fanless LED Driver
AC To DC Neon Light Power Supply Adapter 60W Power Fanless LED Driver
AC To DC Neon Light Power Supply Adapter 60W Power Fanless LED Driver
AC To DC Neon Light Power Supply Adapter 60W Power Fanless LED Driver
AC To DC Neon Light Power Supply Adapter 60W Power Fanless LED Driver
AC To DC Neon Light Power Supply Adapter 60W Power Fanless LED Driver
Specifications
Brand Name :
Vasten
Model Number :
PS60W-W1V12
Certification :
CE & RoHS
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiation US$/Meter
Payment Terms :
T/T, Paypal, Western Union
Delivery Time :
3-5 days
Packaging Details :
93PCS/Carton CTN Size: 43cm*28cm*25cm
Description

60W Adapter 12v 5A 110-220v AC to 12V DC Power Supply smps Adapter Fanless LED Driver

60w single output power supply
1.output power:: 60w 12v
2.constant voltage
3.ce rohs approved

60w single output power supply

Notice:

a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competitive price .
d.If need samples, Kindly contact us
e.2 years warranty

Products Features

1.universal AC input

2.Protections: shortcuit, over load, over temp, over voltage

3.Build-in EMI filter with tiny ripple

4.100%full load burn-in test

5.Small volume high-efficiency

6.Conform to EN60950 GB4943 UL60950 safety standards

7.Conform to GB9254, EN55022,EMC standards

Parameter

AC input voltage range 85~264VAC
Input current 1.8A/110V, 0.9A/230V
Input frequency 47~63Hz
Inrush current cold start, 36A/230V
Input leakage current < 1mA/240VAC
Output overload protection 105~135%, hiccup mode, auto recovery
Withstand voltage I/P-O/P: 1.5KVAC/1min, I/P-F/G: 1.5KVAC/1min, O/P-F/G: 0.5KVAC/1min
water level IP20
operating temp -20°C ~+60°C
Operating humidity 20%~90%
packing 80pcs/19.2kg
size 111*78*36
weight 0.24kg/pcs

60w power supplies

Model No. DC Output Rated Voltage Range Efficiency
Power Tolerance
PS60W-W1V5 5V 0~12A 60W ± 2% 80mV 75%
PS60W-W1V12 12V 0~5A 60W ± 1% 100mV 80%
PS60W-W1V15 15V 0~4A 60W ± 1% 100mV 80%
PS60W-W1V24 24v 0~2.5A 60W ± 1% 150mV 84%
