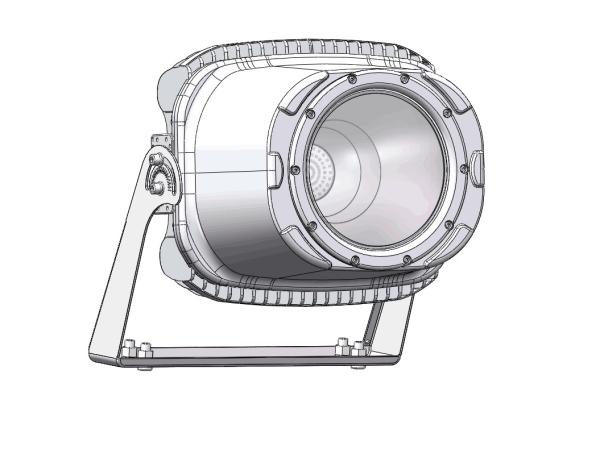

SAA Led High Mast Light 60000lm 500W Industrial Led Flood Lights
SAA Led High Mast Light 60000lm 500W Industrial Led Flood Lights
Specifications
Place of Origin :
Shaanxi, China
Brand Name :
Razorlux
Model Number :
RGL2-500P
Certification :
ce, LVD, RoHS, Saa, UL
Packaging Details :
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*560mm
3.One 20'' Container can accept 250 Units
Price :
$837.00/Pieces
Light Source :
LED
Lamp Luminous Flux(lm) :
60000lm, 60000lm
Working Temperature(℃) :
-40-60, -40 - 60
Product Name :
CE SAA Approved High Power LED 500W LED High Mast Lamp for Airport Lighting
Warranty :
5 Years
Housiong Material :
Aluminum
Working Life :
50000
IP Class :
IP 65 (Upgradeable to IP 67)
LED Chip :
SAMSUNG
Description

CE SAA Approved High Power LED 500W LED High Mast Lamp for Airport Lighting

Main Features

1. 80% lumen maintenance over 50,000hours

2. Wide Power range: 500W

3. 110-480Vac input voltage without additional adapter

4. Patent Built-in Serge Protection.

5. Top chips high efficacy 120lm/w with meanwell driver

6. IP67 waterproof, IK10 impact proof

7. Neutral Salt Spray Resistance

8. Anti-Corression power coating surface treatment

9. Stainless steel brackets material.(Upgradable to SS316)

10. 0-10VDC, DALI and wireless control available

11. DLC, TUV CE RoHS, CB, SAA, LM79 listed

12. High uniformity & color rendering index

Most existing high mast lighting fixture utilize high intensity discharge (HID) lamps such as high pressure sodium (HPS) or metal halide (MH).

Maintenance Costs

Maintenance costs are often a big concern for industrial site lighting applications such as high mast lighting. In addition to the potential lamp lifetime concerns,

high mast fixtures can easily cause interference with the day to day activities of customers or employees when changing out a lamp or a ballast.

It can easily cost up to $2,000 in labor and material to maintain a single exterior HID high mast fixture over the course of three years.

Model RGL2-500P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

 60000lm
Dimension (mm) 466*388*487
LEDs 450W
Power Driver 50W
Consumption Total 500W
Replace HID Lamp 1000~2000W
Net Weight 19kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)
IK Class

IK 10
Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 5 years

Lighting Distribution:


For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

Application Projects

Packaging & Shipping

Model

G.W

Genius II Compact 500W P Series

19KGS

Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.

Quality Control - Testing Equipments:

For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.

Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.


Razorlux Service:

1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome

Trade Shows

Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018

Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018

2015 LED Expo in Den Bosch, Netherland

2016 Strategies in Light in Las Vegas, U.S.A

2016 IIDEX in Toronto, Canada
